Outer Rear View Mirror: Components

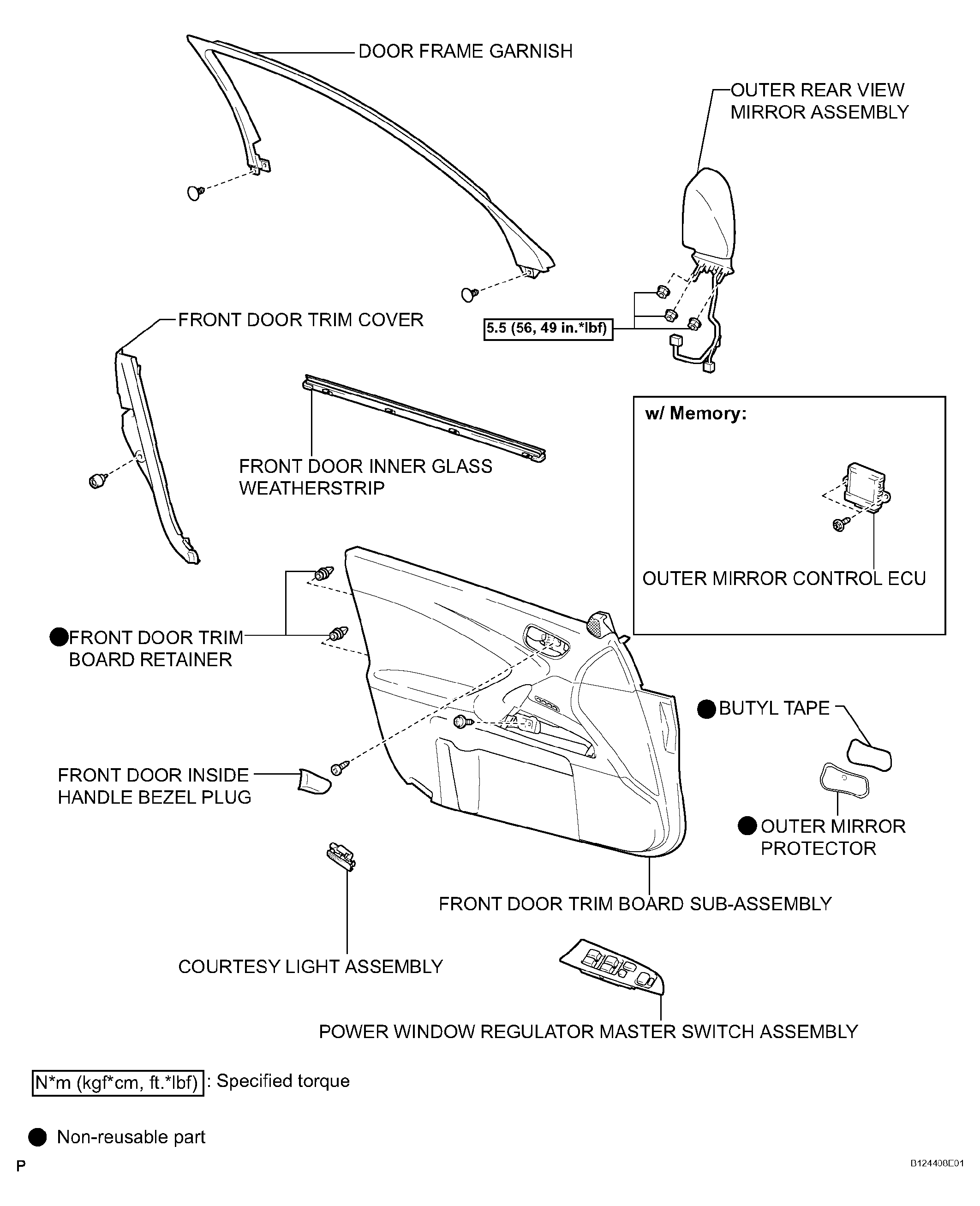

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G04050845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
