Outer Rear View Mirror: Installation

INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
1. Engage the clamp to install the outer rear view mirror assembly.

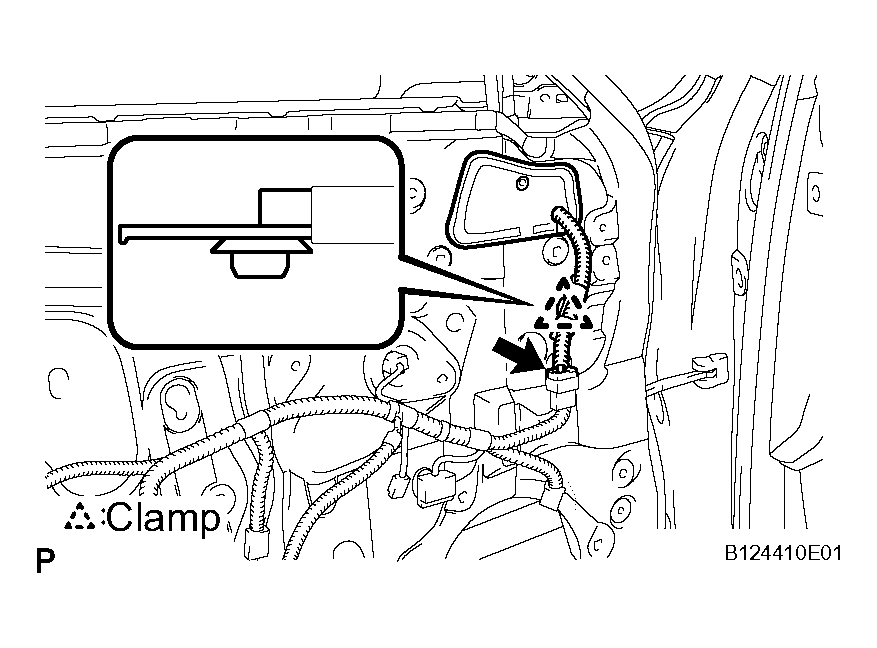

  Fig 1: Identifying Outer Rear View Mirror Assembly Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the outer rear view mirror assembly with the 3 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

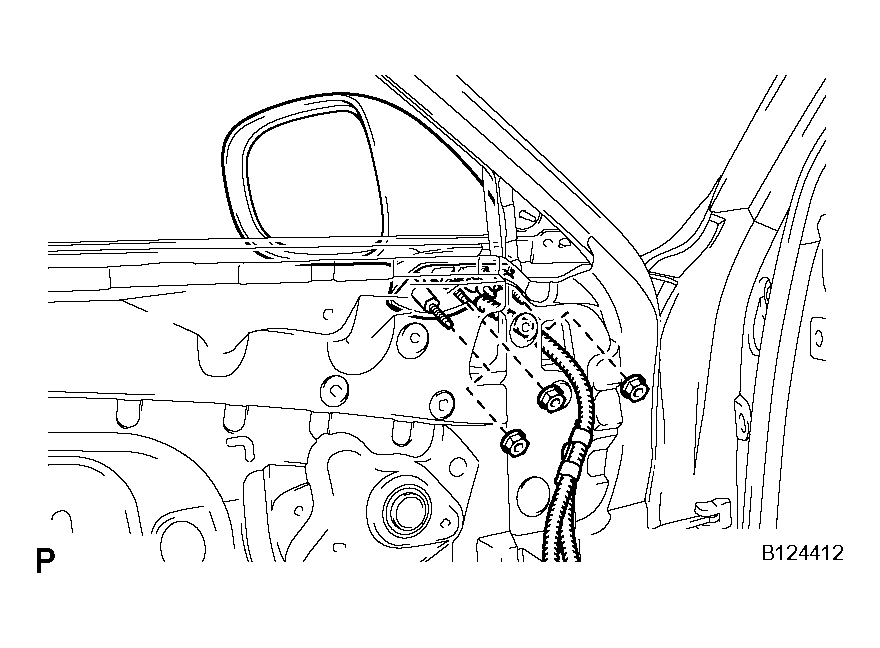

  Fig 2: Identifying Outer Rear View Mirror Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER MIRROR PROTECTOR
1. Apply butyl tape.
2. Install a new outer mirror protector.

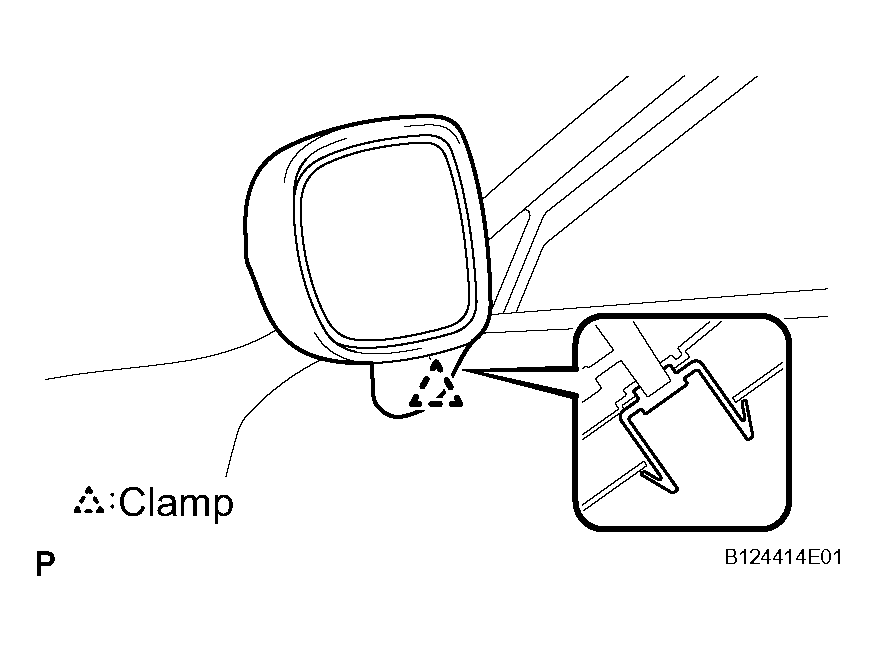

  Fig 3: Identifying Outer Mirror Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector and engage the clamp.

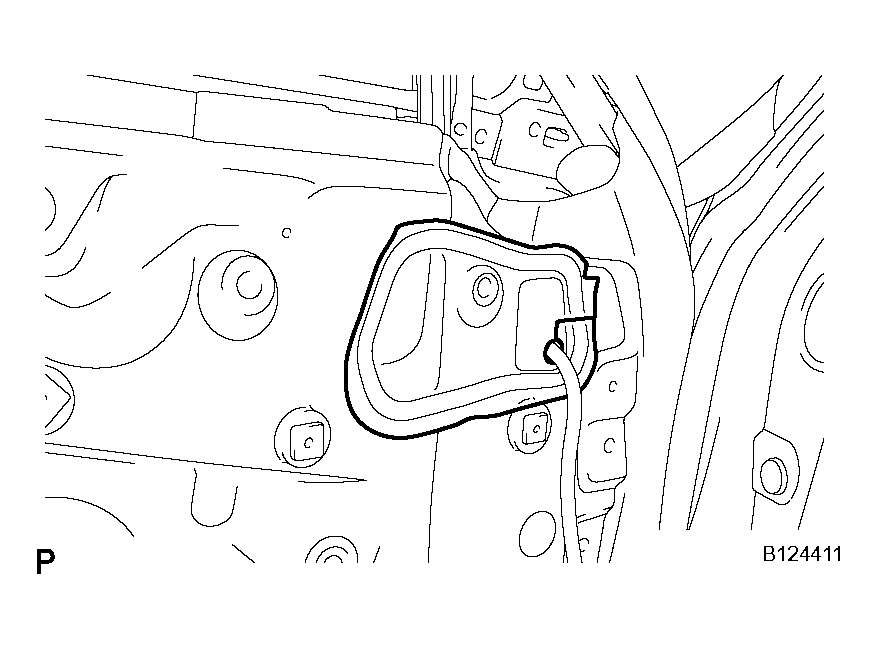

Fig 4: Identifying Connector And Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER MIRROR CONTROL ECU (w/Memory) (See Step 27 in REASSEMBLY )
INSTALL DOOR FRAME GARNISH (See Step 30 in REASSEMBLY )
INSTALL FRONT DOOR TRIM COVER (See Step 31 in REASSEMBLY )
INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP (See Step 32 in REASSEMBLY )
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See Step 36 in REASSEMBLY )
INSTALL COURTESY LIGHT ASSEMBLY (See Step 37 in REASSEMBLY )
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See Step 38 in REASSEMBLY )
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG (See Step 39 in REASSEMBLY )
INITIALIZE POWER WINDOW CONTROL SYSTEM (See Step 40 in REASSEMBLY )
