Power Window Regulator Motor: Inspection

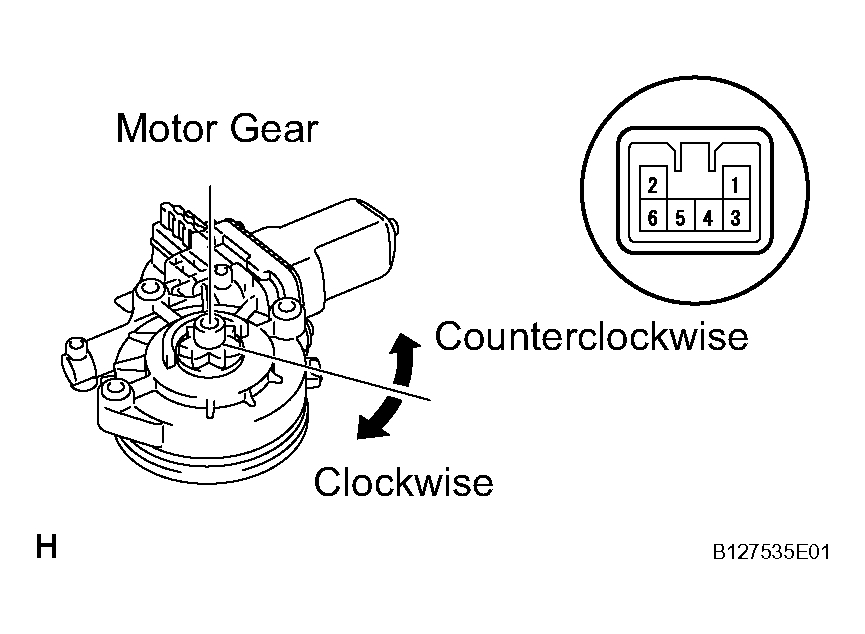

- INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)
- Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (FRONT RH)
.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
Standard
POWER WINDOW REGULATOR MOTOR (FRONT RH)Measurement Condition Specified Condition Battery positive (+) --> Terminal 1 (D)
Battery negative (-) --> Terminal 2 (U)Motor gear rotates clockwise Battery positive (+) --> Terminal 2 (U)
Battery negative (-) --> Terminal 1 (D)Motor gear rotates counterclockwise - Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (FRONT RH)
.

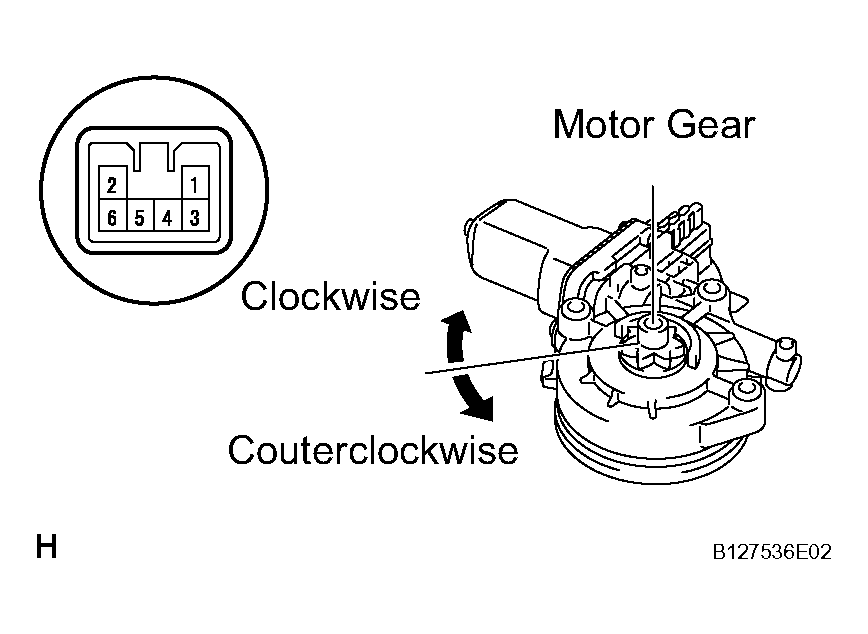

- INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)
- Apply battery voltage to the motor connector according to MEASUREMENT CONDITION AND SPECIFIED CONDITION TABLE
.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
Standard
MEASUREMENT CONDITION AND SPECIFIED CONDITION TABLEMeasurement Condition Specified Condition Battery positive (+) --> Terminal 2 (U)
Battery negative (-) --> Terminal 1 (D)Motor gear rotates clockwise Battery positive (+) --> Terminal 1 (D)
Battery negative (-) --> Terminal 2 (U)Motor gear rotates counterclockwise - Apply battery voltage to the motor connector according to MEASUREMENT CONDITION AND SPECIFIED CONDITION TABLE
.
- INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)
- Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR RH)
.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
Standard
POWER WINDOW REGULATOR MOTOR (REAR RH)Measurement Condition Specified Condition Battery positive (+) --> Terminal 2 (U)
Battery negative (-) --> Terminal 1 (D)Motor gear rotates clockwise Battery positive (+) --> Terminal 1 (D)
Battery negative (-) --> Terminal 2 (U)Motor gear rotates counterclockwise - Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR RH)
.
- INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)
- Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR LH)
.NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
Standard
POWER WINDOW REGULATOR MOTOR (REAR LH)Measurement Condition Specified Condition Battery positive (+) --> Terminal 1 (D)
Battery negative (-) --> Terminal 2 (U)Motor gear rotates clockwise Battery positive (+) --> Terminal 2 (U)
Battery negative (-) --> Terminal 1 (D)Motor gear rotates counterclockwise - Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR LH)
.
