Rear Window Defogger System does not Operate: Wiring Diagram

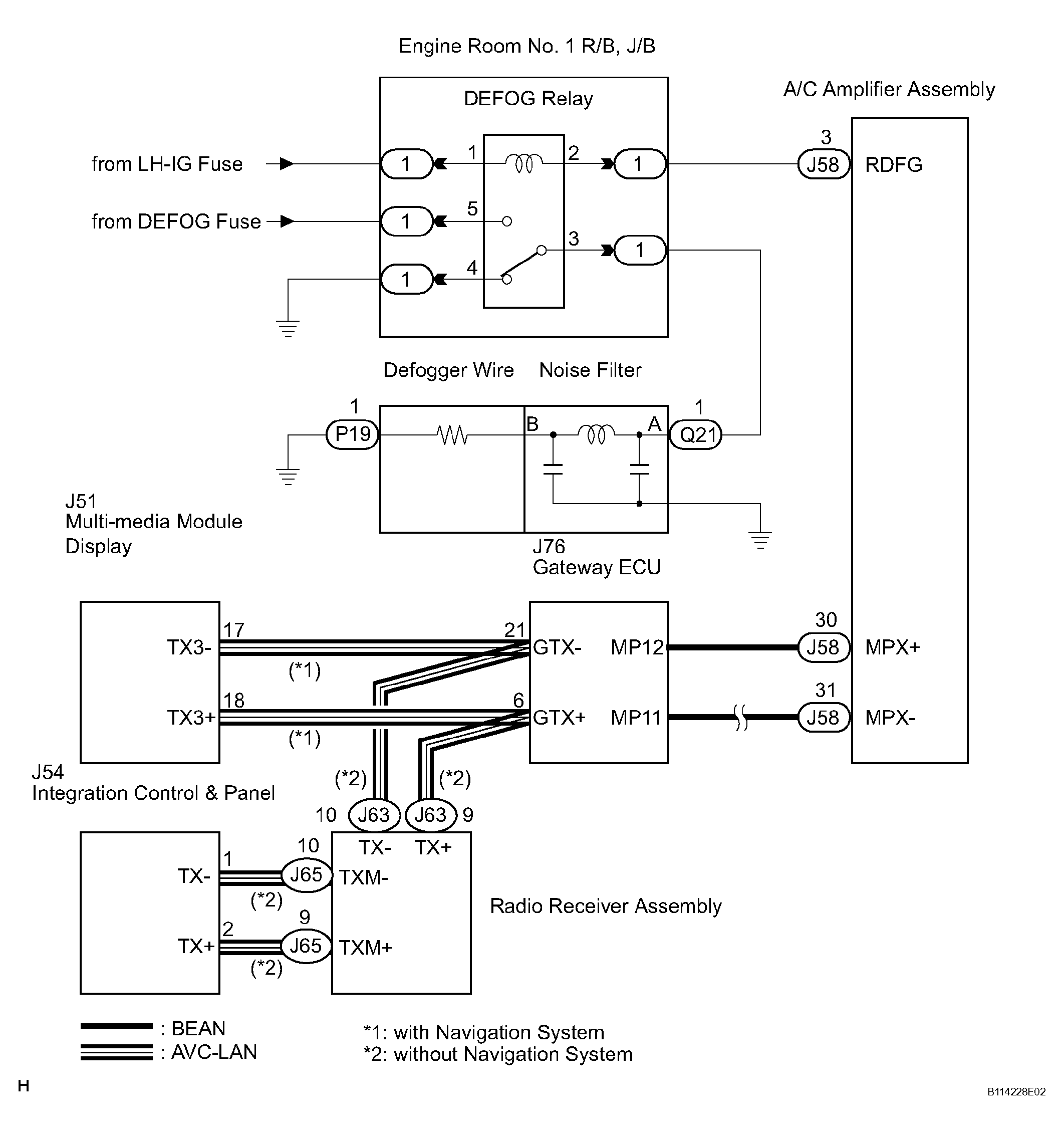

Fig 1: Identifying Rear Window Defogger System Does Not Operate Wiring Diagram
G04050791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
