On-Vehicle Inspection

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See REMOVAL )
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See REMOVAL )
REMOVE FRONT DISC (See DISASSEMBLY )

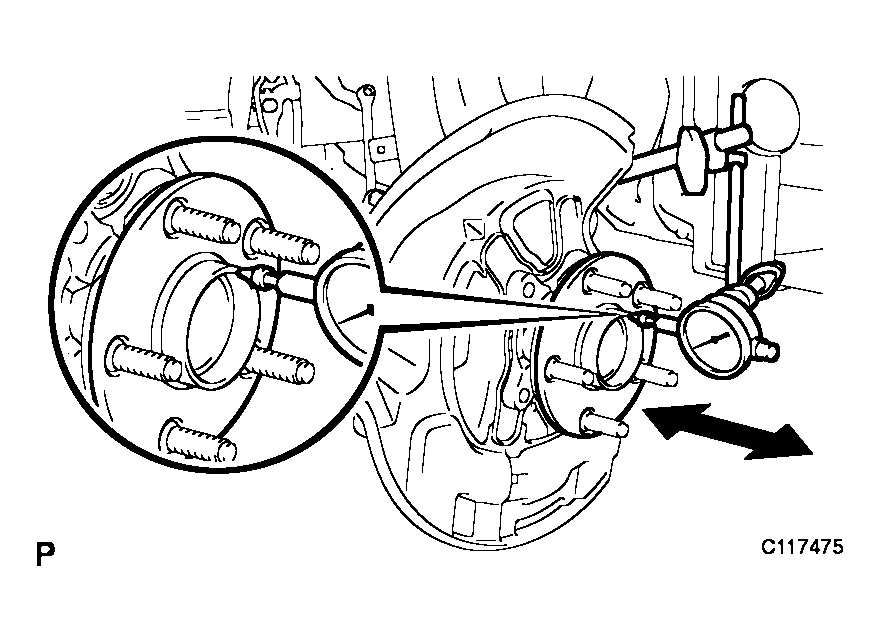

INSPECT FRONT AXLE HUB BEARING FOR LOOSENESS
1. Using a dial indicator, check for looseness near the center of the axle hub.

  Fig 1: Inspecting Front Axle Hub Bearing For Looseness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum: 0.05 mm (0.0020 in.)

  NOTE: Ensure that the dial indicator is perpendicular to the measurement surface.

  If looseness exceeds the maximum, replace the front axle hub.

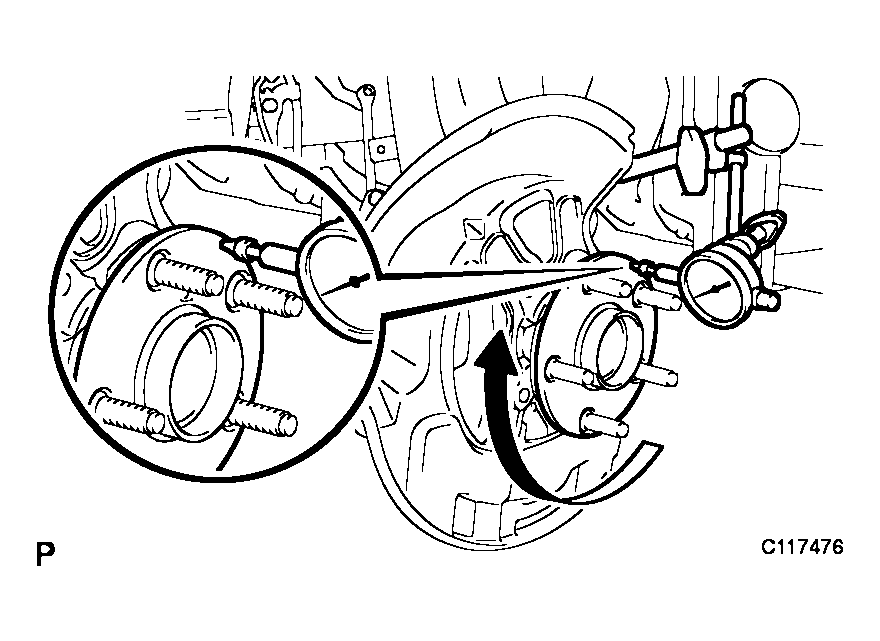

INSPECT FRONT AXLE HUB FOR RUNOUT
1. Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.

  Fig 2: Inspecting Front Axle Hub For Runout
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum: 0.05 mm (0.0020 in.)

  NOTE: Ensure that the dial indicator is set perpendicular to the measurement surface.

  If runout exceeds the maximum, replace the front axle hub.
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
