Terminals Of Ecu

  1. Clock Assembly (without Navigation System)

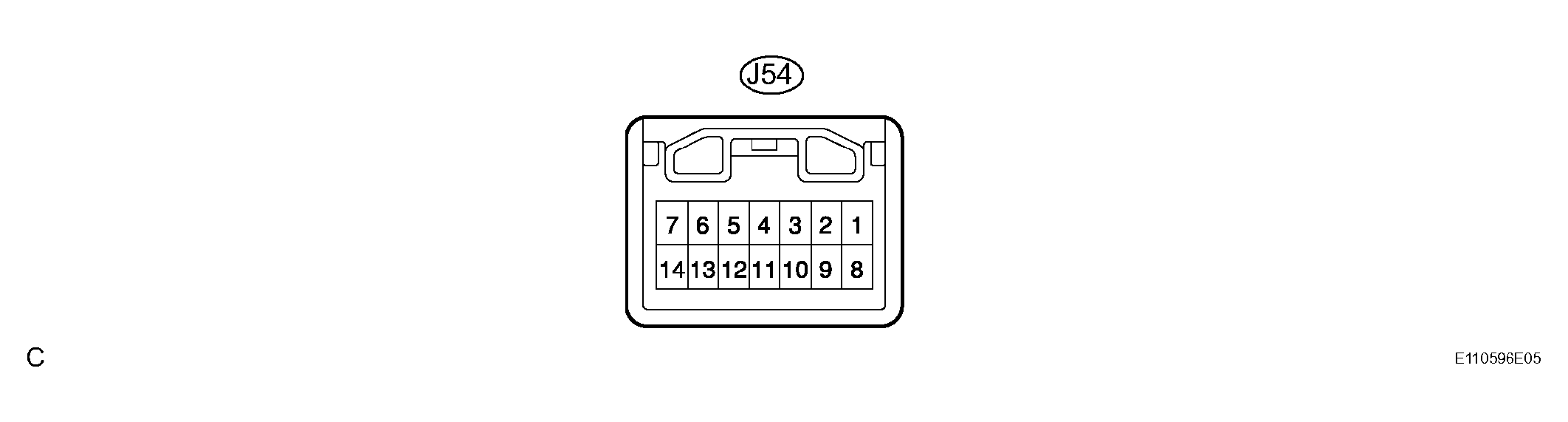

    Fig 1: Identifying Terminals Of ECU
    G04050668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL SPECIFICATION TABLE

    Symbols (Terminal No. Wiring Color Terminal Description Condition Specified Condition
    ILL+ (J54-3) - Body ground G - Body ground Illumination Signal Combination switch OFF Below 1 V
    Combination switch Head 10 to 14 V
    IG+ (J54-4) - Body ground B - Body ground Ignition Switch Signal Engine switch off Below 1 V
    Engine switch on (IG) 10 to 14 V
    ACC (J54-5) - Body ground O - Body ground Ignition Switch Signal Engine switch off Below 1 V
    Engine switch on (IG) 10 to 14 V
    E (J54-8) - Body ground W-B - Body ground Ground Always Below 1 V
    ILL-(J54-10) - Body ground LG - Body ground Illumination Signal Engine switch on (IG), combination switch Head, and light control rheostat position MAX. Pulse generation (See waveform)
    B (J54-14) - Body ground LG - Body ground Battery Always 10 to 14 V
    1. Waveform (Reference): Using an oscilloscope:

      OK:

    WAVEFORM REFERENCE TABLE

    Item Condition
    Tool setting 5 V/DIV., 200 ms./DIV.
    Vehicle condition Engine switch on (IG), light control rheostat is in the MID. position.

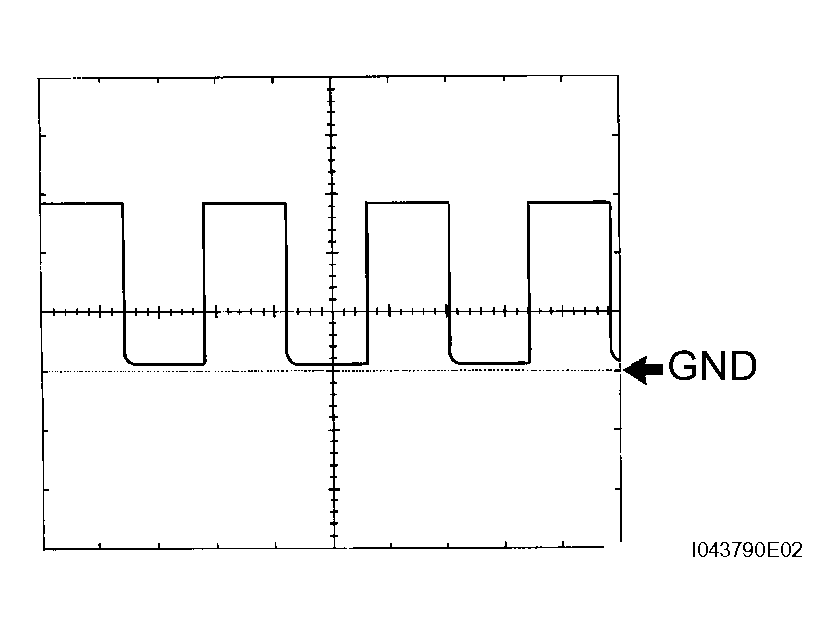

    Fig 2: Identifying Wave Graph
    G04050669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Clock Assembly (with Navigation System)

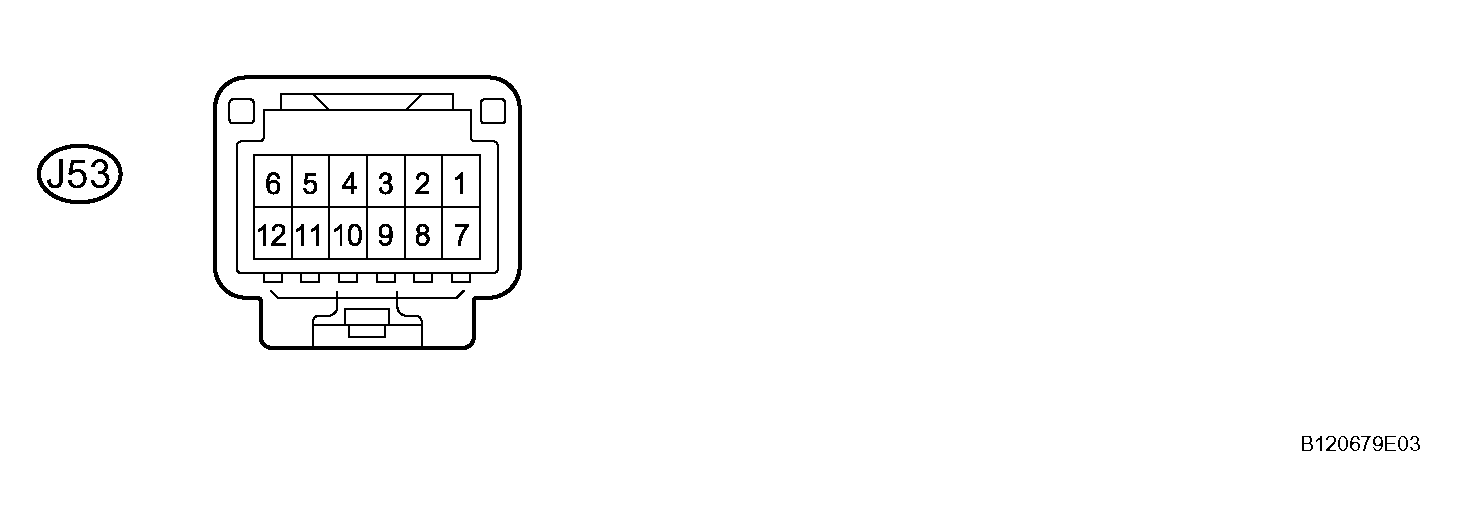

    Fig 3: Identifying Clock Assembly (With Navigation System) Connector Terminal
    G04050670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL SPECIFICATION TABLE

    Symbols (Terminal No. Wiring Color Terminal Description Condition Specified Condition
    E (J53-2) - Body ground W-B - Body ground Ground Always Below 1 V
    ILL+ (J53-4) - Body ground G - Body ground Illumination Signal Combination switch OFF Below 1 V
    Combination switch Head 10 to 14 V
    ACC (J53-5) - Body ground W-B - Body ground Ignition Switch Signal Engine switch off Below 1 V
    Engine switch on (IG) 10 to 14 V
    +B (J53-6) - Body ground BR - Body ground Battery Always 10 to 14 V
    ILL - (J53-10) - Body ground W - Body ground Illumination Signal Engine switch on (IG), combination switch Head, and light control rheostat position MAX. Pulse generation (See waveform)
    IG (J53-11) - Body ground B - Body ground Ignition Switch Signal Engine switch off Below 1 V
    Engine switch on (IG) 10 to 14 V
    1. Waveform (Reference): Using an oscilloscope:

      OK:

      WAVEFORM REFERENCE TABLE

      Item Condition
      Tool setting 5 V/DIV., 200 ms./DIV.
      Vehicle condition Engine switch on (IG), light control rheostat is in the MID. position.
    Fig 4: Identifying Wave Graph
    G04050671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
