Climate Control Seat and Seat Heater: Notes

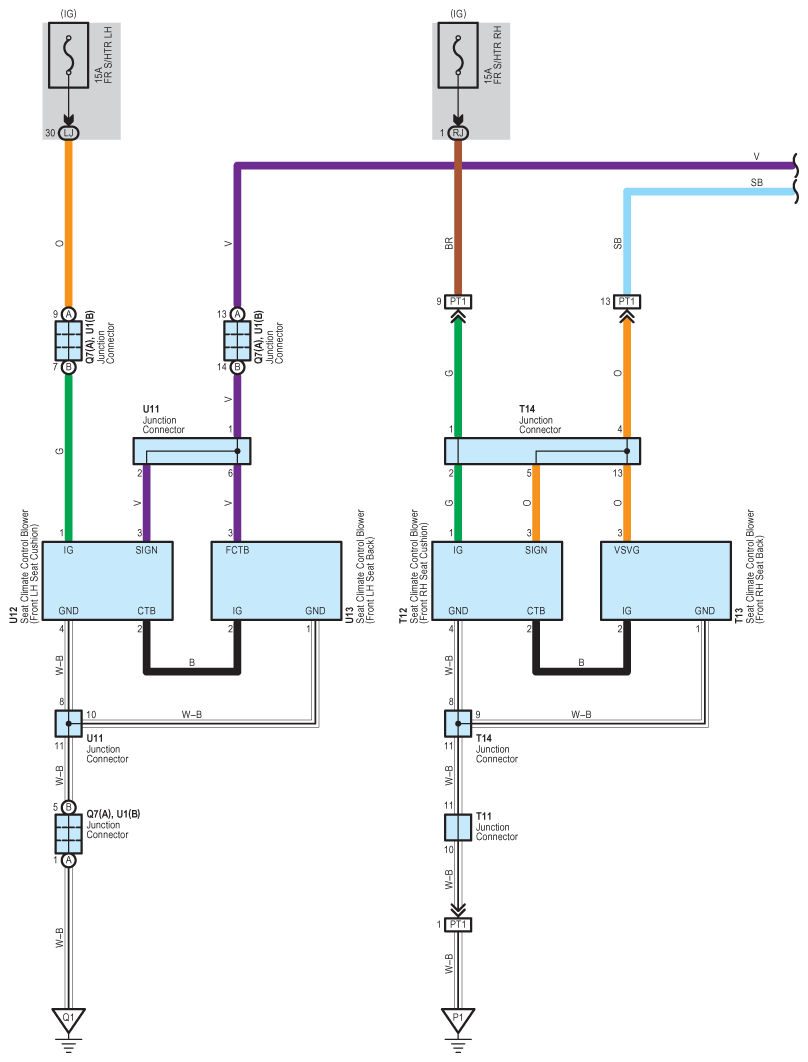

Fig 1: Climate Control Seat And Seat Heater - Wiring Diagram (1 Of 4)
G08918629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

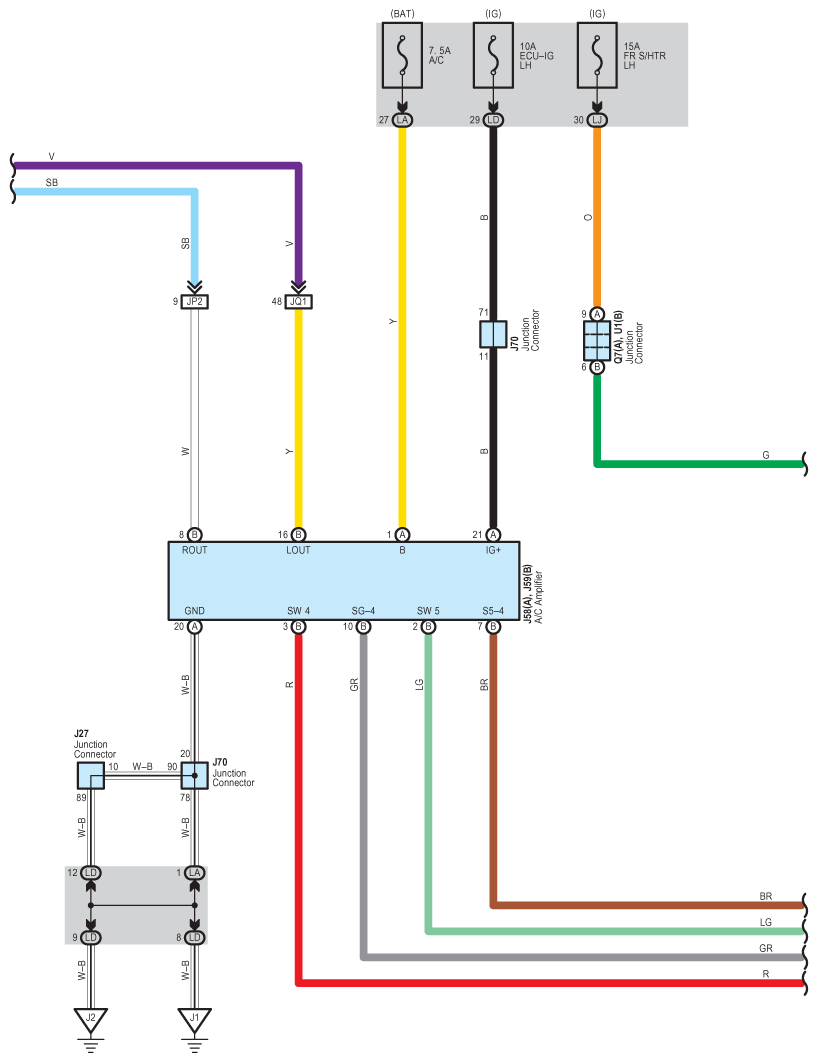

Fig 2: Climate Control Seat And Seat Heater - Wiring Diagram (2 Of 4)
G08918630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

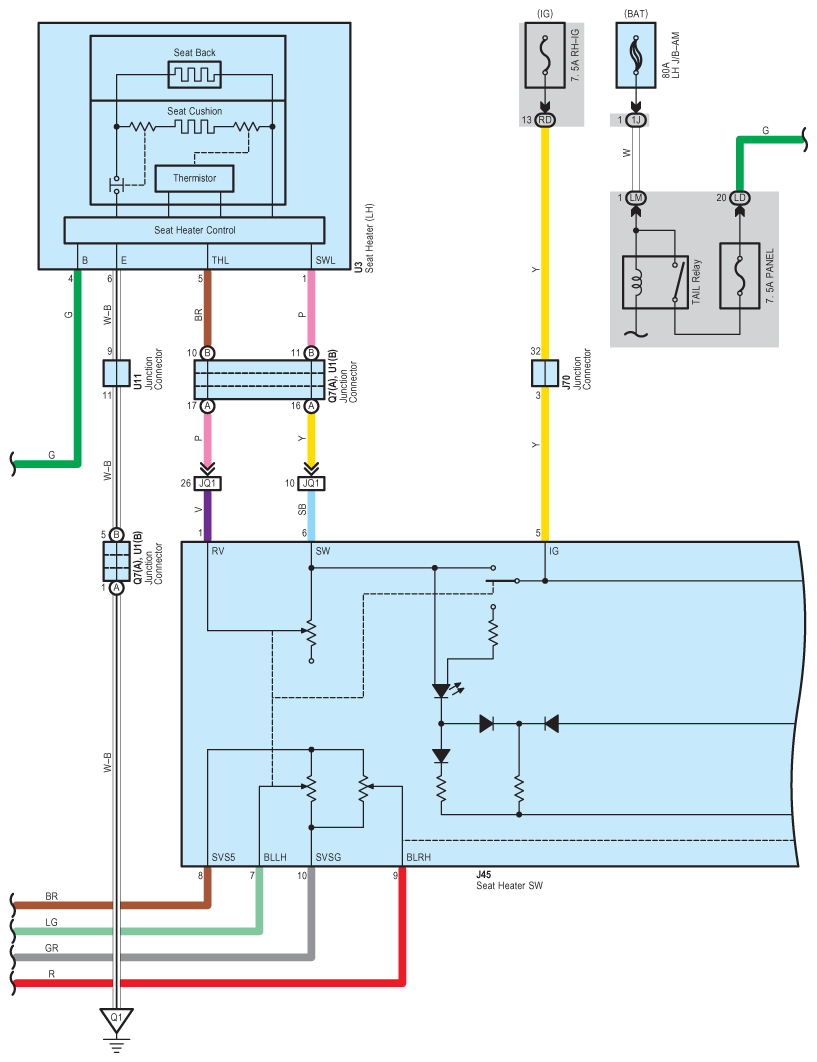

Fig 3: Climate Control Seat And Seat Heater - Wiring Diagram (3 Of 4)
G08918631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

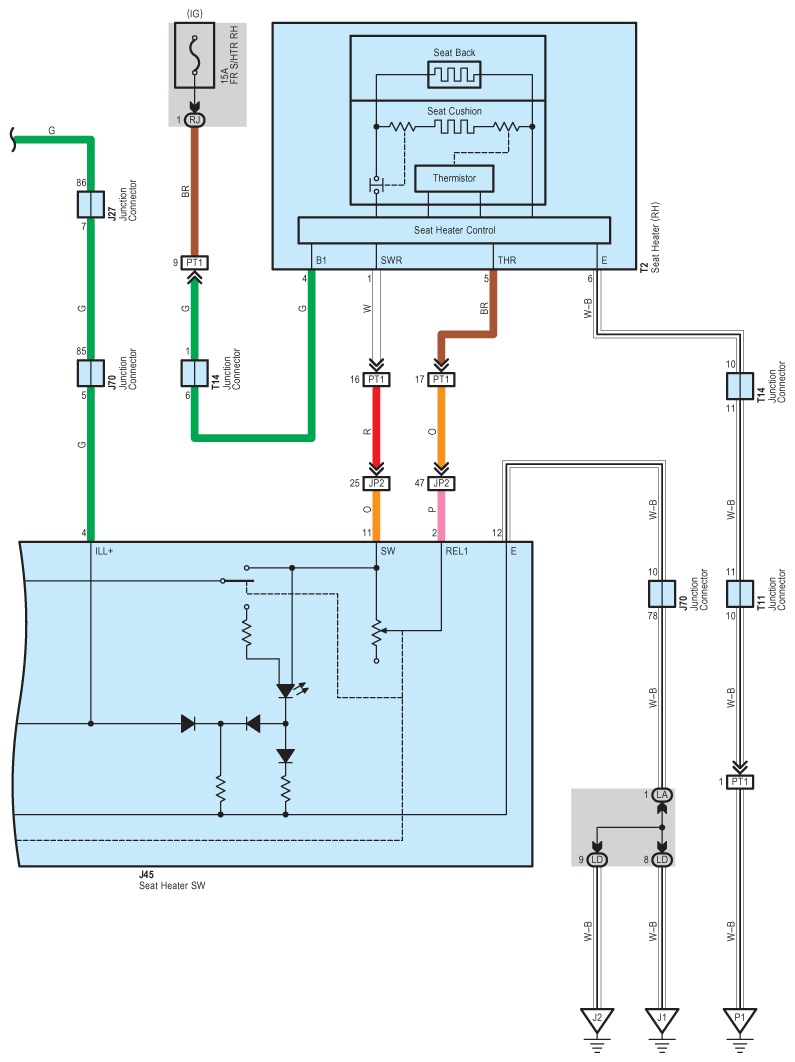

Fig 4: Climate Control Seat And Seat Heater - Wiring Diagram (4 Of 4)
G08918632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
