Instrument Panel Safety Pad: Components

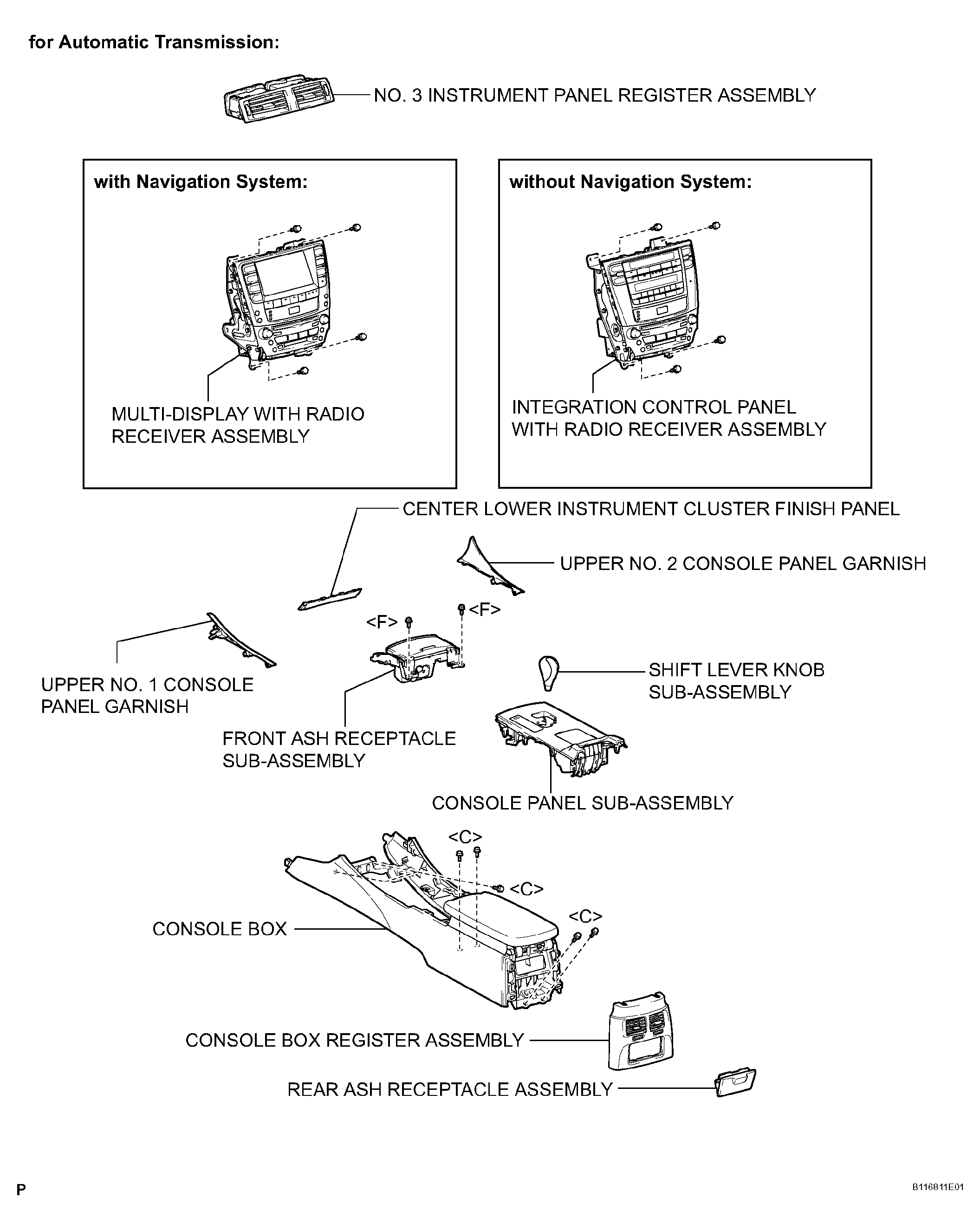

Fig 1: Locating Instrument Panel Safety Pad Components (1 Of 7)
G04050885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

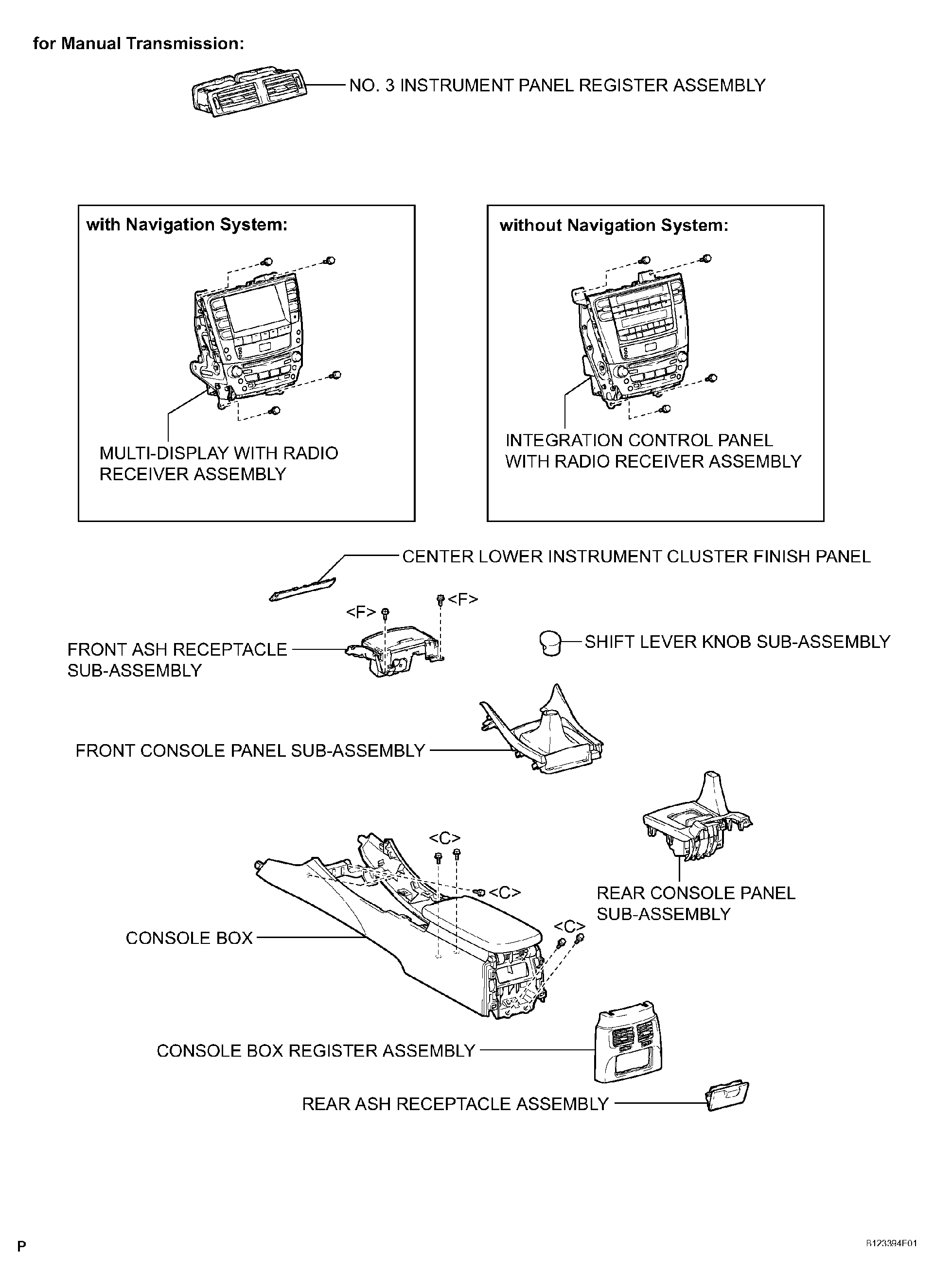

Fig 2: Locating Instrument Panel Safety Pad Components (2 Of 7)
G04050886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

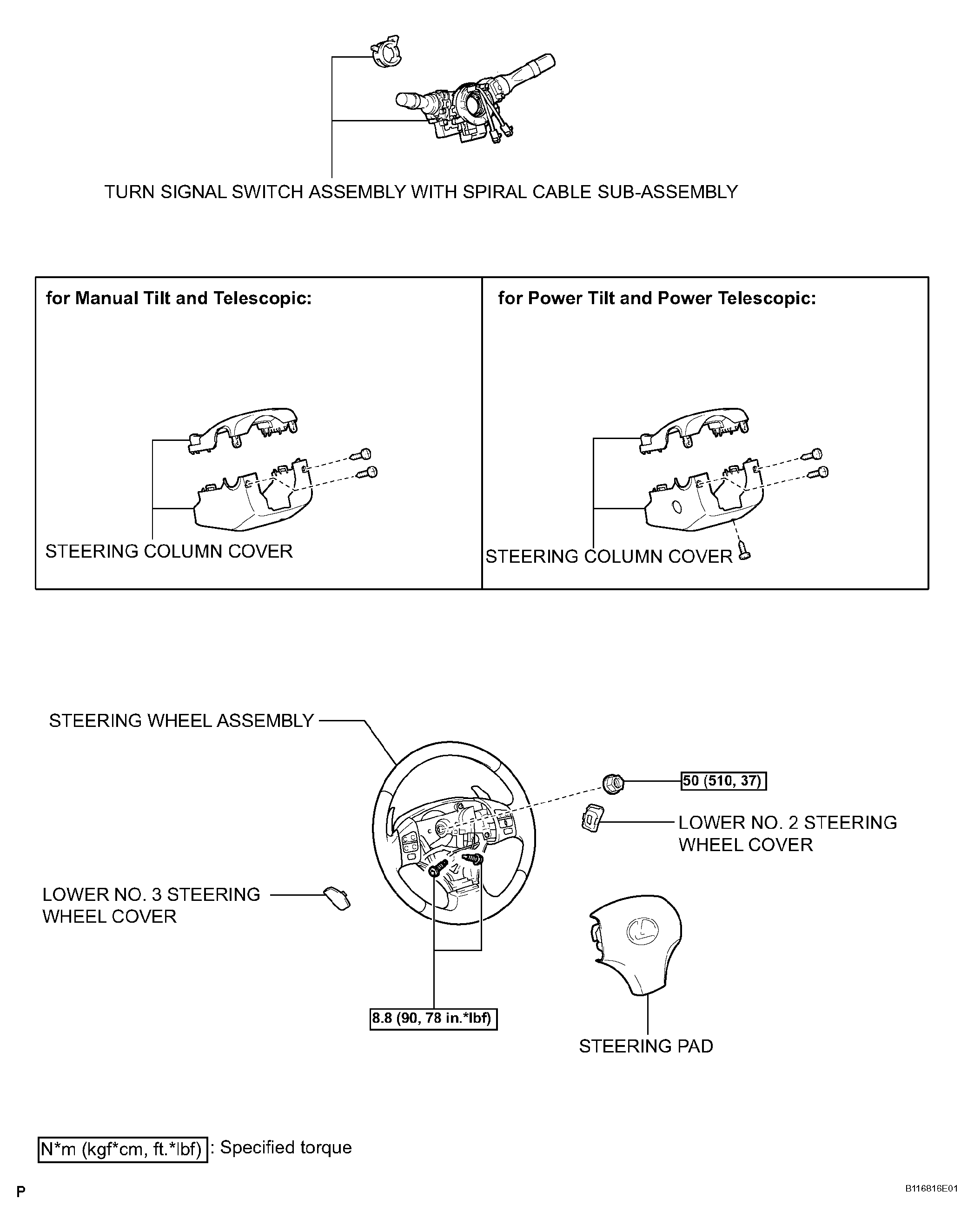

Fig 3: Locating Instrument Panel Safety Pad Components With Torque Specifications (3 Of 7)
G04050887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

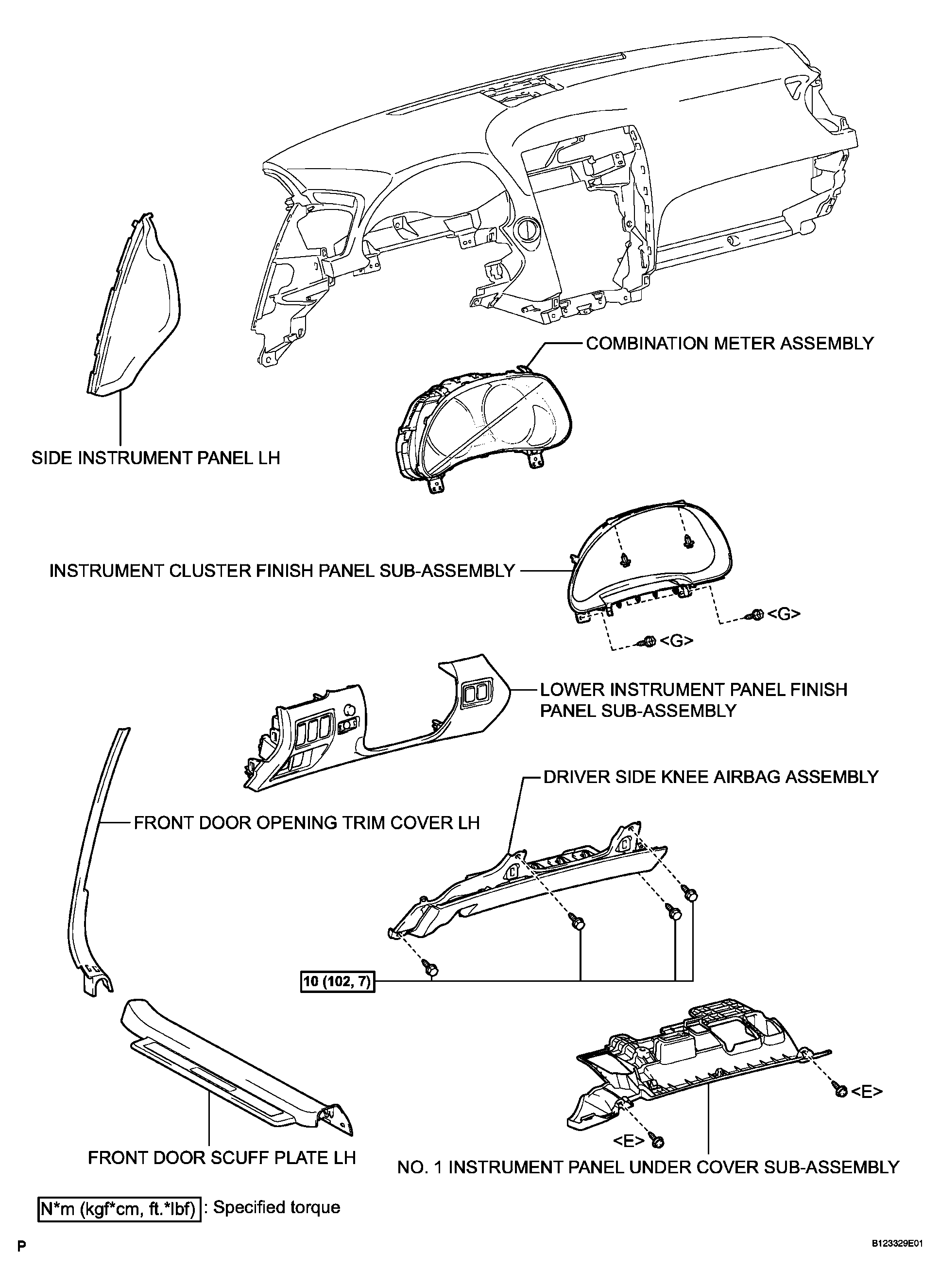

Fig 4: Locating Instrument Panel Safety Pad Components With Torque Specifications (4 Of 7)
G04048389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

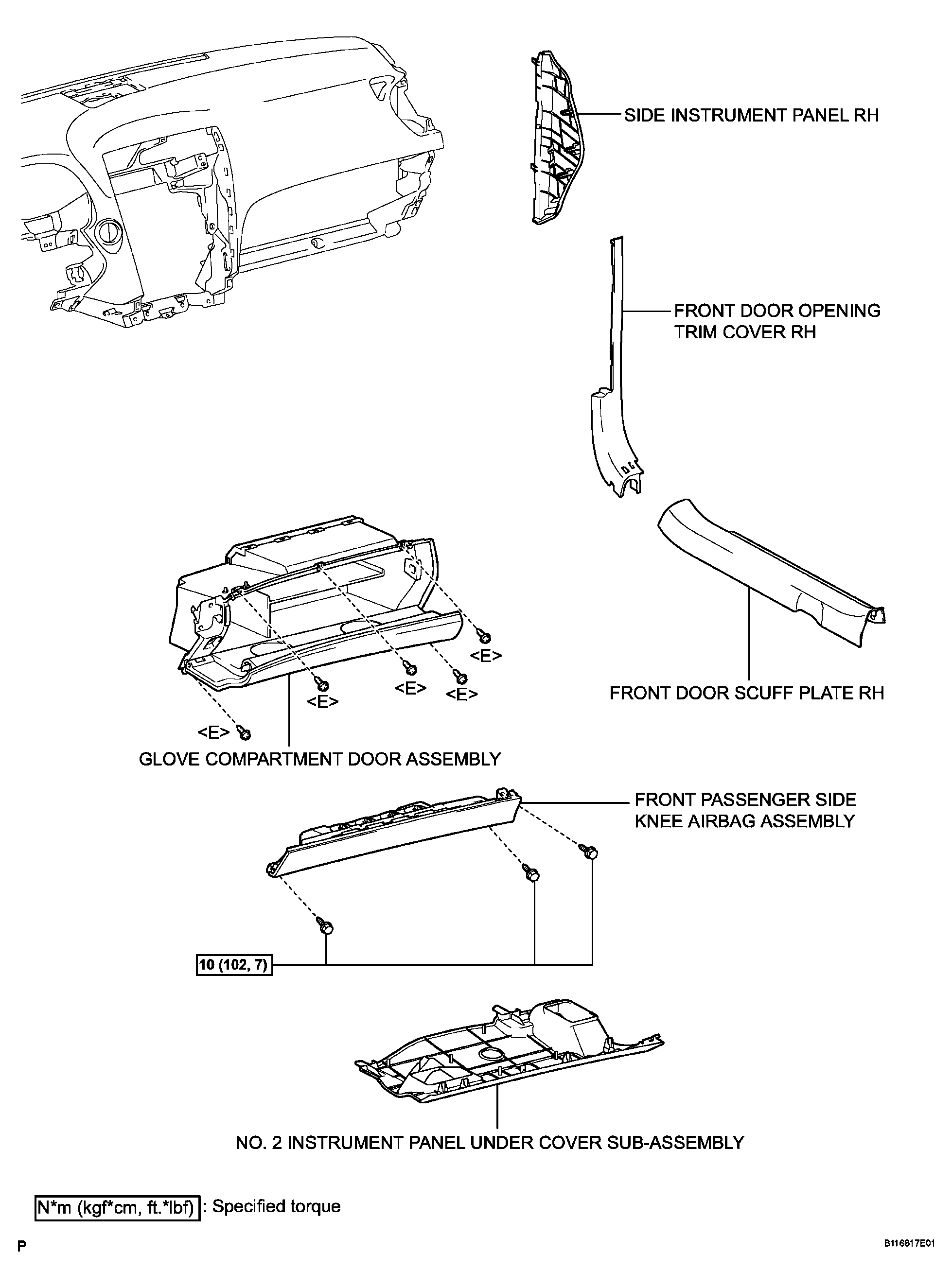

Fig 5: Locating Instrument Panel Safety Pad Components With Torque Specifications (5 Of 7)
G04048390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Locating Instrument Panel Safety Pad Components With Torque Specifications (6 Of 7)
G04048391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

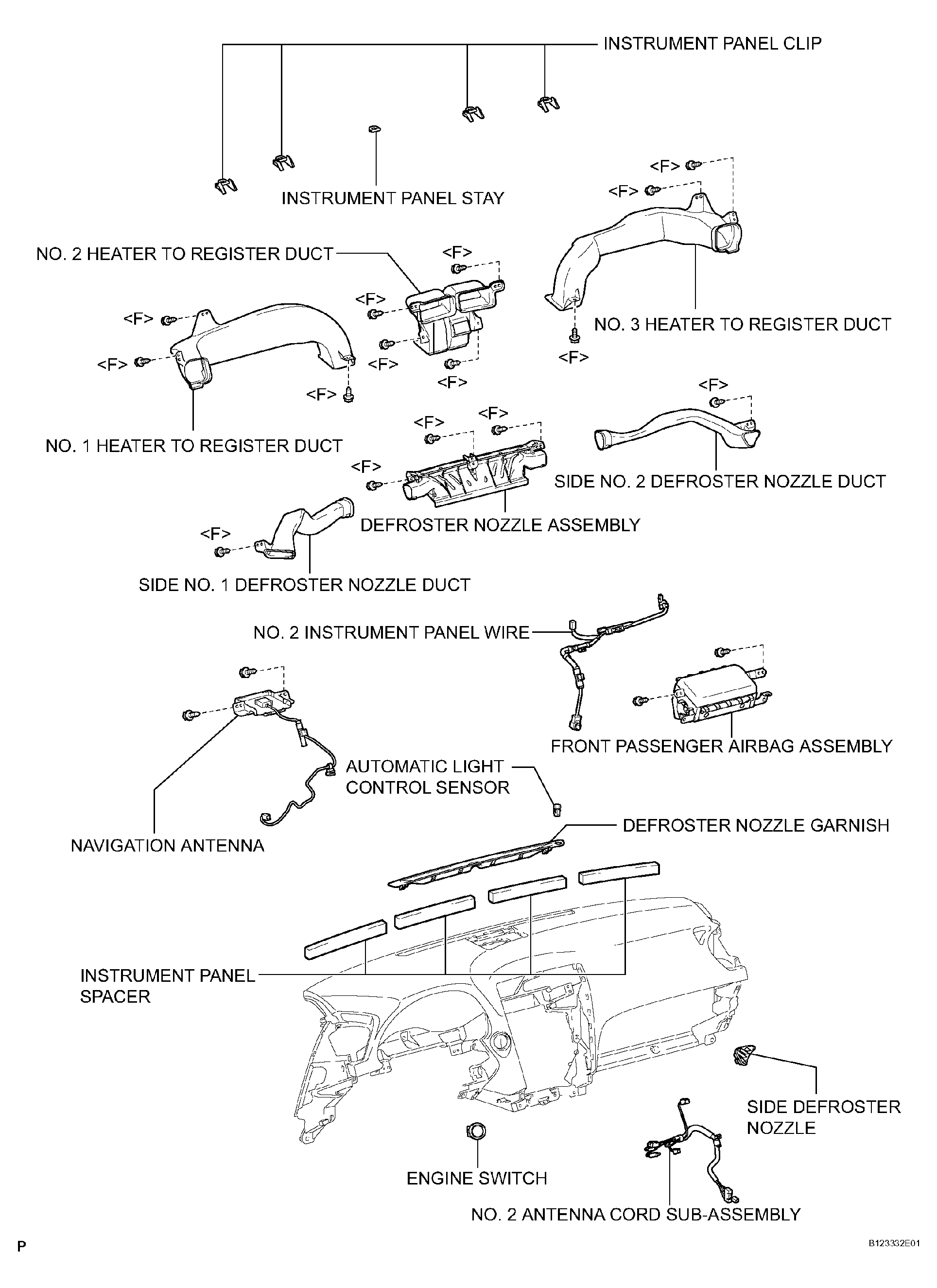

Fig 7: Locating Instrument Panel Safety Pad Components (7 Of 7)
G04050891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
