Engine Unit: Components

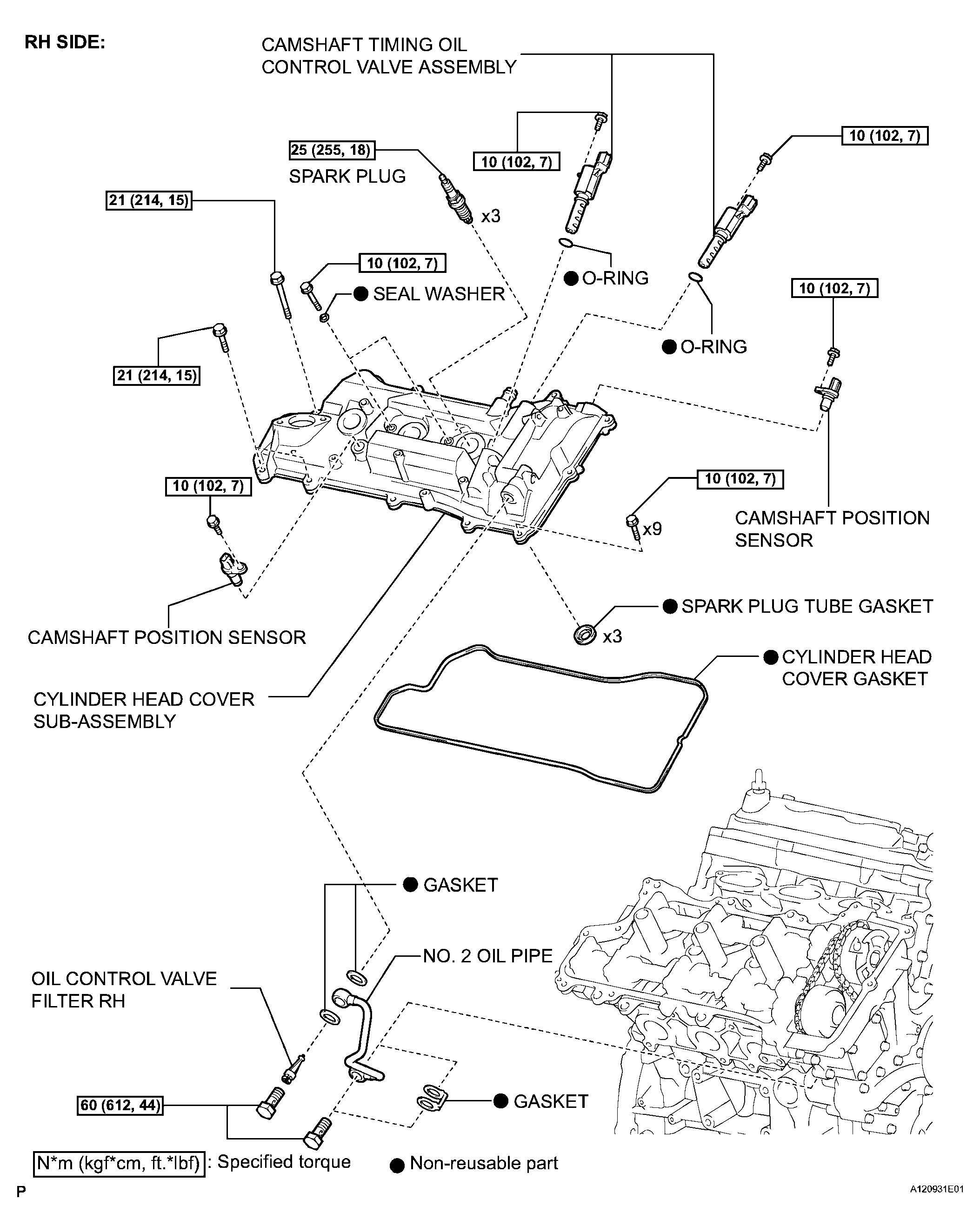

Fig 1: Exploded View Of Engine Unit Components With Torque Specifications (1 Of 11)
G04056034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

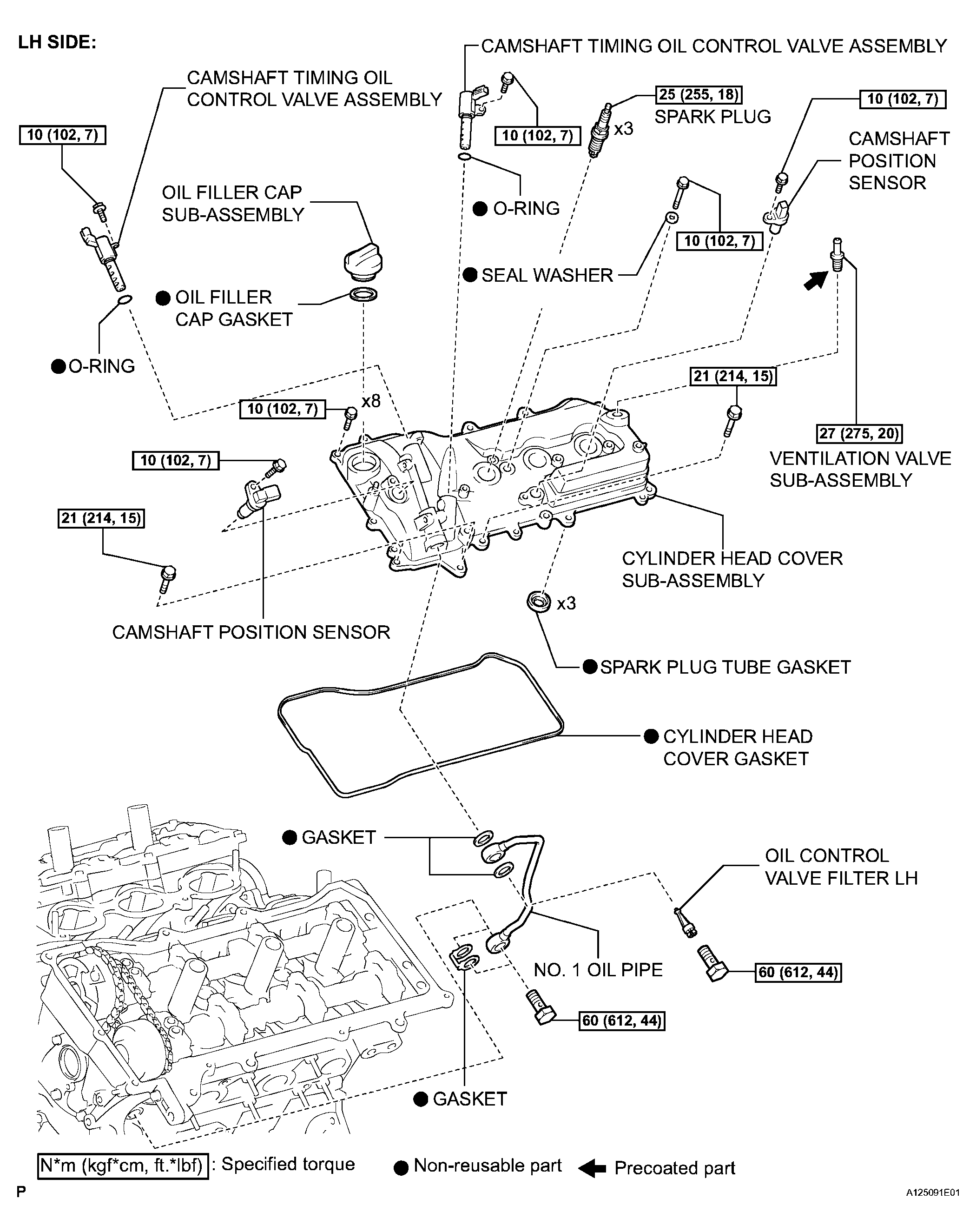

Fig 2: Exploded View Of Engine Unit Components With Torque Specifications (2 Of 11)
G04056035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

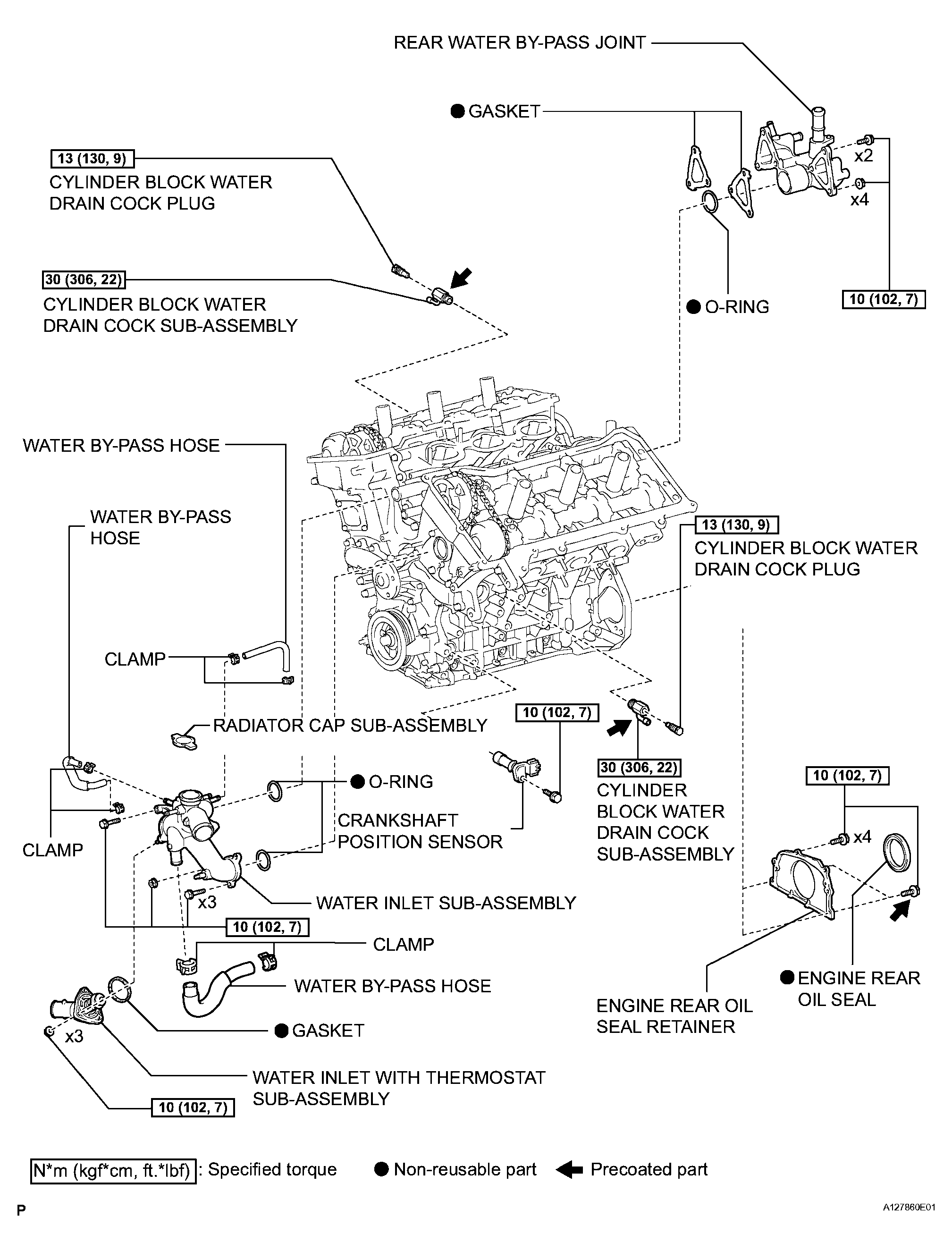

Fig 3: Exploded View Of Engine Unit Components With Torque Specifications (3 Of 11)
G04056036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

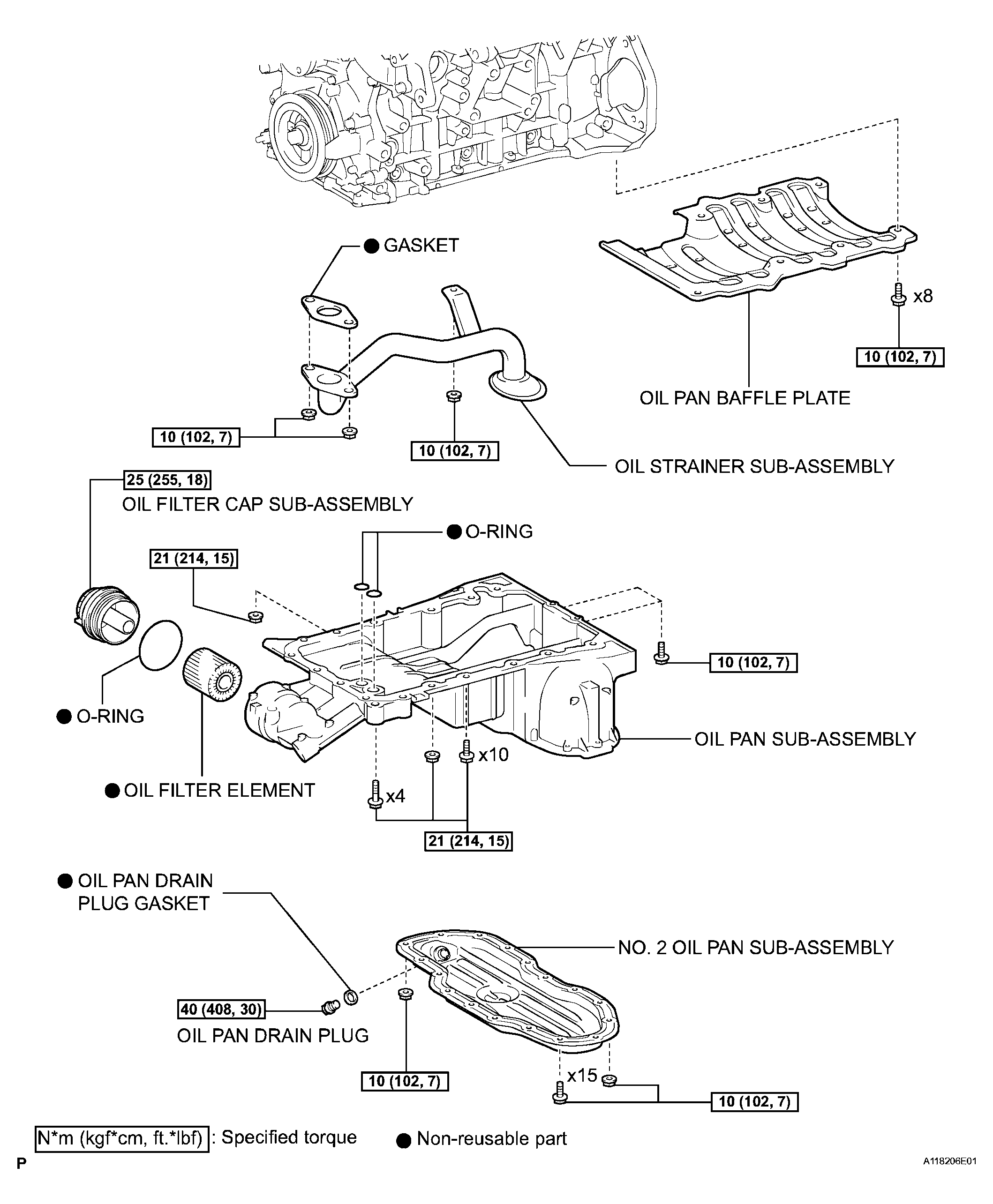

Fig 4: Exploded View Of Engine Unit Components With Torque Specifications (4 Of 11)
G04056037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

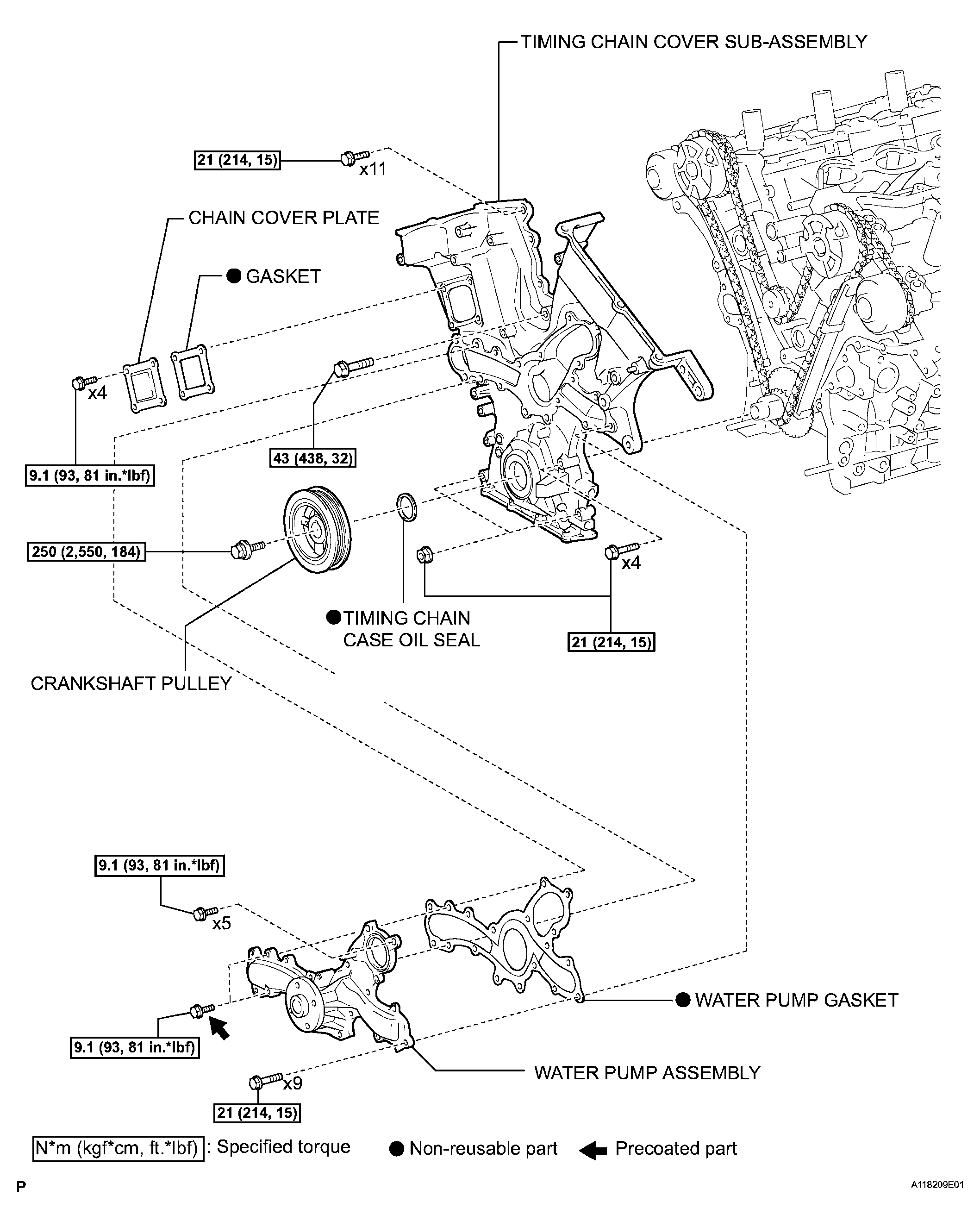

Fig 5: Exploded View Of Engine Unit Components With Torque Specifications (5 Of 11)
G04056038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

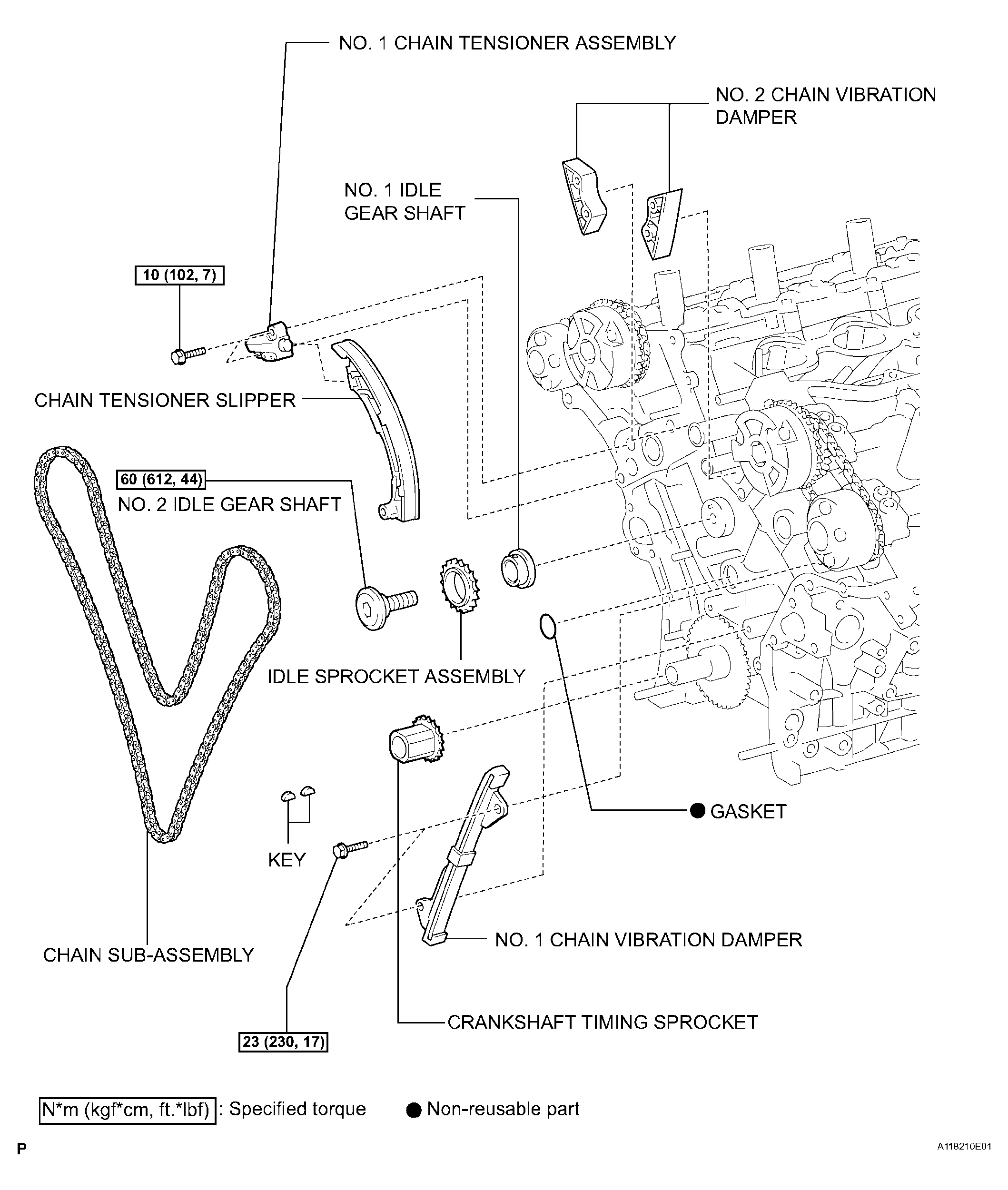

Fig 6: Exploded View Of Engine Unit Components With Torque Specifications (6 Of 11)
G04056039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

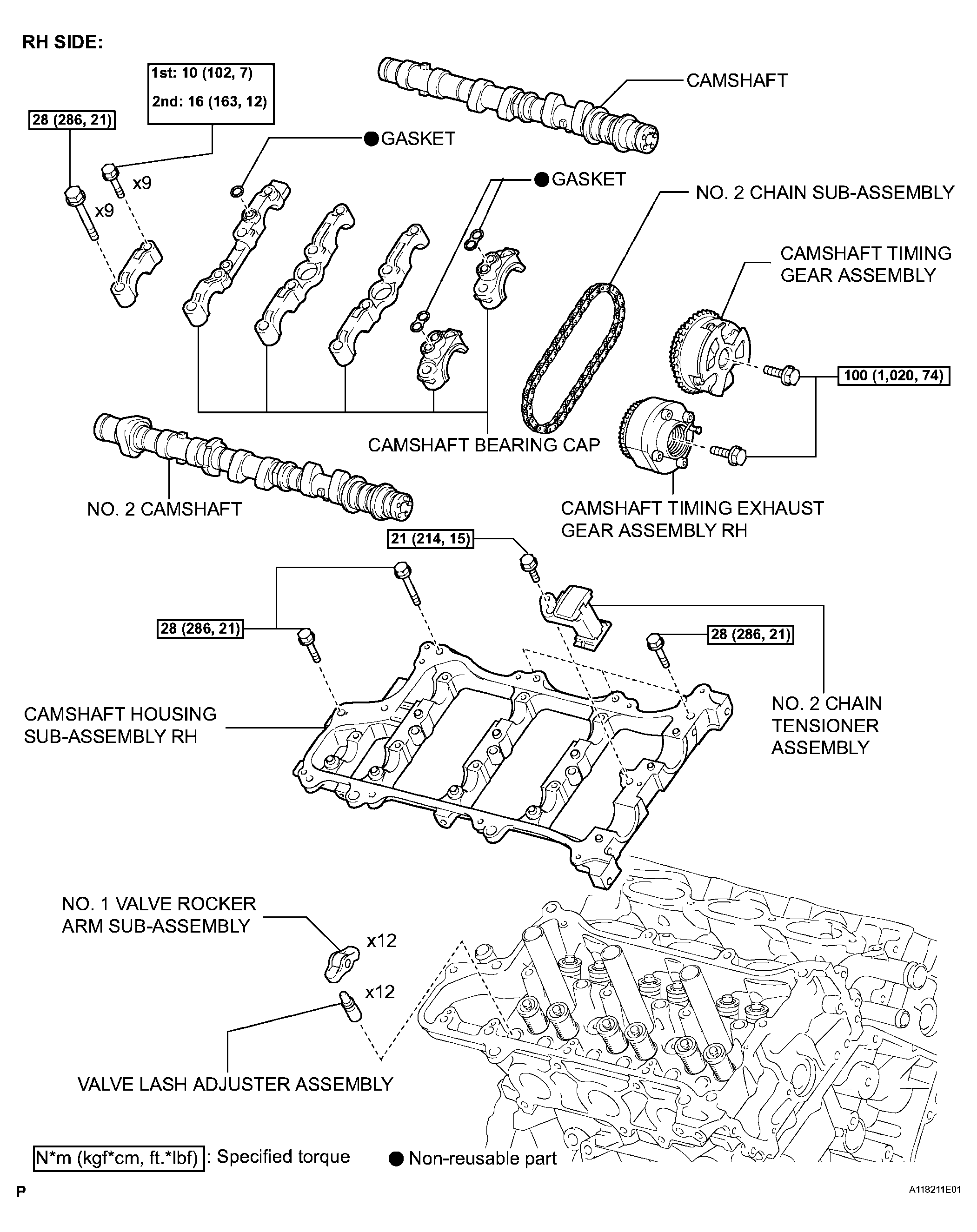

Fig 7: Exploded View Of Engine Unit Components With Torque Specifications (7 Of 11)
G04056040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

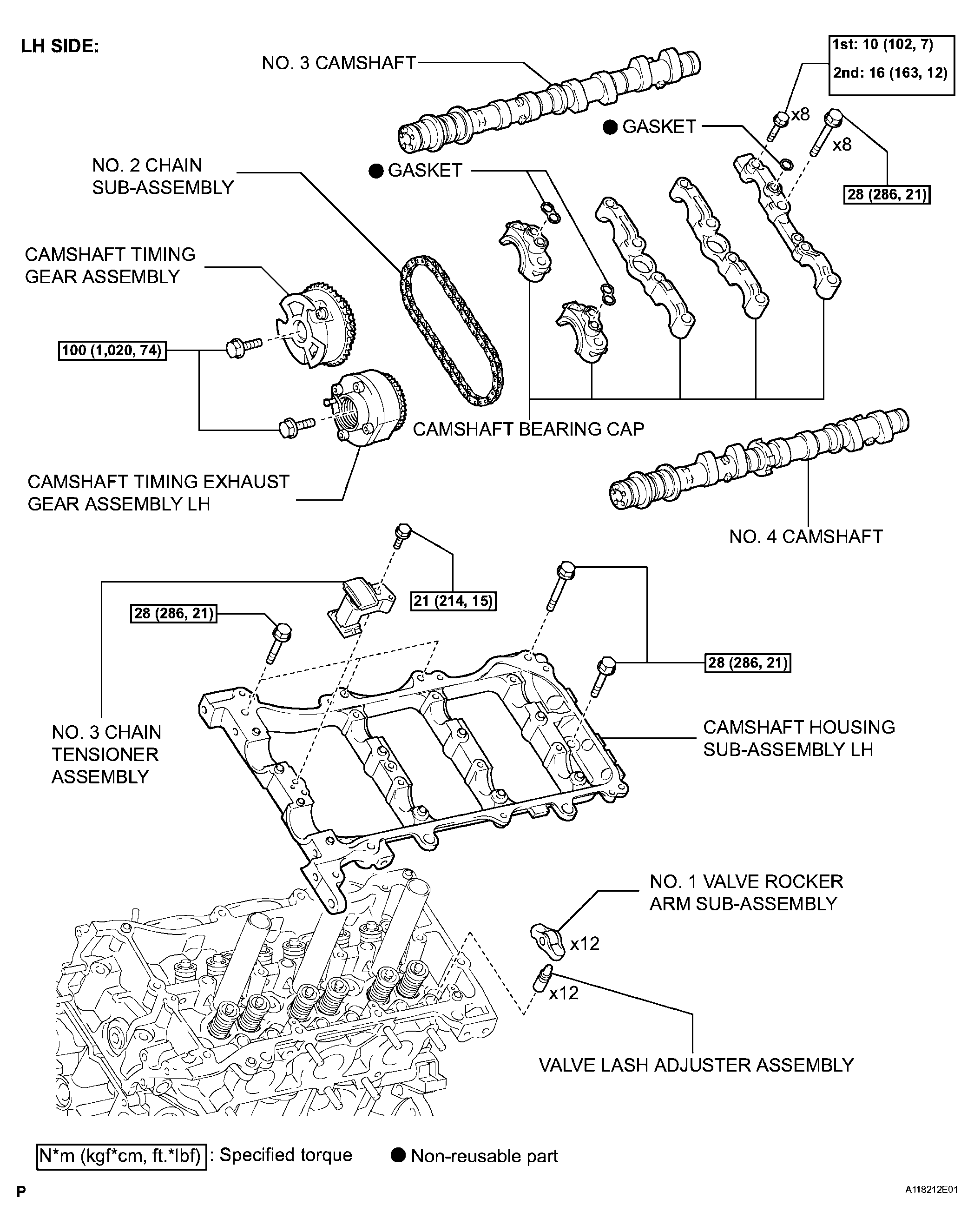

Fig 8: Exploded View Of Engine Unit Components With Torque Specifications (8 Of 11)
G04056041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

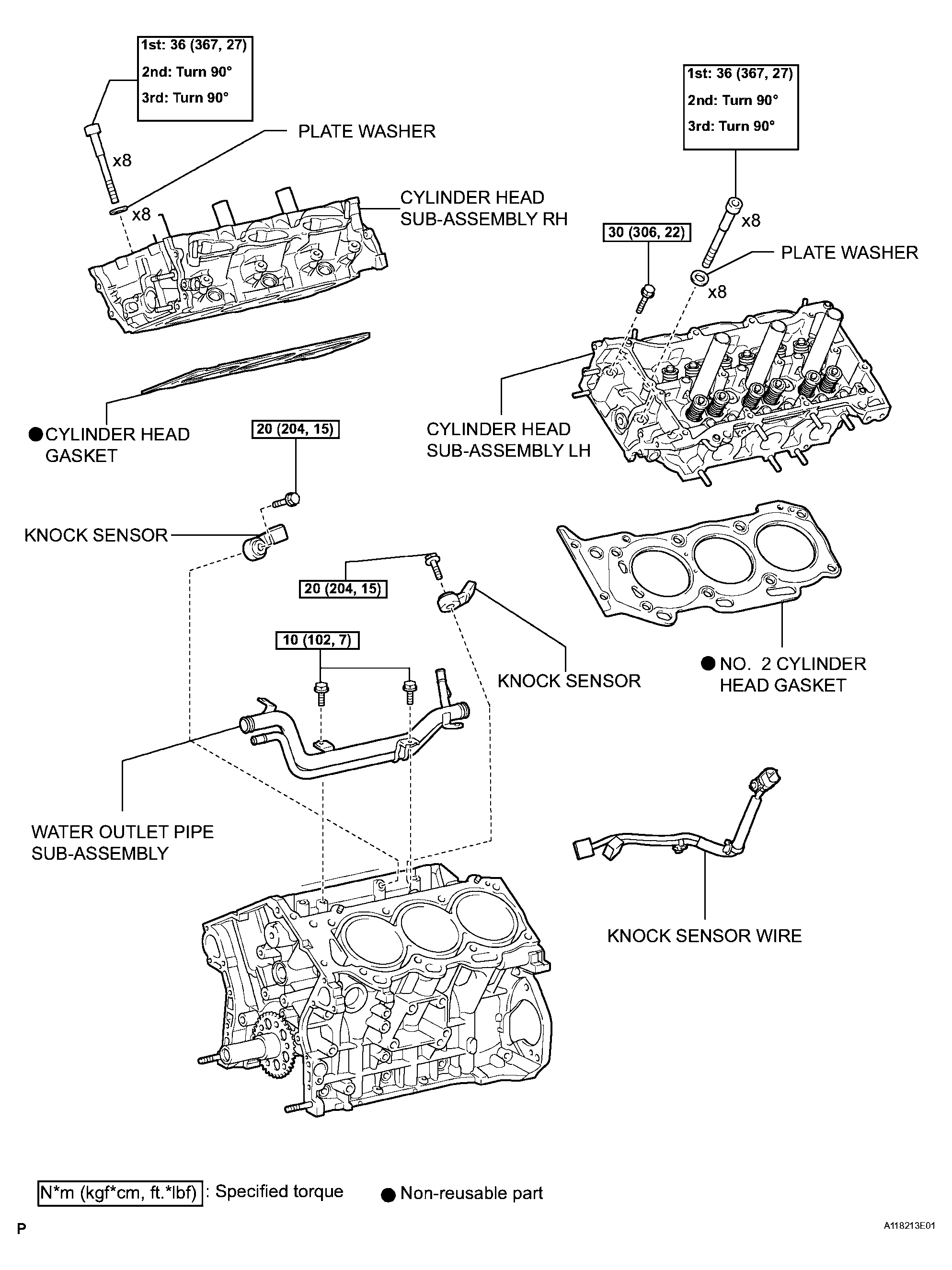

Fig 9: Exploded View Of Engine Unit Components With Torque Specifications (9 Of 11)
G04056042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

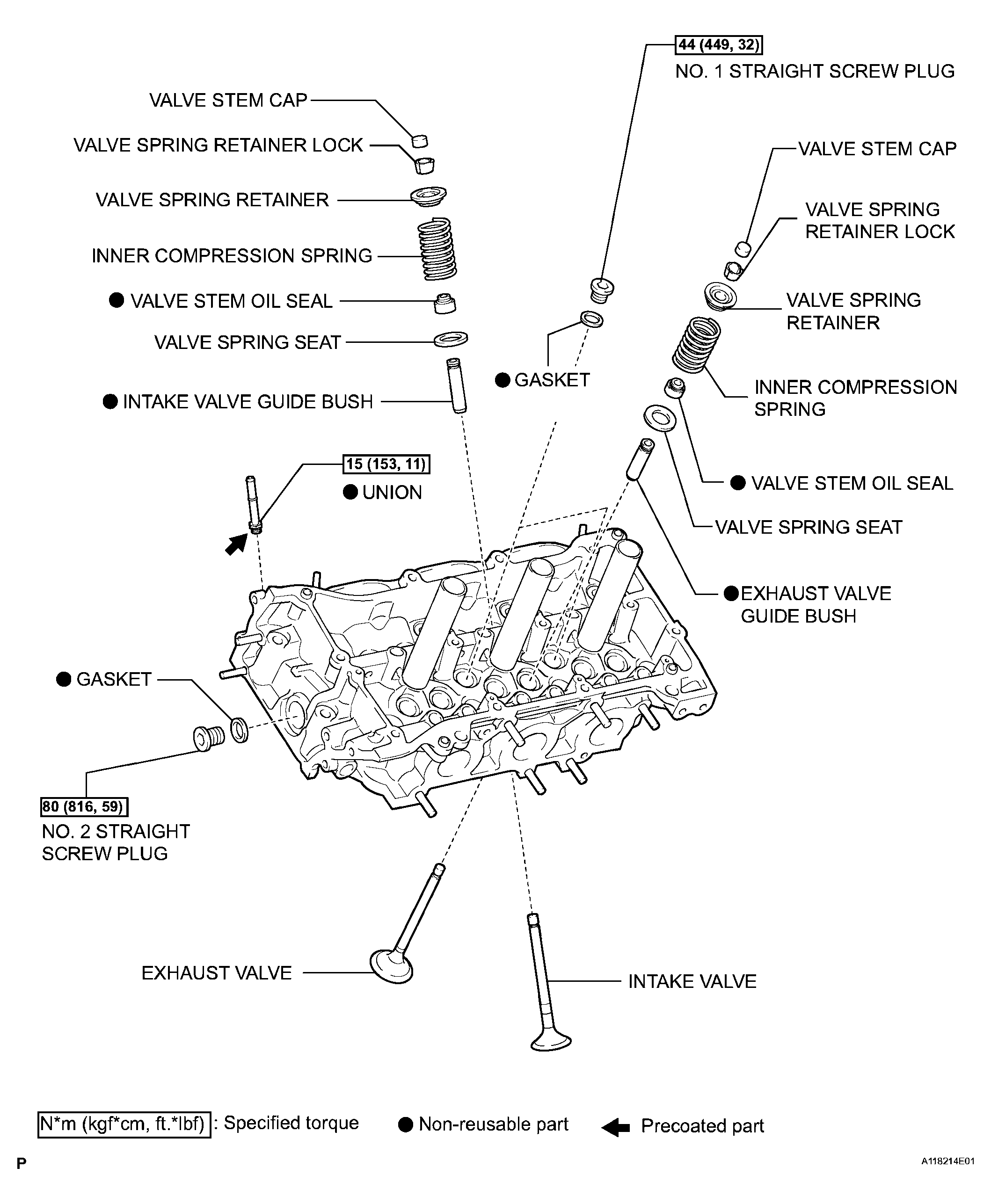

Fig 10: Exploded View Of Engine Unit Components With Torque Specifications (10 Of 11)
G04056043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

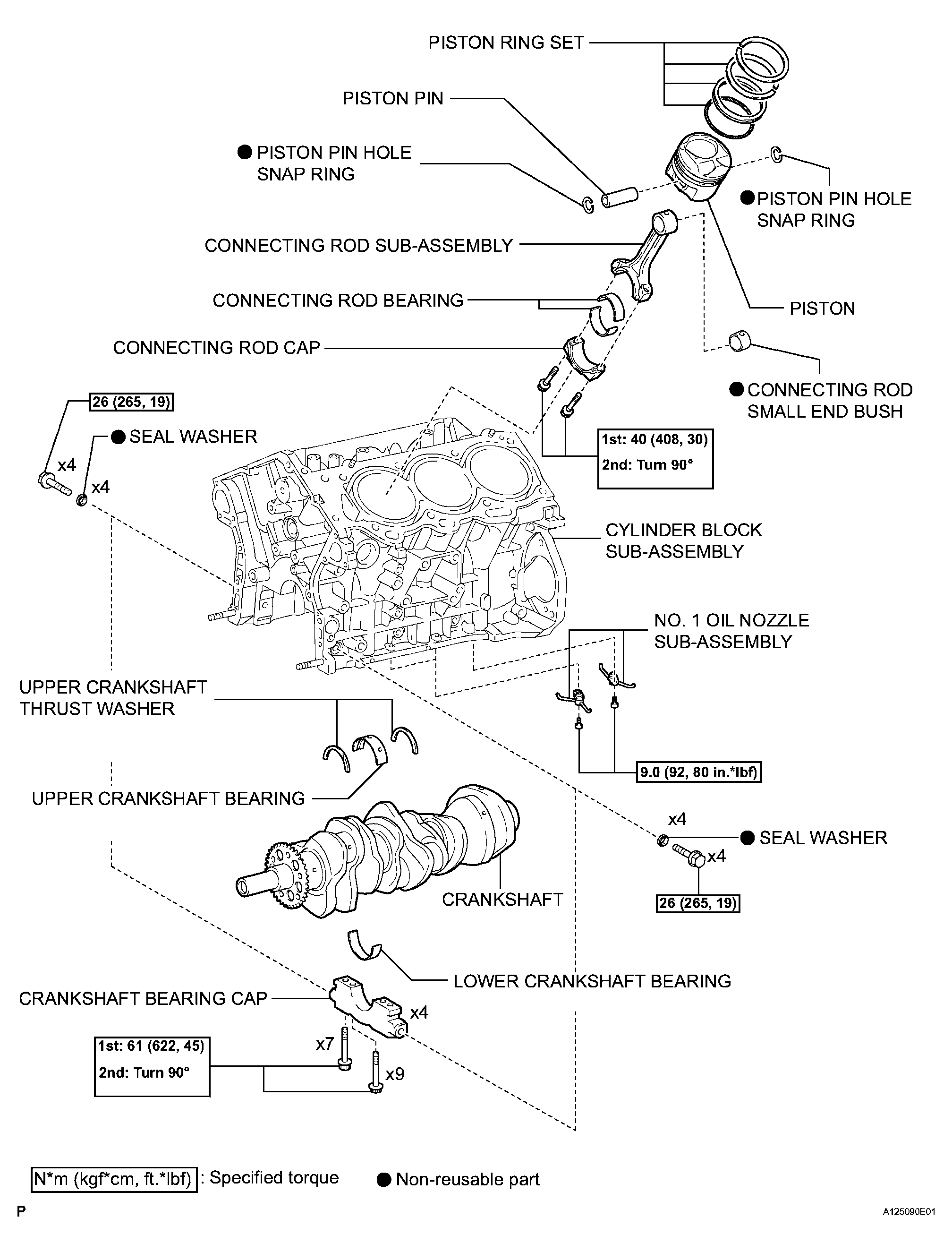

Fig 11: Exploded View Of Engine Unit Components With Torque Specifications (11 Of 11)
G04056044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
