Fuel Pressure Sensor: Components

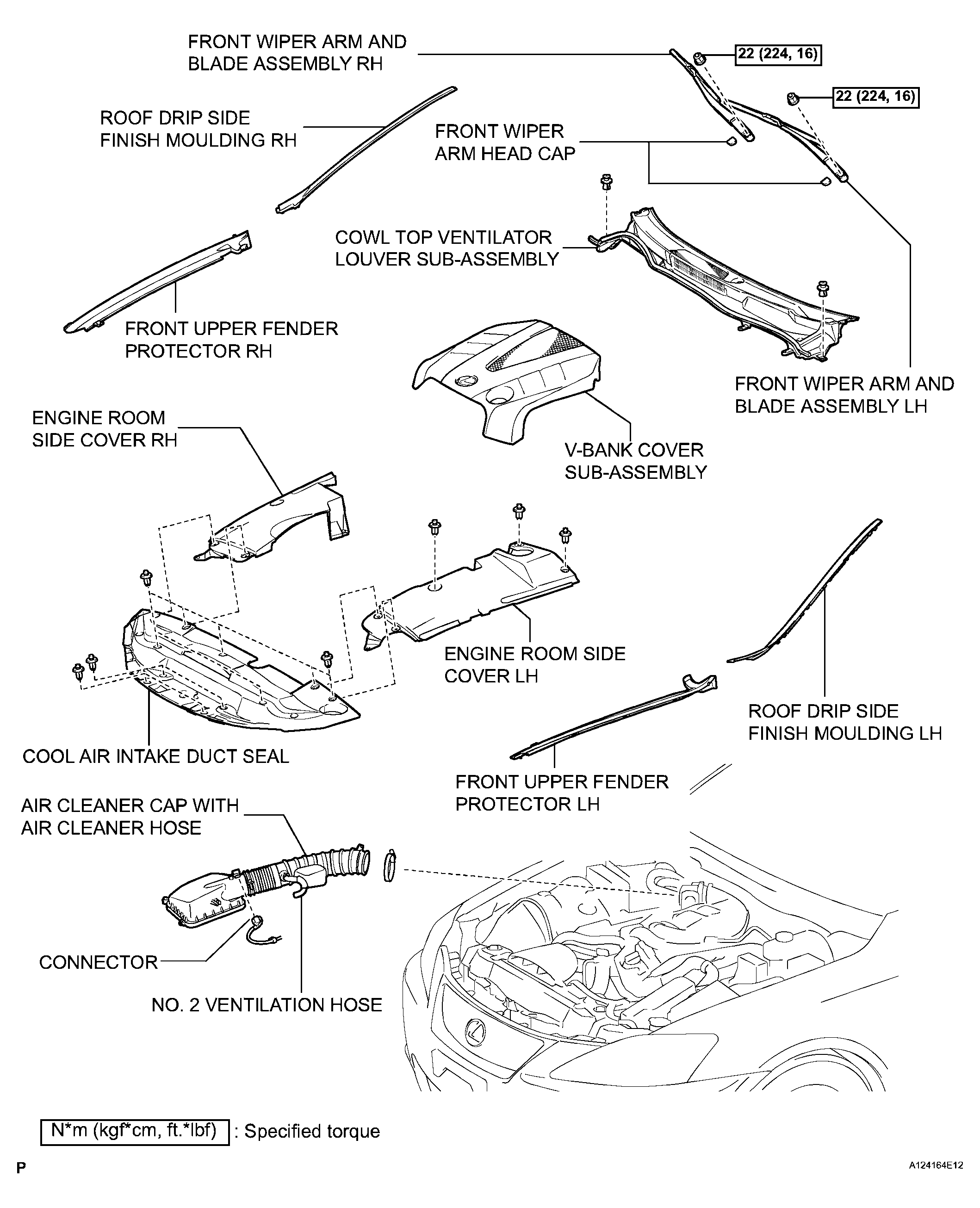

Fig 1: Exploded View Of Fuel Pressure Sensor Components With Torque Specifications (1 Of 3)
G04056475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

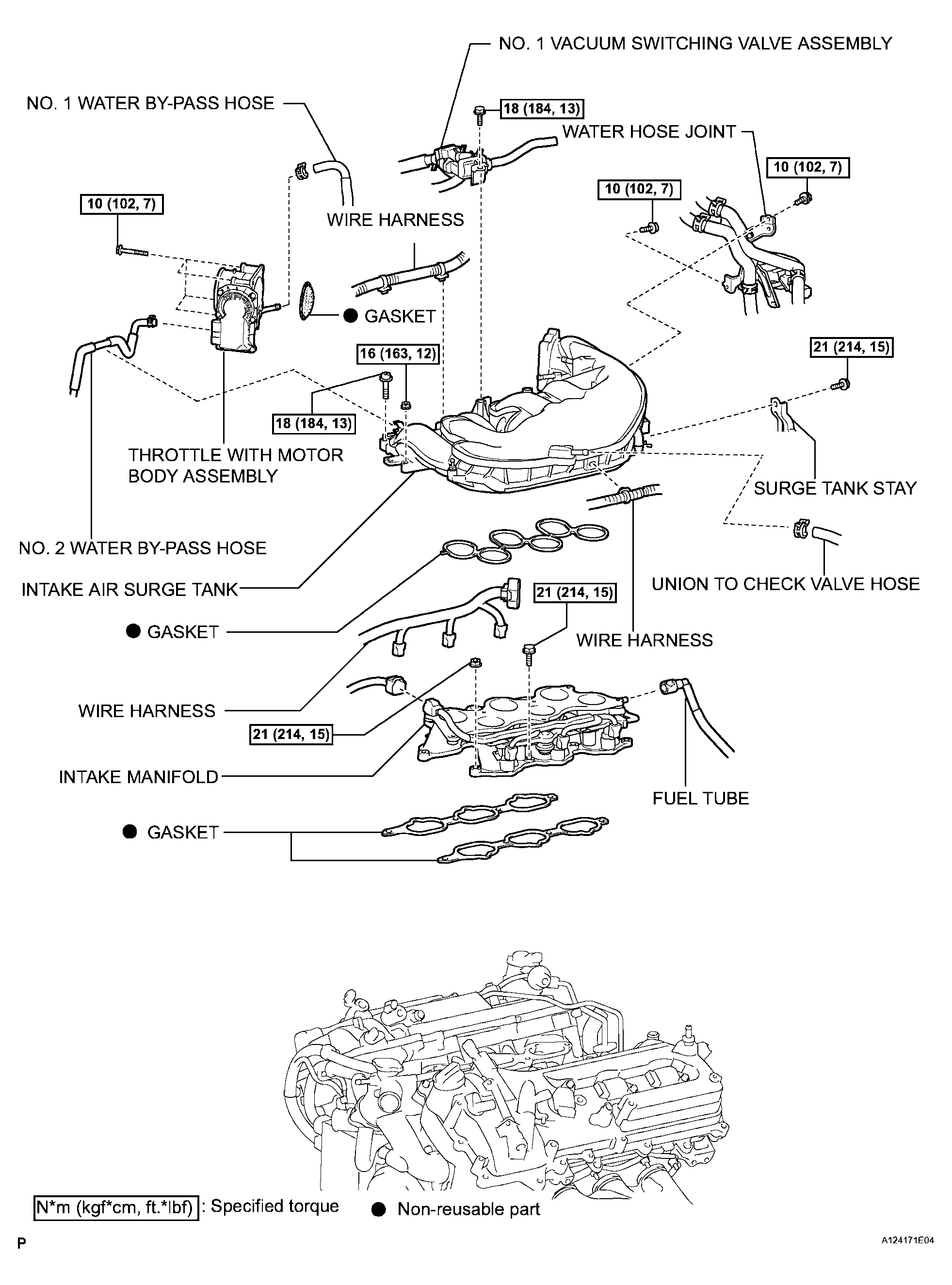

Fig 2: Exploded View Of Fuel Pressure Sensor Components With Torque Specifications (2 Of 3)
G04056476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Fuel Pressure Sensor Components With Torque Specifications (3 Of 3)
G04056477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
