Fuel Pressure Sensor: Inspection

INSPECT FUEL PRESSURE SENSOR
1. Check the fuel pressure sensor output voltage.
  1. Apply 5 V between terminals 3 (VC) and 1 (E2).
  2. Measure the voltage between terminals 2 (PR) and 1 (E2).

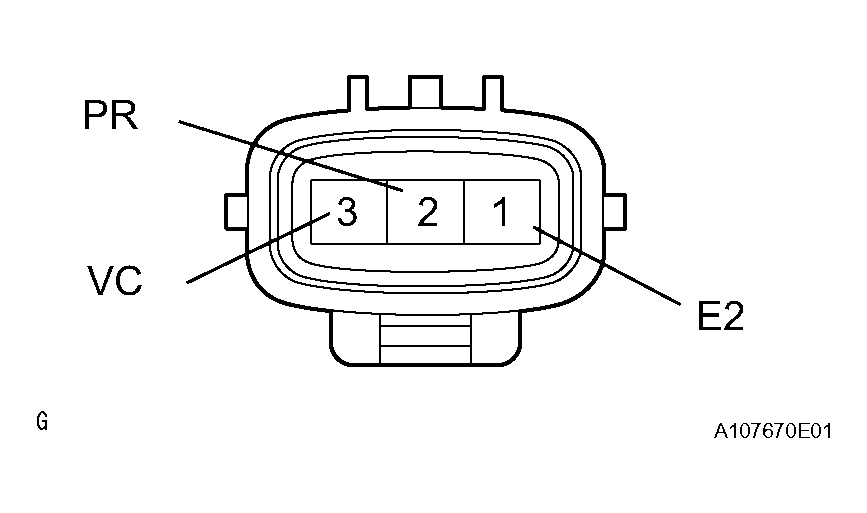

    Fig 1: Identifying Fuel Pressure Sensor Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard voltage: Approximately 0.5 V

    HINT:

    The above voltage is output when pressure is not applied (0 kPa (0 kgf*cm² )) to the sensor.
