Fuel Pump Resistor: Components

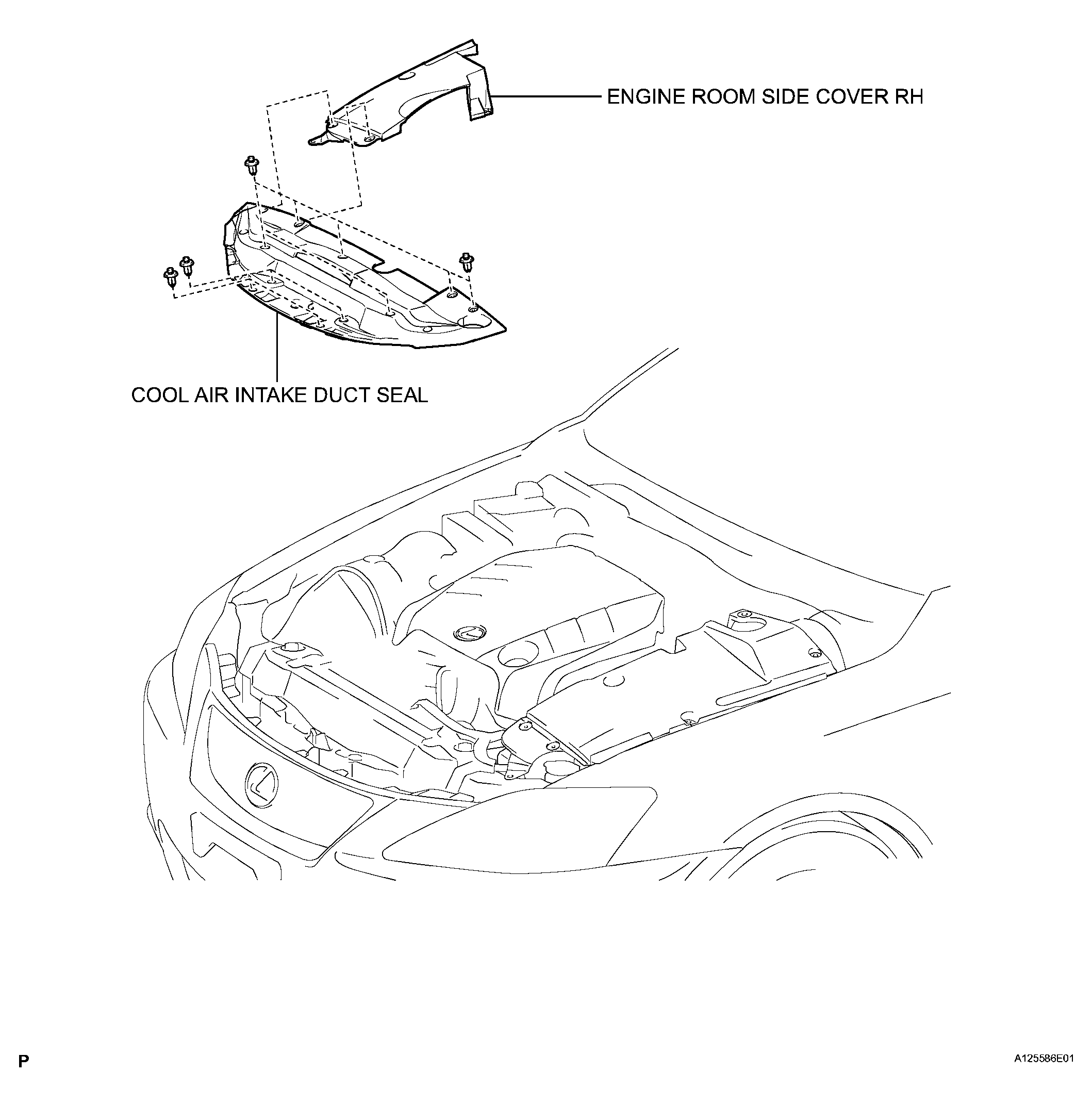

Fig 1: Fuel Pump Resistor Replacement Components With Torque Specifications (1 Of 2)
G04056540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

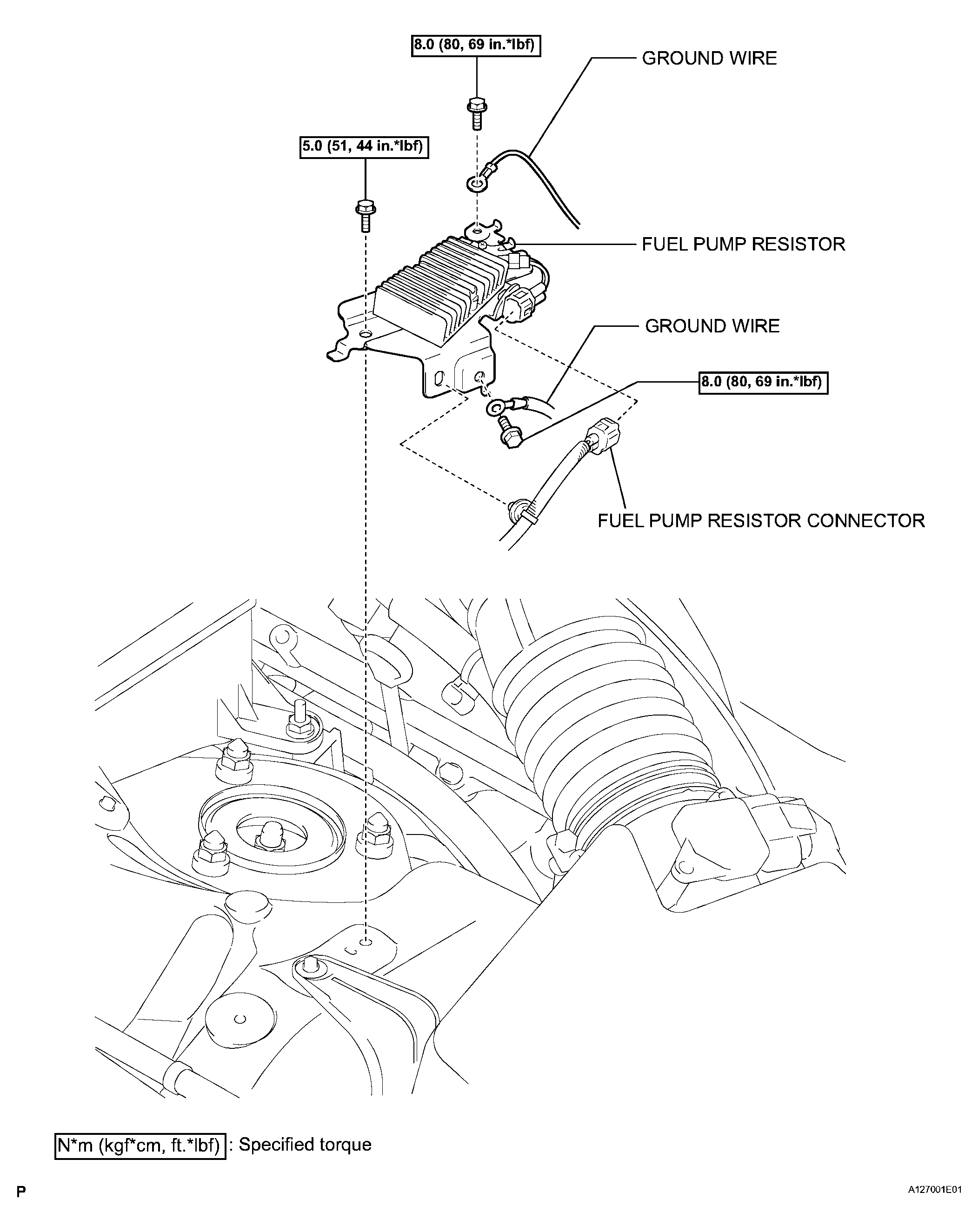

Fig 2: Fuel Pump Resistor Replacement Components With Torque Specifications (2 Of 2)
G04056541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
