Injector Driver: Installation

  1. INSTALL INJECTOR DRIVER
    1. Install the injector driver with the bolt and 2 nuts.

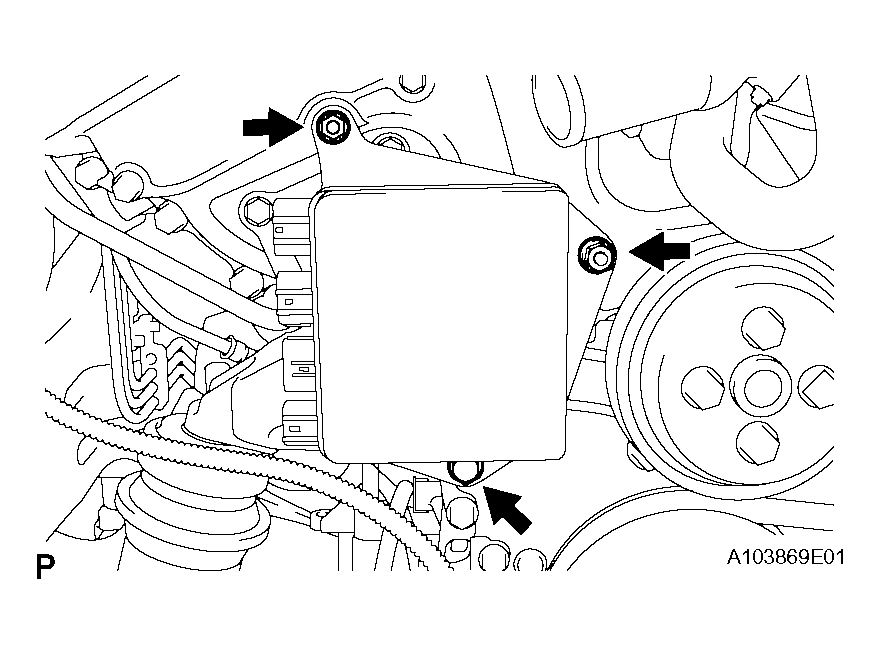

      Fig 1: Identifying Injector Driver With Bolt And Nuts
      G04056486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Be careful not to drop or strike the injector driver.
      • The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
    2. Connect the 3 connectors with wire harness locks and the connector to the injector driver. Move the lock lever in the direction indicated by the arrow to lock the connector.
  2. INSTALL NO. 1 ENGINE COVER (See  INSTALLATION  )
  3. INSTALL NO. 1 INLET AIR CLEANER (See  INSTALLATION  )
  4. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
    Fig 2: Identifying Connector
    G04056487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
