4WD Control Ecu: Components

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

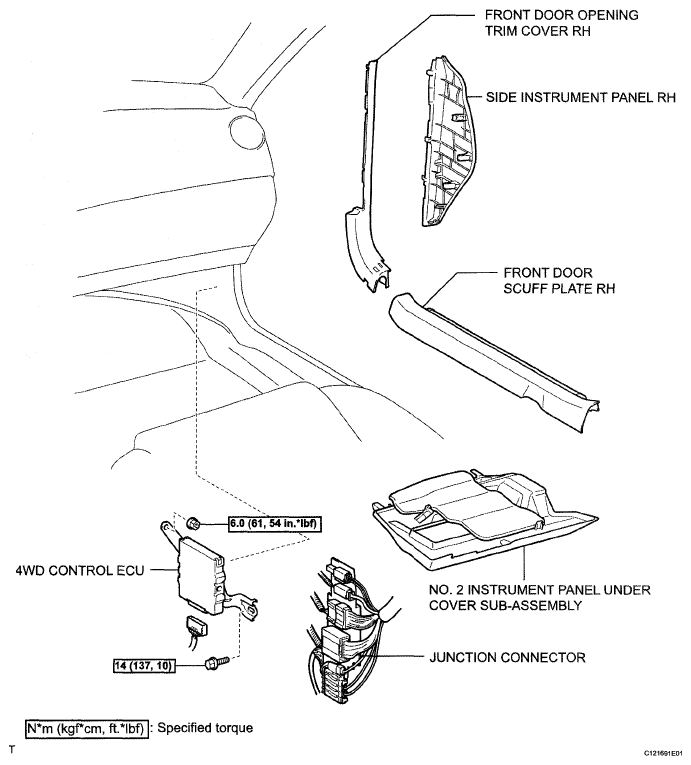

Fig 1: Identifying 4WD Control ECU Components With Toque Specifications
G05318806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
