Transfer Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Transfer Assembly Replacement Components With Toque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

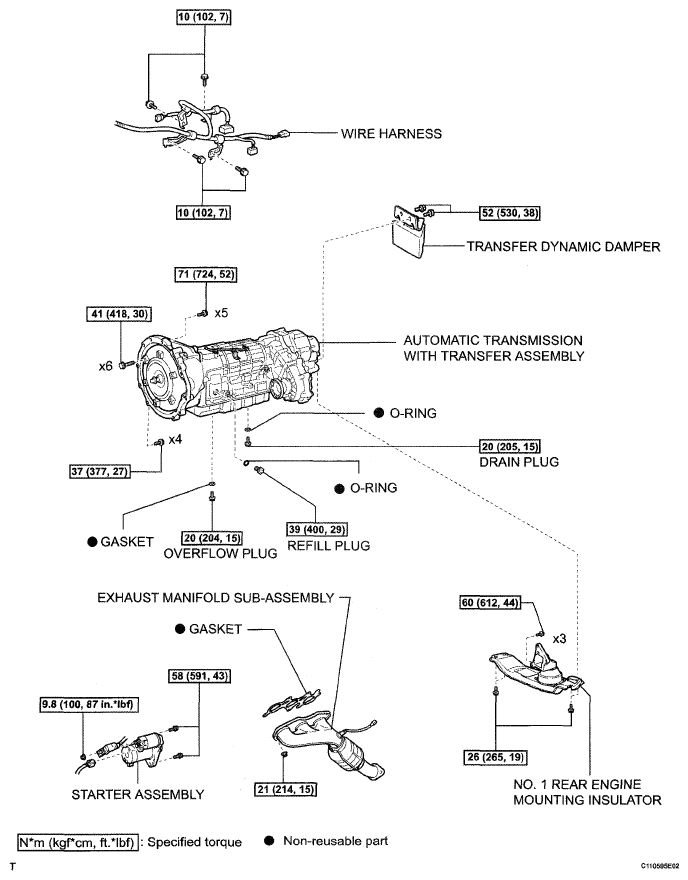

Fig 2: Identifying Transfer Assembly Replacement Components With Toque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

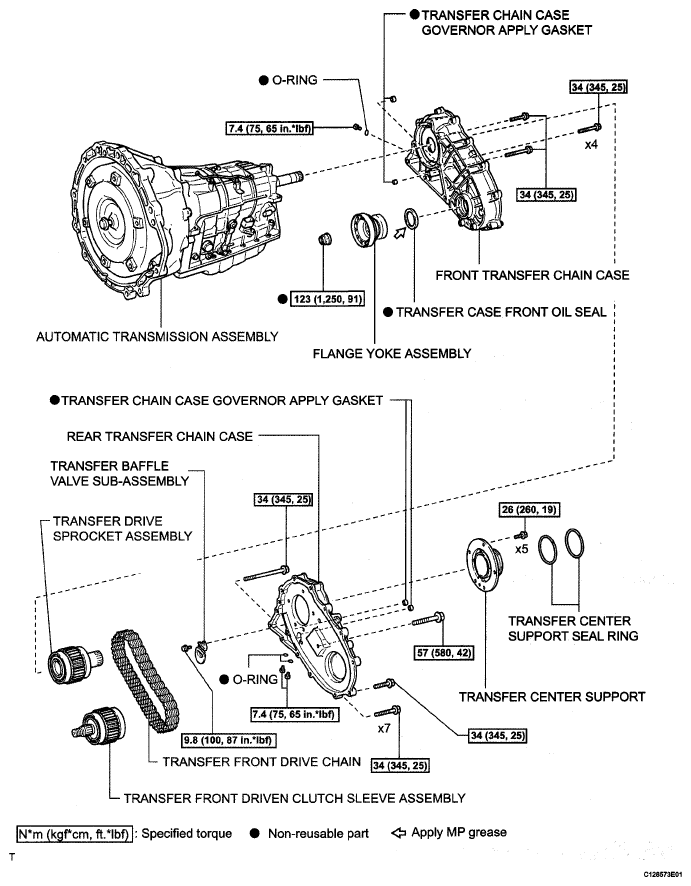

Fig 3: Identifying Transfer Assembly Replacement Components With Toque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

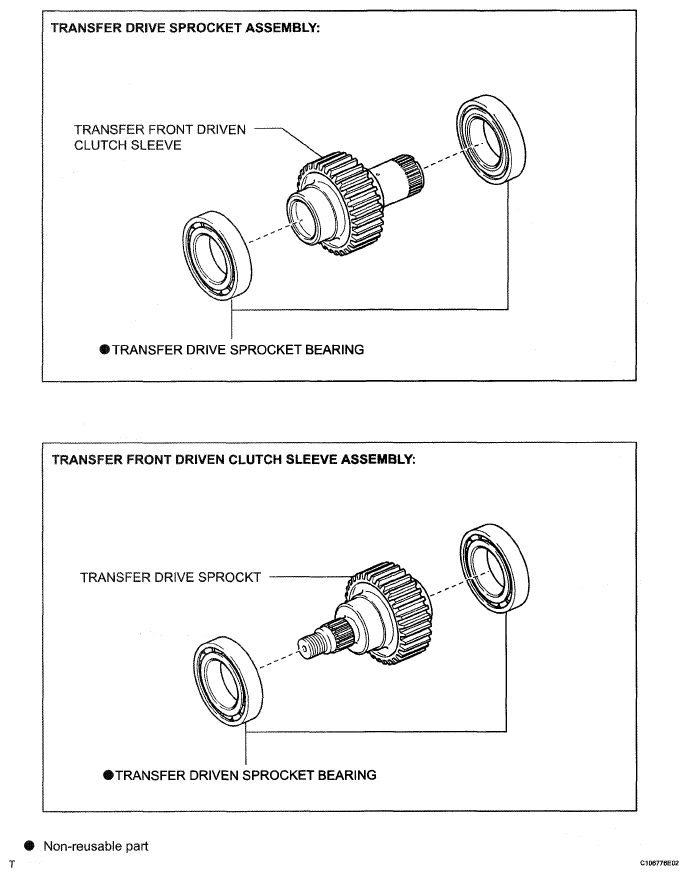

Fig 4: Identifying Transfer Assembly Replacement Components With Toque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

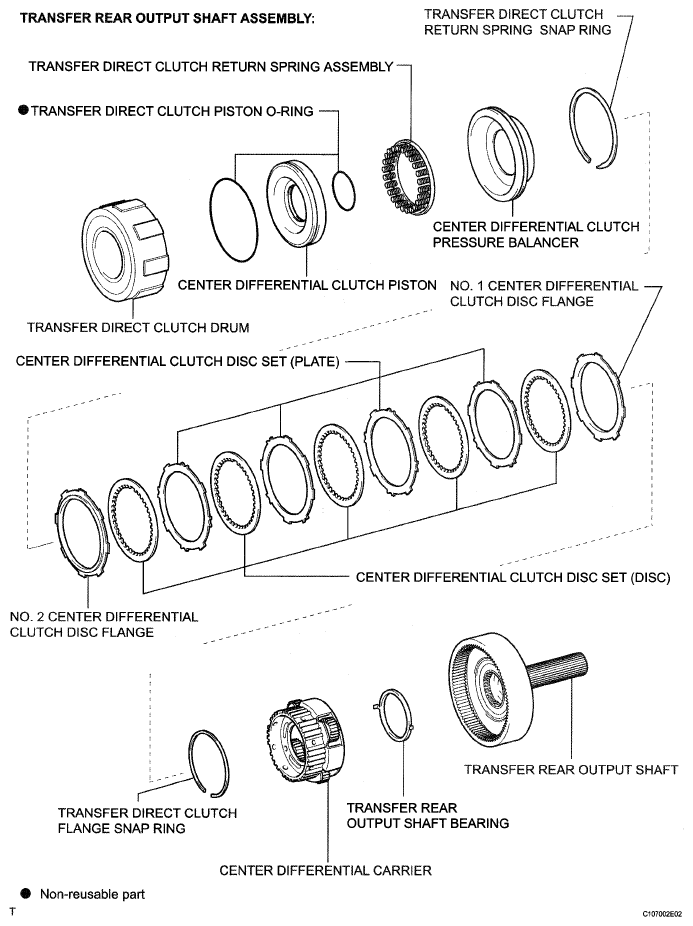

Fig 5: Identifying Transfer Assembly Replacement Components With Toque Specifications (5 Of 7)

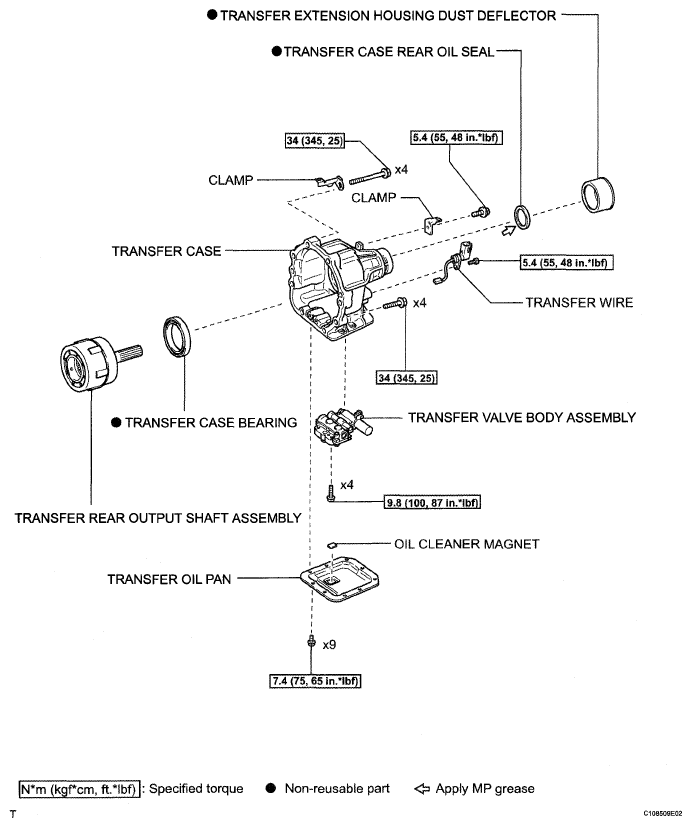

Fig 6: Identifying Transfer Assembly Replacement Components (6 Of 7)

Fig 7: Identifying Transfer Assembly Replacement Components (7 Of 7)
