Transfer Valve Body Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Transfer Valve Body Assembly Components With Toque Specifications (1 Of 2)
G05318781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

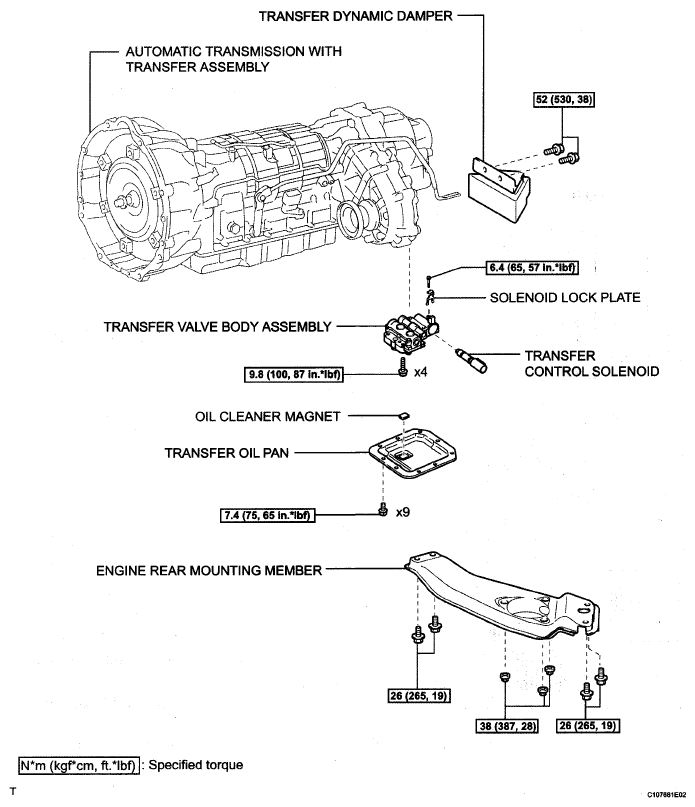

Fig 2: Identifying Transfer Valve Body Assembly Components With Toque Specifications (2 Of 2)
G05318782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
