Transfer Wire: Components

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Transfer Wire Components With Toque Specifications (1 Of 2)
G05318790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

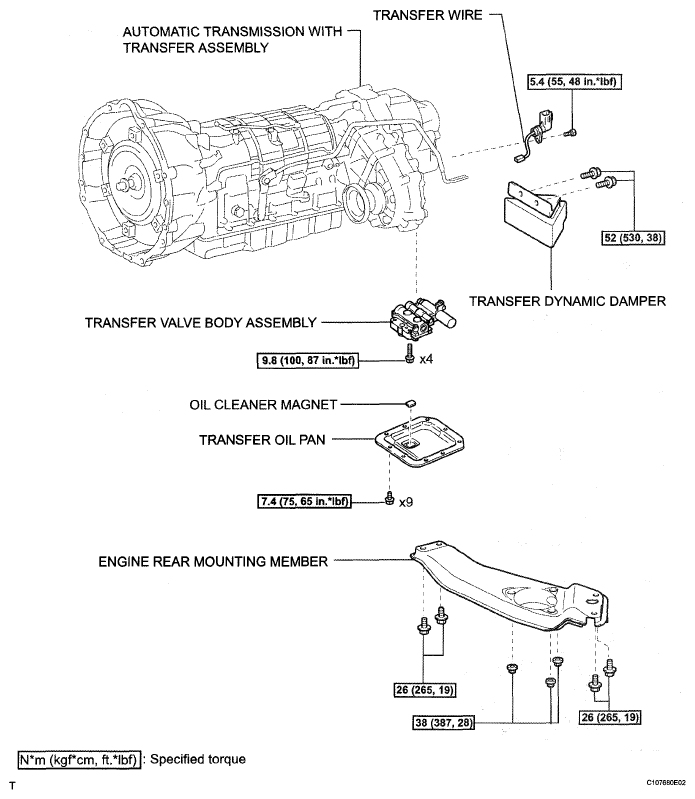

Fig 2: Identifying Transfer Wire Components With Toque Specifications (2 Of 2)
G05318791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
