Rear Seat Inner Belt Assembly: Components

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
G05320193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

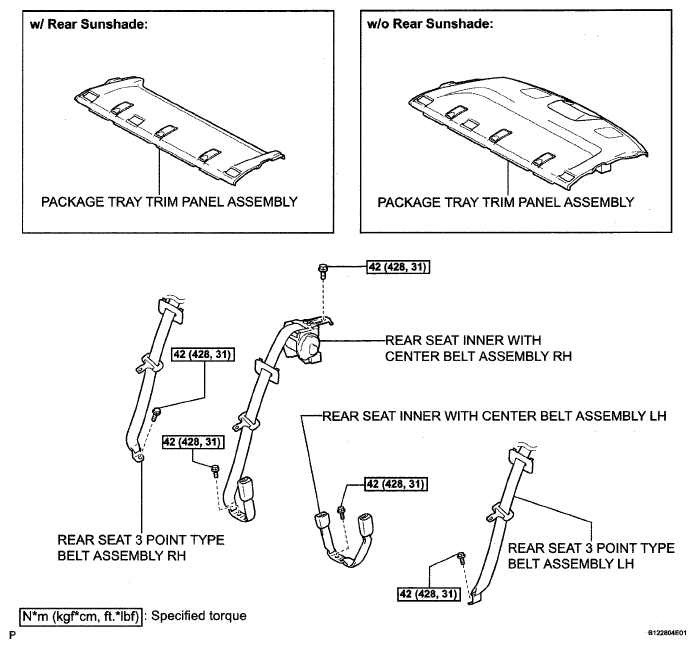

Fig 2: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05320194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
