Front Lower Ball Joint: Inspection
- INSPECT FRONT LOWER BALL JOINT
- Inspect the turning of the front lower ball joint.

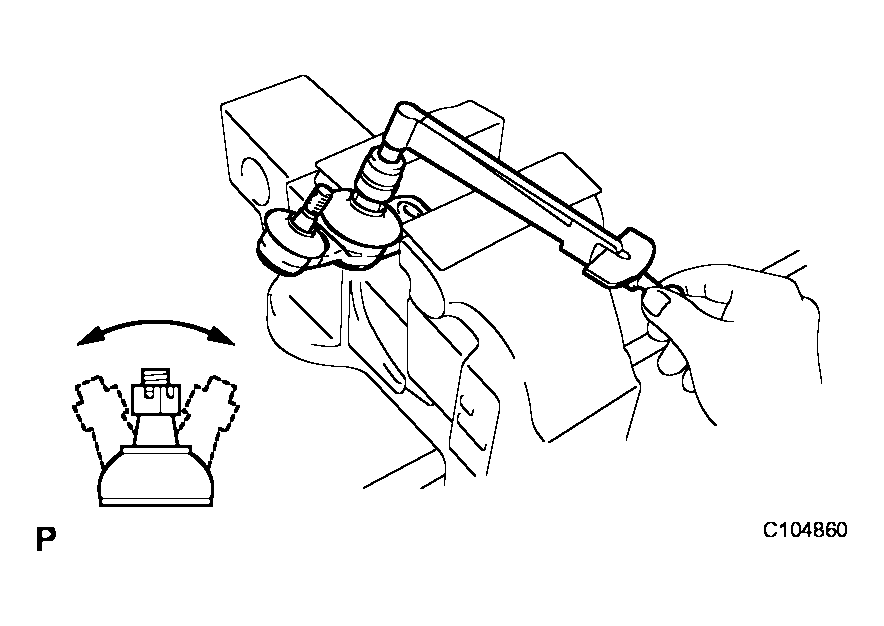

- Flip the ball joint stud back and forth 5 times as shown in Fig 1 .
- Temporarily install the nut, and use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque:
0.5 to 6.0 N*m (5.1 to 61 kgf*cm, 4.4 to 53 in.*lbf)
- Inspect the turning of the tie rod ball joint.
- Flip the ball joint stud back and forth 5 times as shown in Fig 1 .
- Temporarily install the nut, and use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque:
0.8 to 4.5 N*m (8.2 to 45.9 kgf*cm, 7.1 to 39.8 in.*lbf) or less
- Check the dust boots for cracks or grease leakage. If the value is not within the specified range, replace the front lower ball joint with a new one.
- Inspect the turning of the front lower ball joint.
