Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - BODY GROUND)
    1. Disconnect the steering pad switch connector and spiral cable connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      HARNESS AND CONNECTOR (SPIRAL CABLE - BODY GROUND) STANDARD RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      2 - Body ground Below 1 Ω
      Fig 1: Identifying Spiral Cable - Body Ground
      G05316907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      SPIRAL CABLE SUB-ASSEMBLY STANDARD RESISTANCE SPECIFICATIONS

      Tester Connection Condition Specified Condition
      J24-2 - k1-6 Always Below 1 Ω
      J24-9 - k1 - 2 Always Below 1 Ω
      J24-10 - k1 -3 Always Below 1 Ω

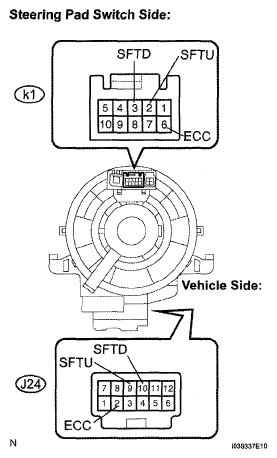

      Fig 2: Identifying Spiral Cable Sub-Assembly
      G05316908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

    OK: Go to next step

  3. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Disconnect the switch wire connector from the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

      Standard resistance

      TRANSMISSION SHIFT SWITCH ASSEMBLY STANDARD RESISTANCE SPECIFICATIONS

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Upshift) SFTU - ECC Below 1 Ω
      Release "+" (Upshift) ↑ 10 kΩ or higher
      Pull continuously (Down shift) SFTD - ECC Below 1 Ω
      Release (Downshift) ↑ 10 kΩ or higher
      Fig 3: Identifying Transmission Shift Switch Assembly
      G05316909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY

    OK: Go to next step

  4. INSPECT SWITCH WIRE
    1. Connect the switch wire connector to the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

      Standard resistance

      SWITCH WIRE STANDARD RESISTANCE SPECIFICATIONS

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Up shift) 2 - 6 Below 1 Ω
      Release "+" (Up shift) ↑ 10 kΩ. or higher
      Pull continuously "-" (Down shift) 3 - 6 Below 1 Ω
      Release "-" (Down shift) ↑ 10 kΩ or higher
      Fig 4: Identifying Switch Wire
      G05316910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE SWITCH WIRE

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - ECM)
    1. Connect the spiral cable connector and steering pad switch connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below when the paddle shift is moved to each position.

      Standard resistance

      HARNESS AND CONNECTOR (SPIRAL CABLE - ECM) STANDARD RESISTANCE SPECIFICATIONS

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Up shift) A6-30 (SFTU) - Body ground Below 1 Ω
      Release "+" (Up shift) ↑ 10 kΩ or higher
      Pull continuously (Down shift) A6-19 (SFTD) - Body ground Below 1 Ω
      Release "-" (Down shift) ↑ 10 kΩ or higher
      Fig 5: Identifying ECM A6 Connector
      G05316911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
