Torque Converter And Drive Plate: Components

Fig 1: Torque Converter And Drive Plate Replacement Components With Torque Specifications (1 Of 3)
G05317087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Torque Converter And Drive Plate Replacement Components With Torque Specifications (2 Of 3)
G05317088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

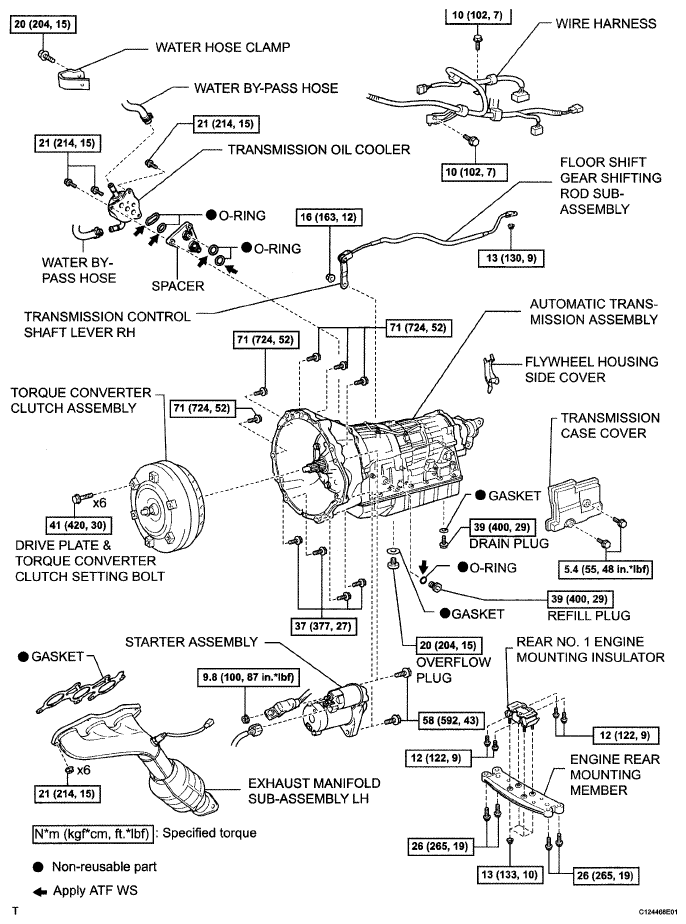

Fig 3: Torque Converter And Drive Plate Replacement Components With Torque Specifications (3 Of 3)
G05317089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
