Wireless Door Lock Control System

CUSTOMIZE PARAMETERS

CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER OR TECHSTREAM (REFERENCE)

NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first male sure that the function is set to the default setting.

a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester on.
d. Enter the following menus:
1. Intelligent tester - Select: CUSTOMIZE /
2. Techstream - Select: Customize Setting /

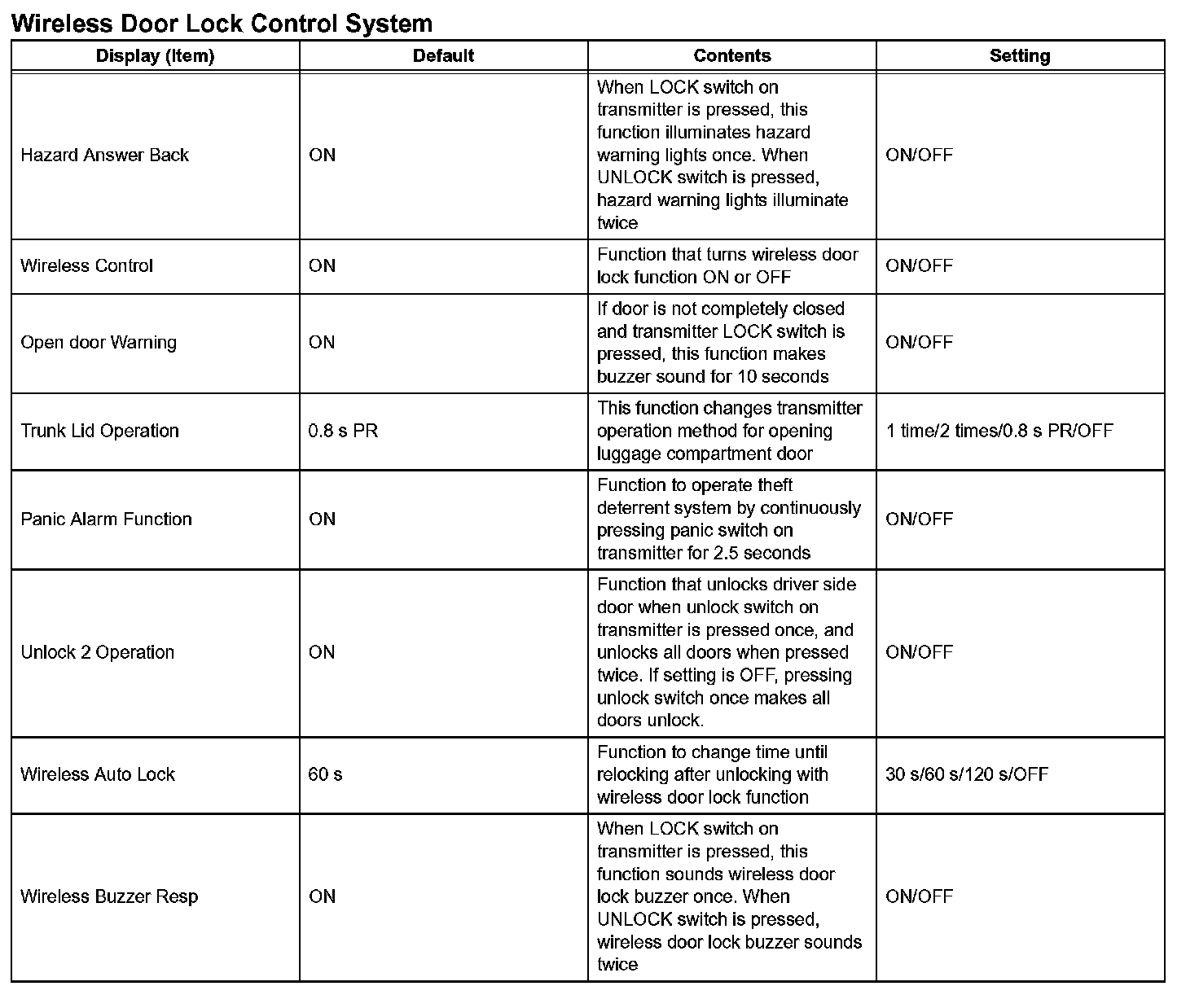

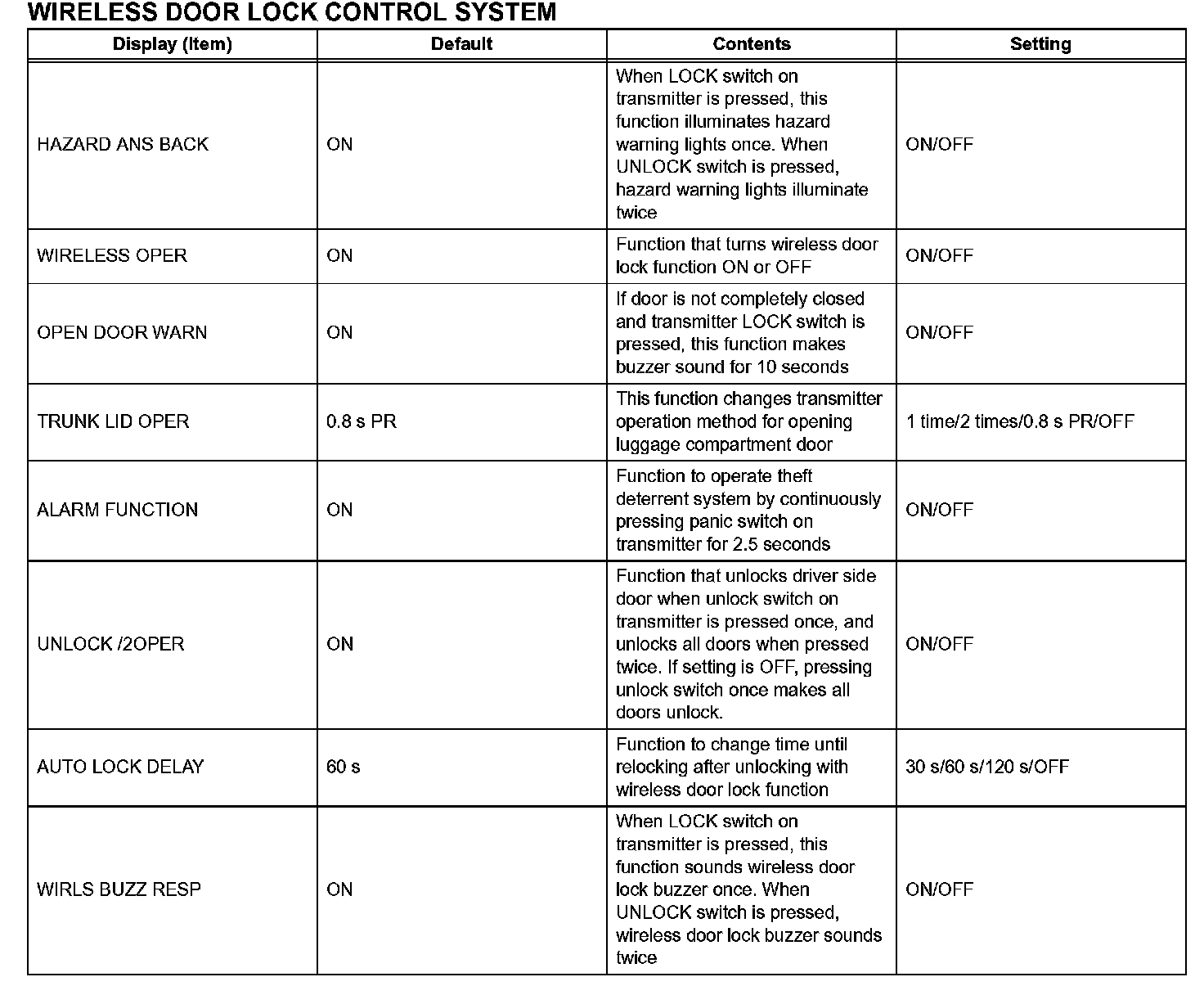

e. Select the setting by referring to the table given.




1. Intelligent tester




2. Techstream
