Active Test

ACTIVE TEST

HINT: Using the intelligent tester or Techstream to perform the Active Tests allows relays, VSVs and actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester on.
d. Enter the following menus:
1. Intelligent tester - Select: DIAGNOSIS / OBD/MOBD / SMART ACCESS (Certification ECU) / ACTIVE TEST /
2. Techstream - Select: Body / Smart Access (Certification ECU) / Active Test /

e. According to the display on tester, perform the "Active Test".

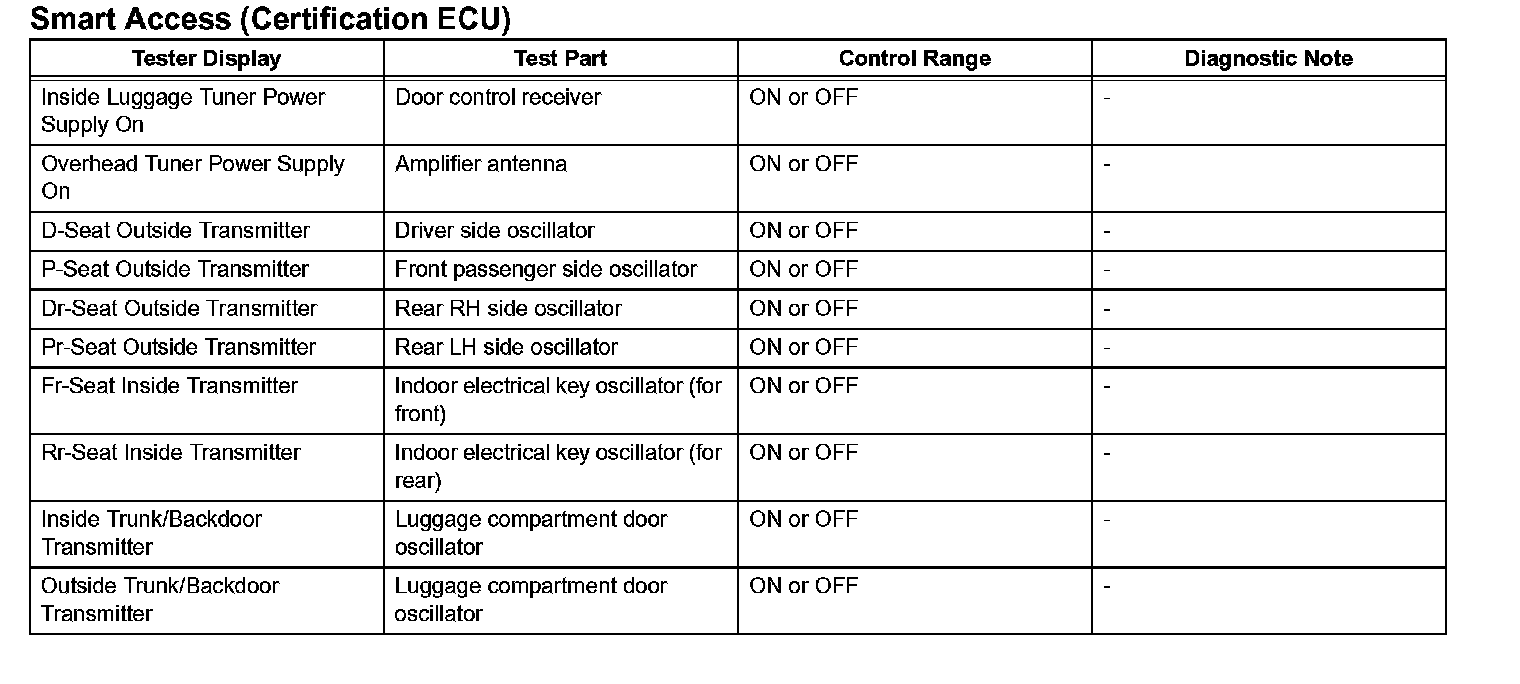

1. Intelligent tester

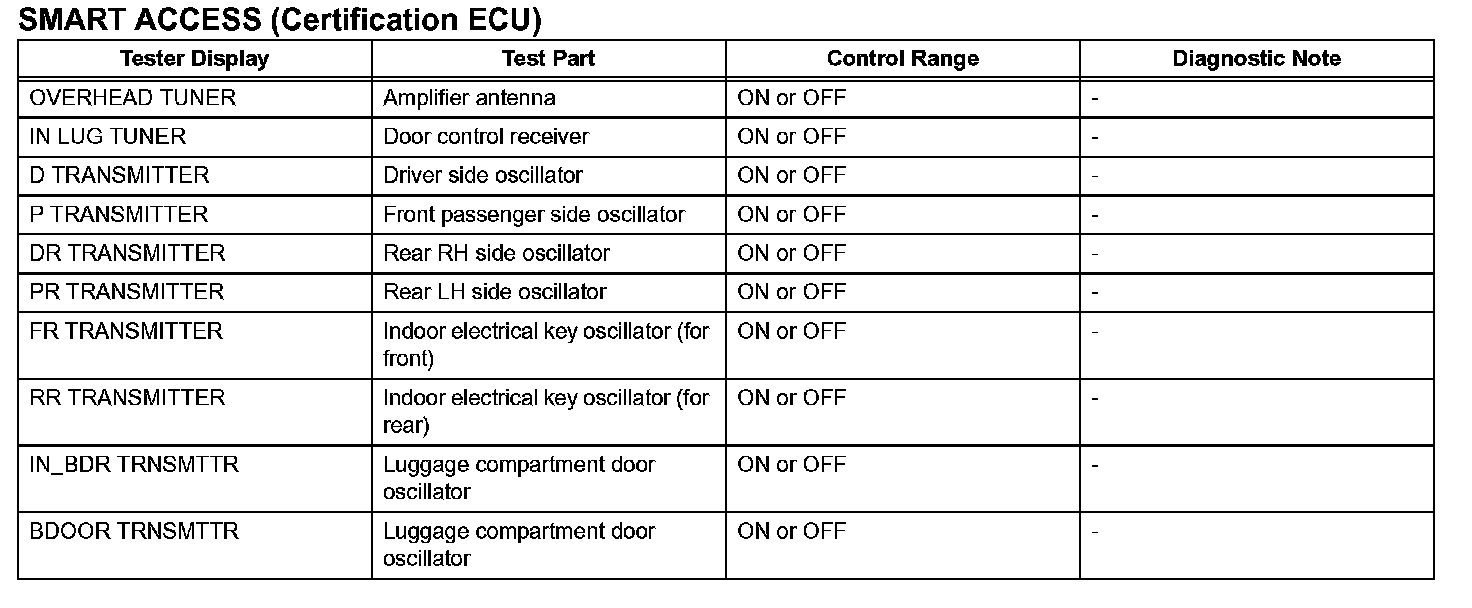

2. Techstream
