Data List

DATA LIST

HINT: Using the intelligent tester or Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTE: In the table given, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

a. Connect the intelligent tester or Techstream to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester on.
d. Enter the following menus:
1. Intelligent tester - Select: DIAGNOSIS / OBD/MOBD / (desired system) / DATA LIST / ALL /
2. Techstream - Select: Body / (desired system) / Data List /

e. According to the display on tester, read the "Data List".

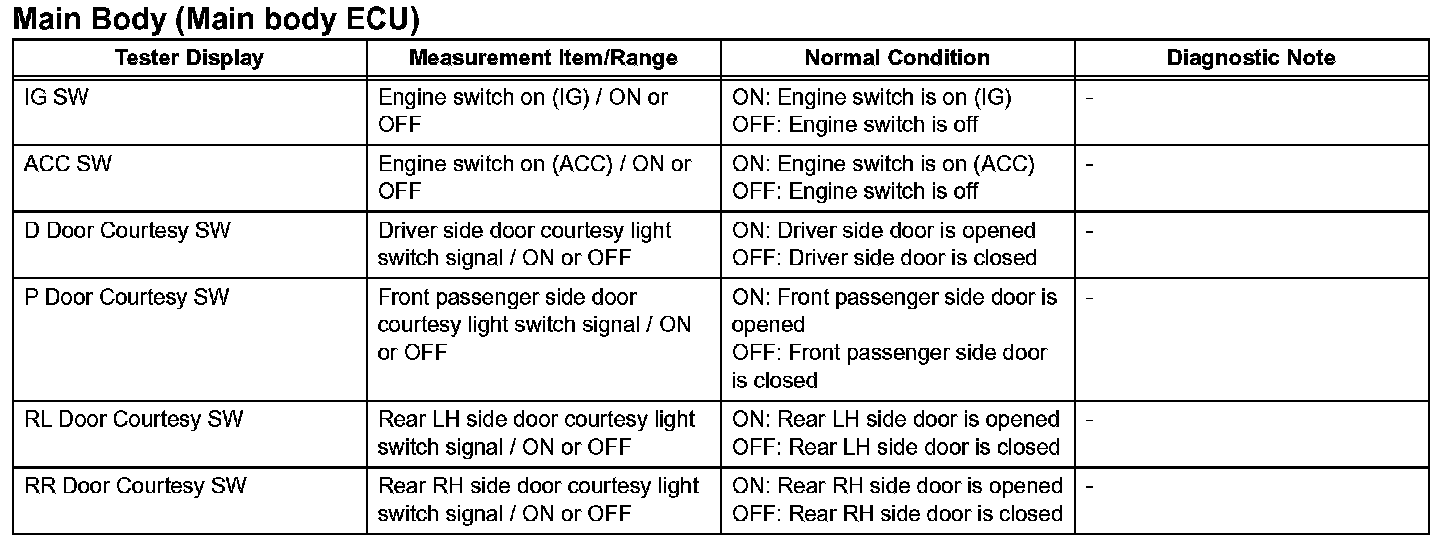

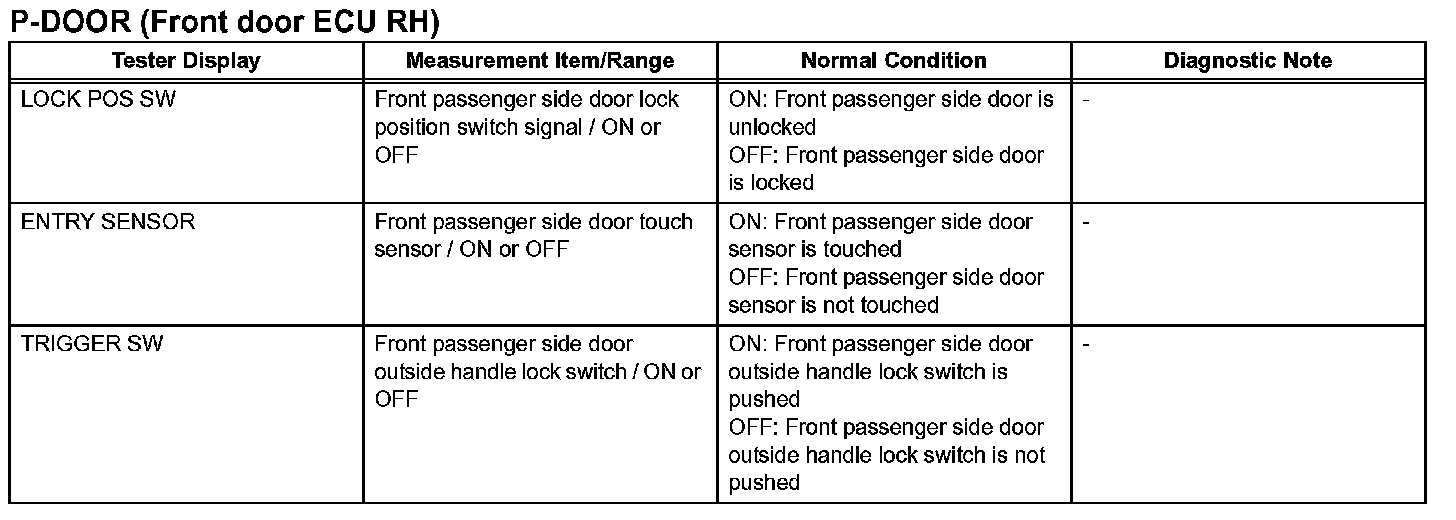

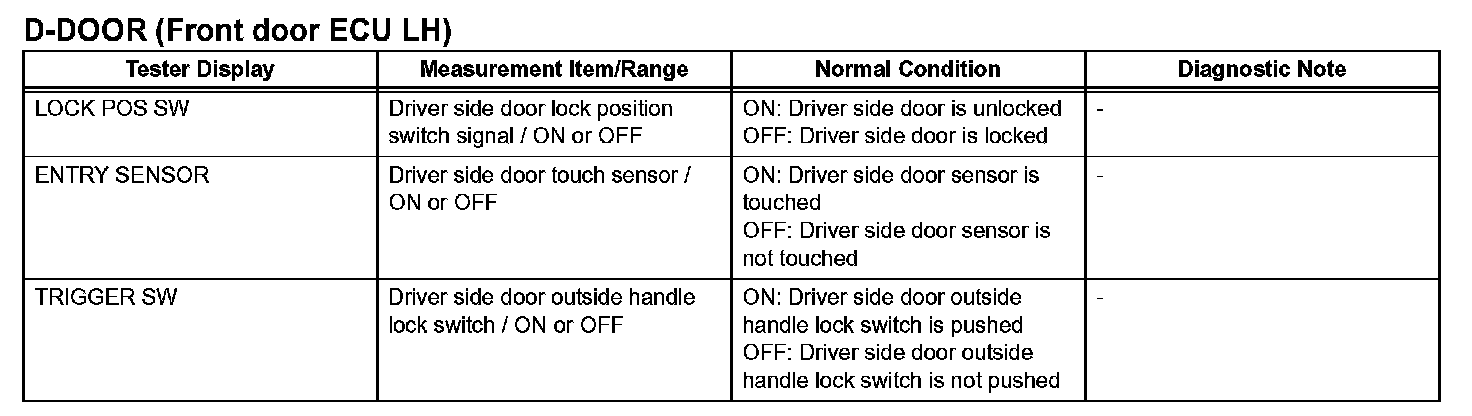

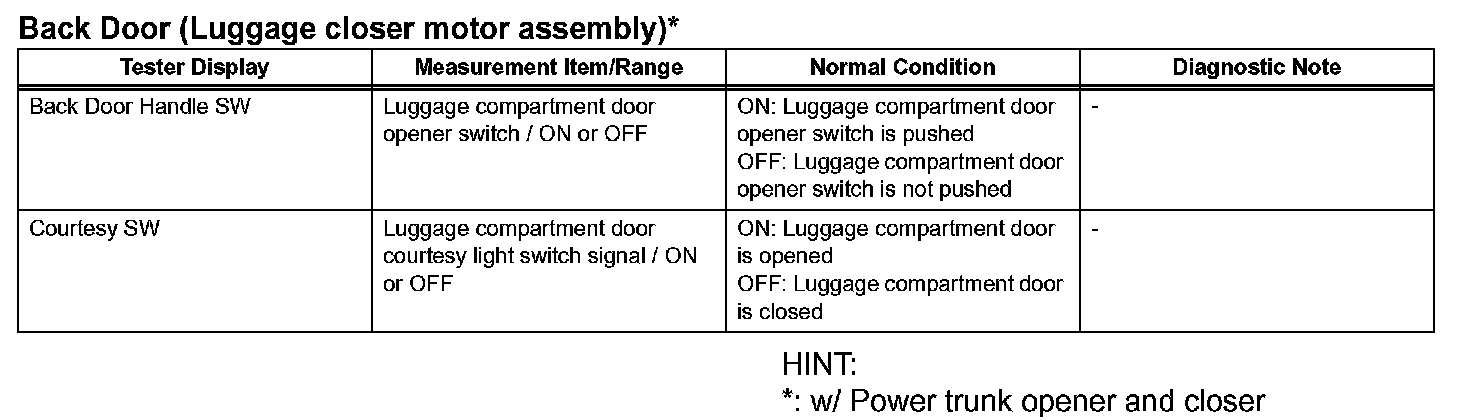

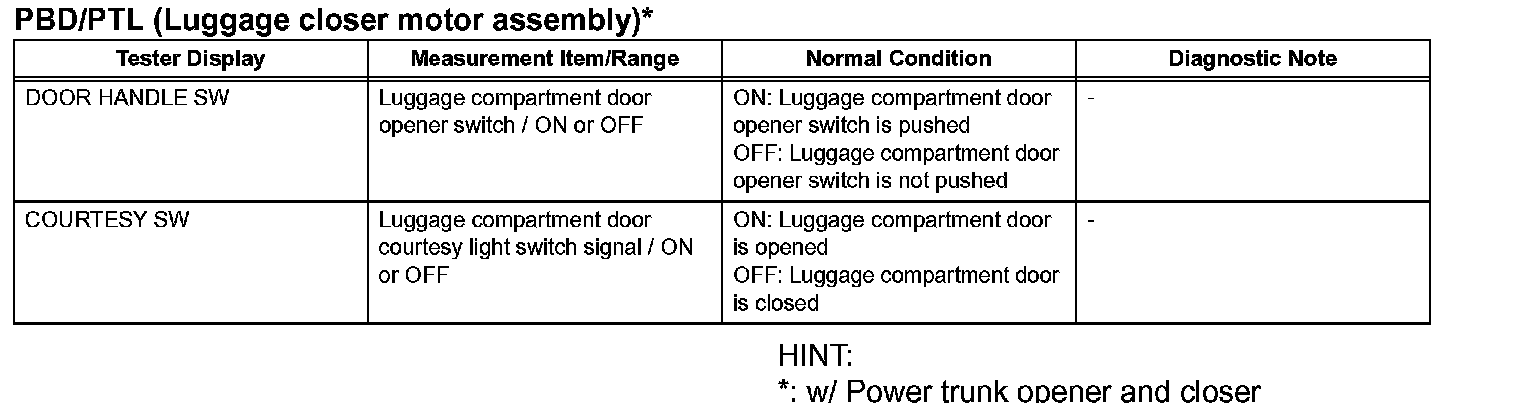

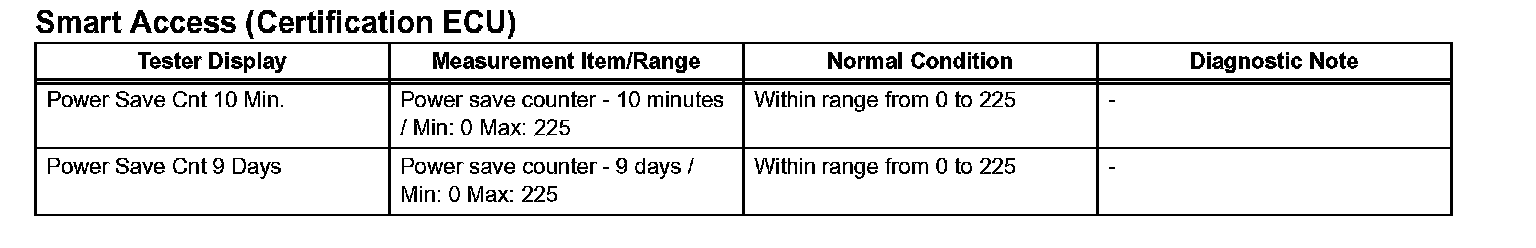

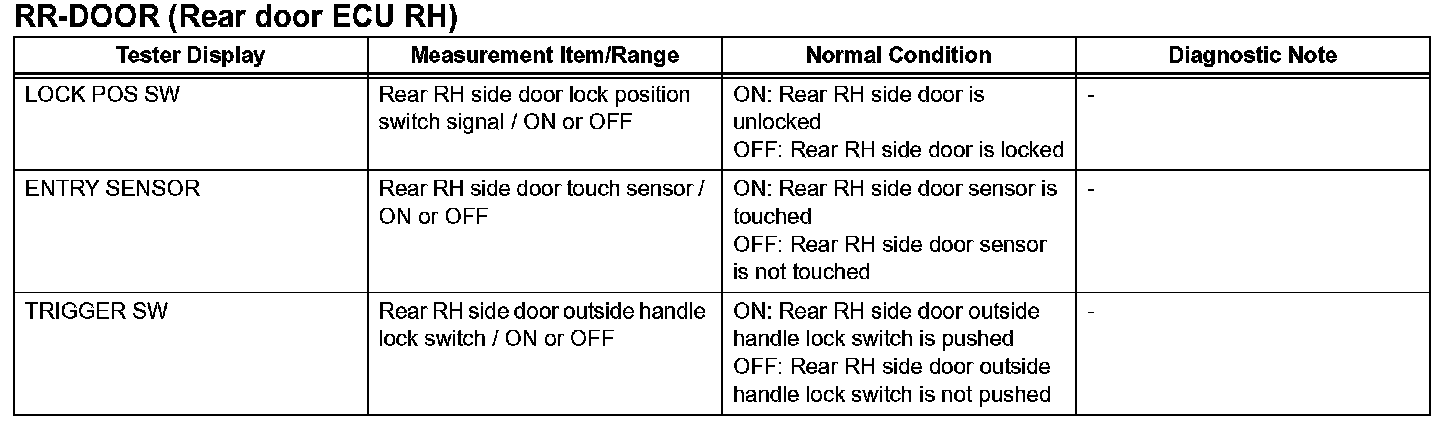

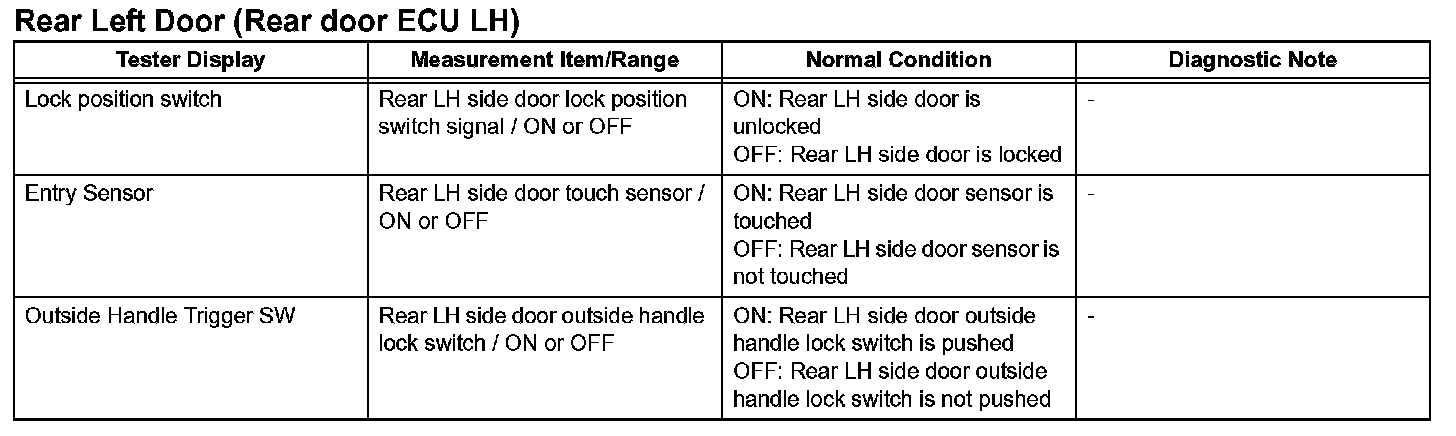

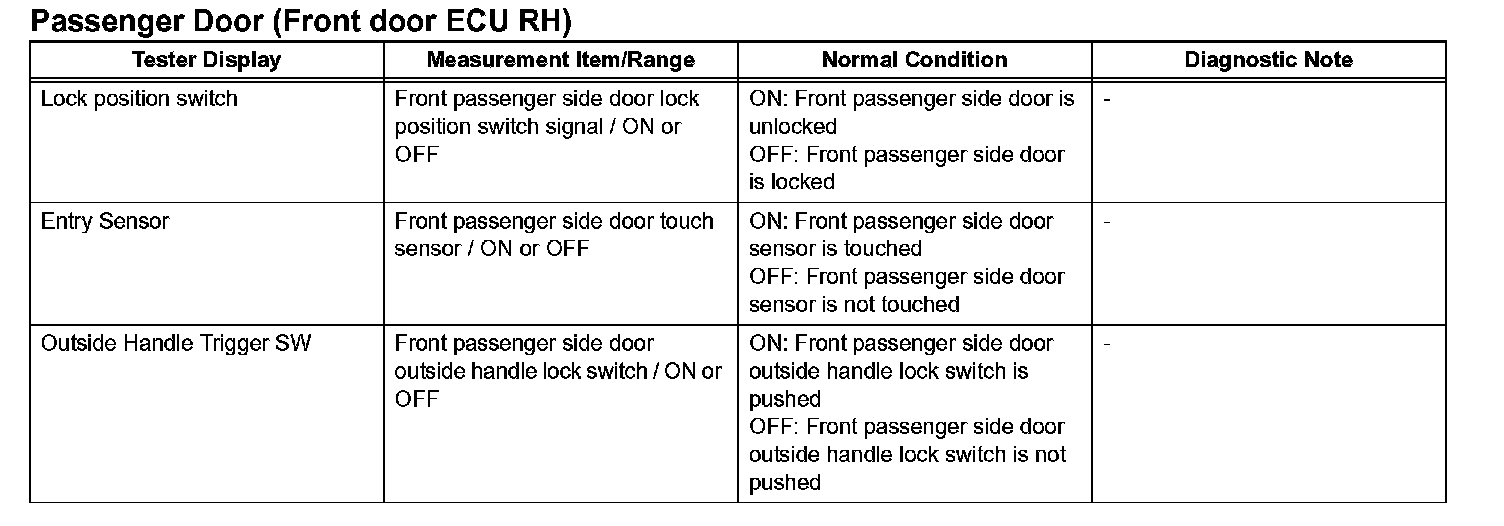

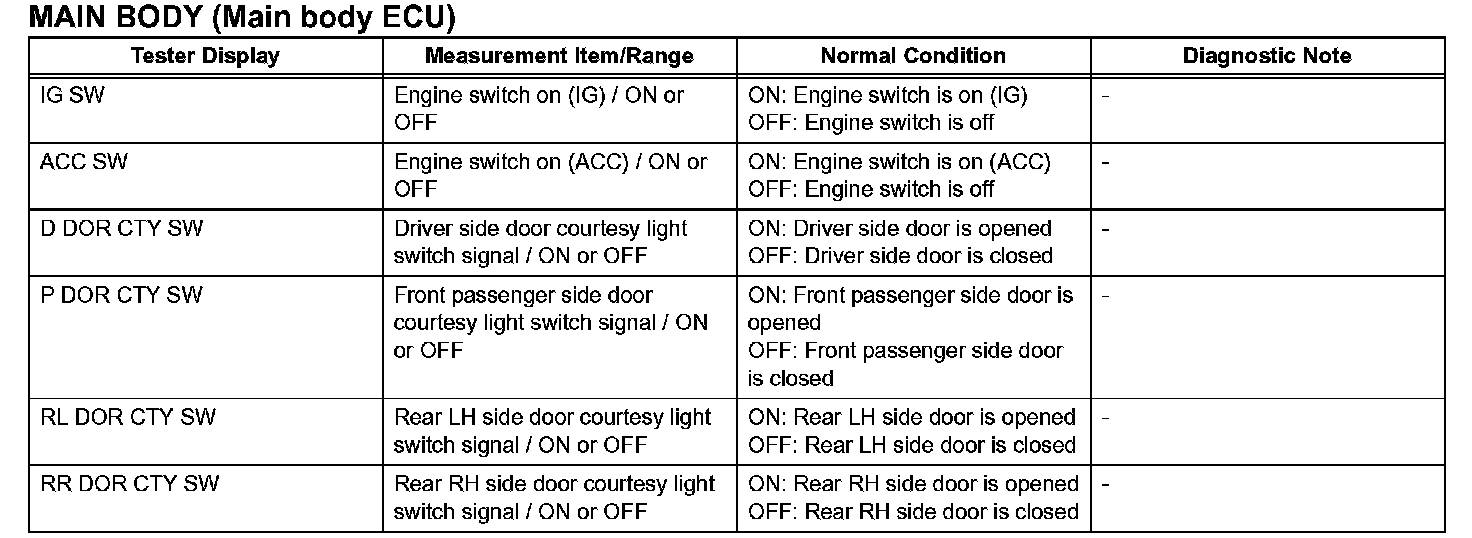

Part 1:

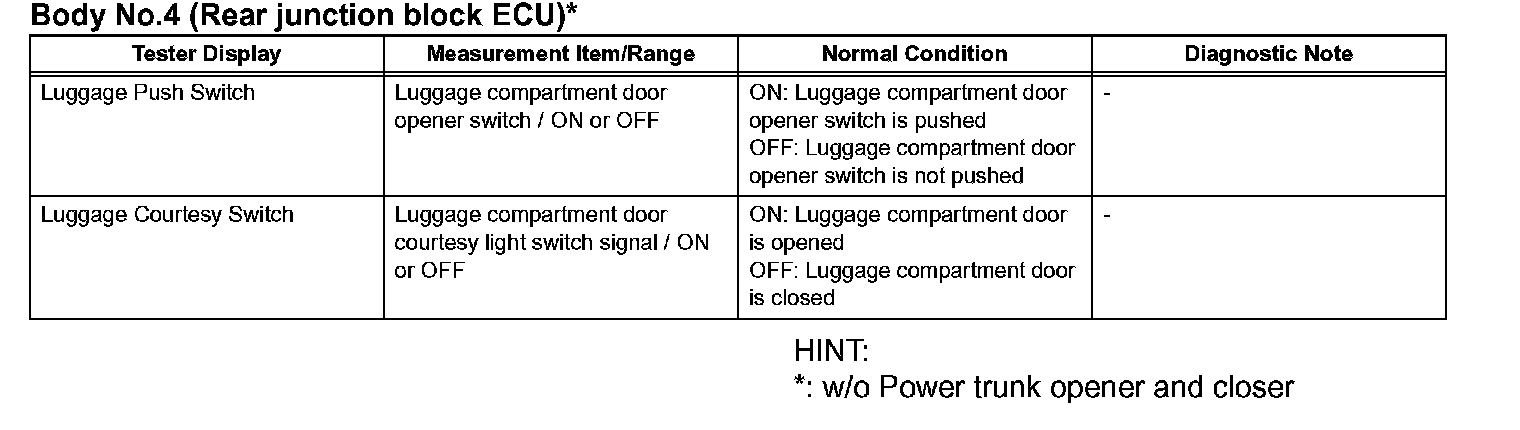

Part 2:

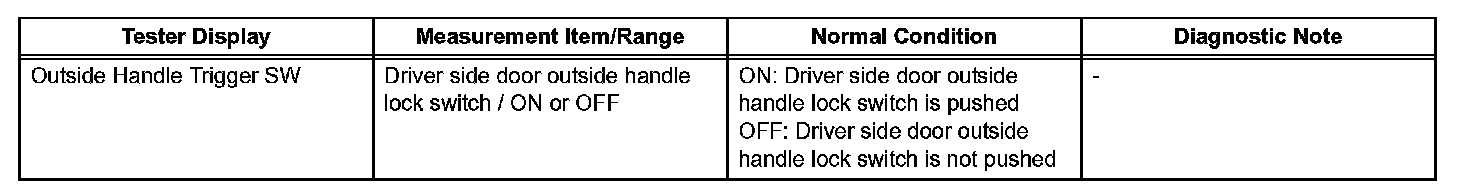

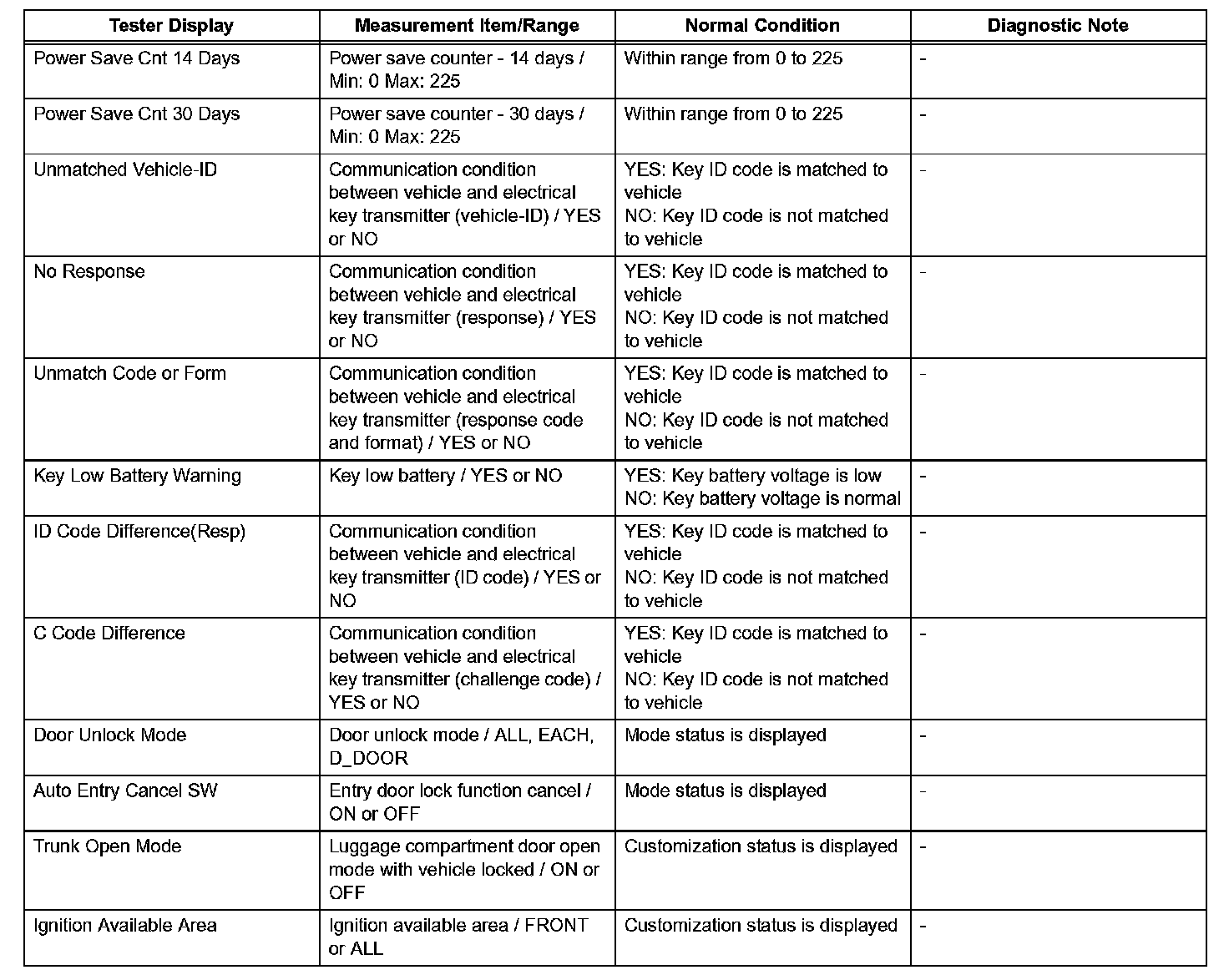

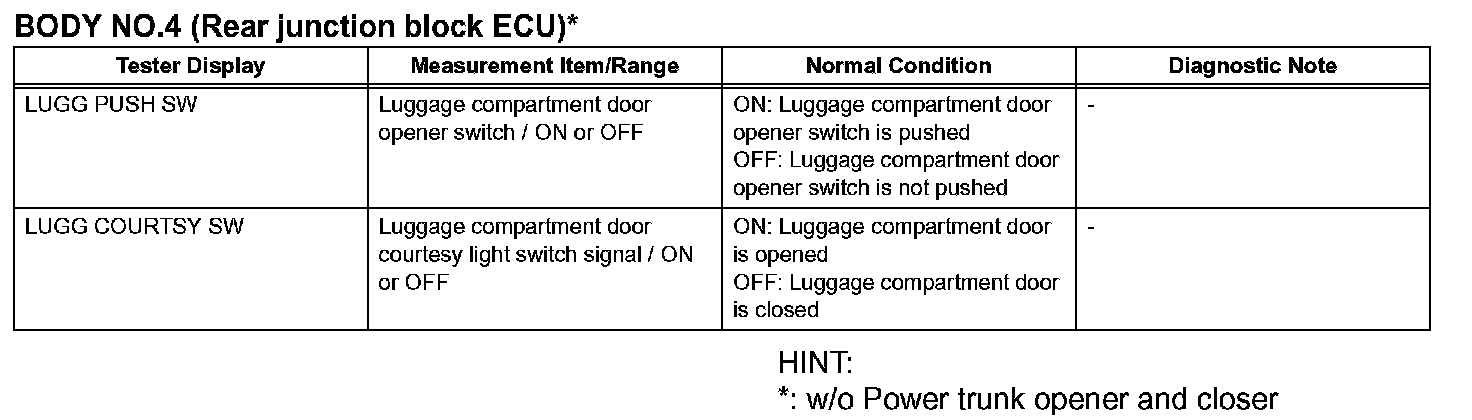

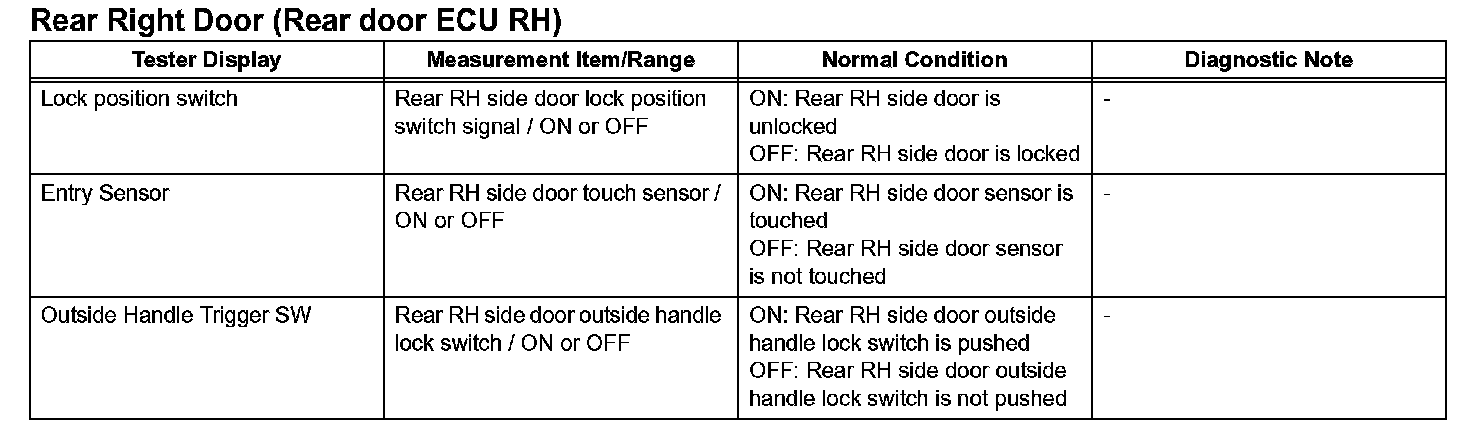

1. Intelligent tester

Part 1:

Part 2:

Part 1:

Part 2:

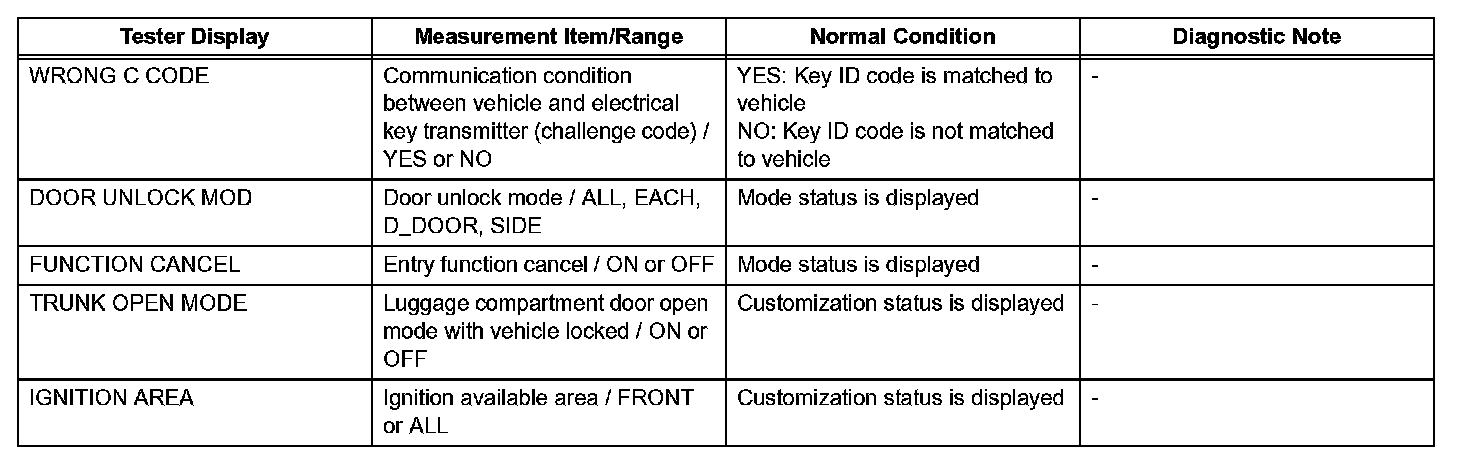

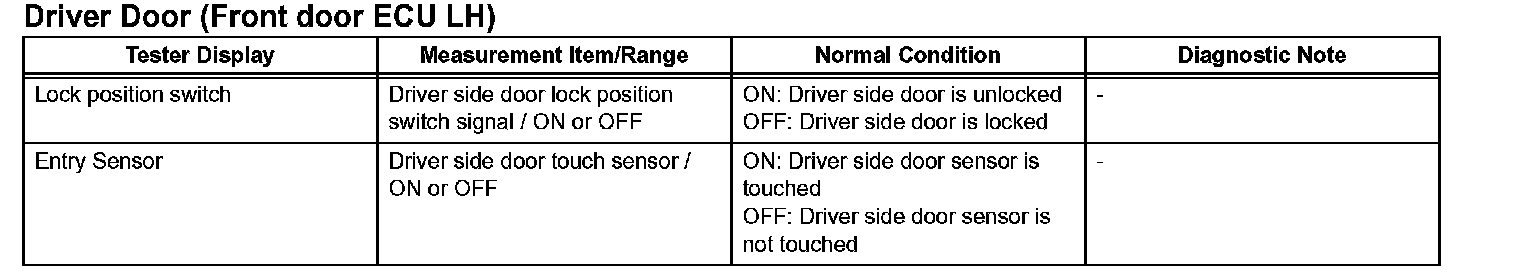

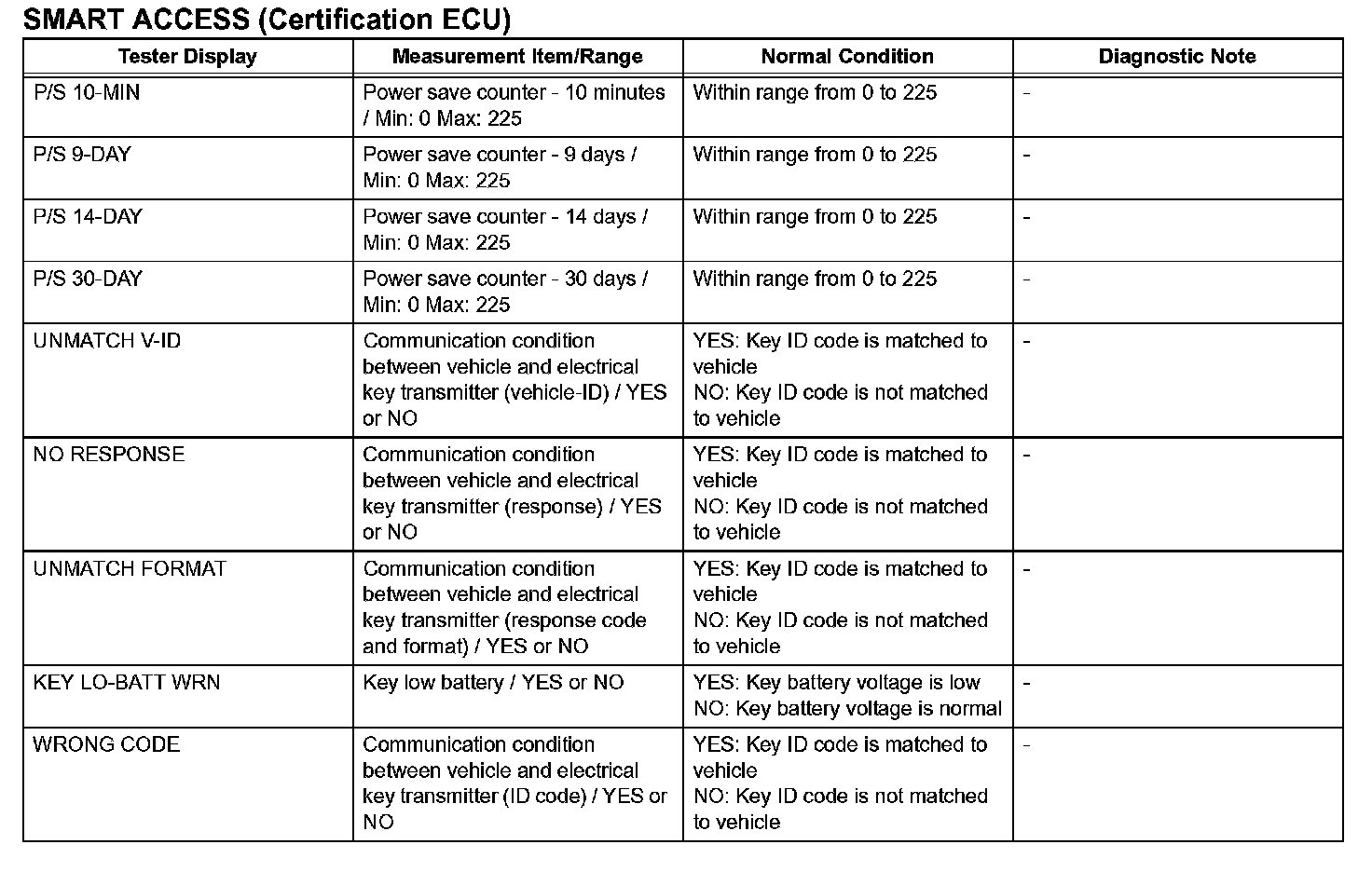

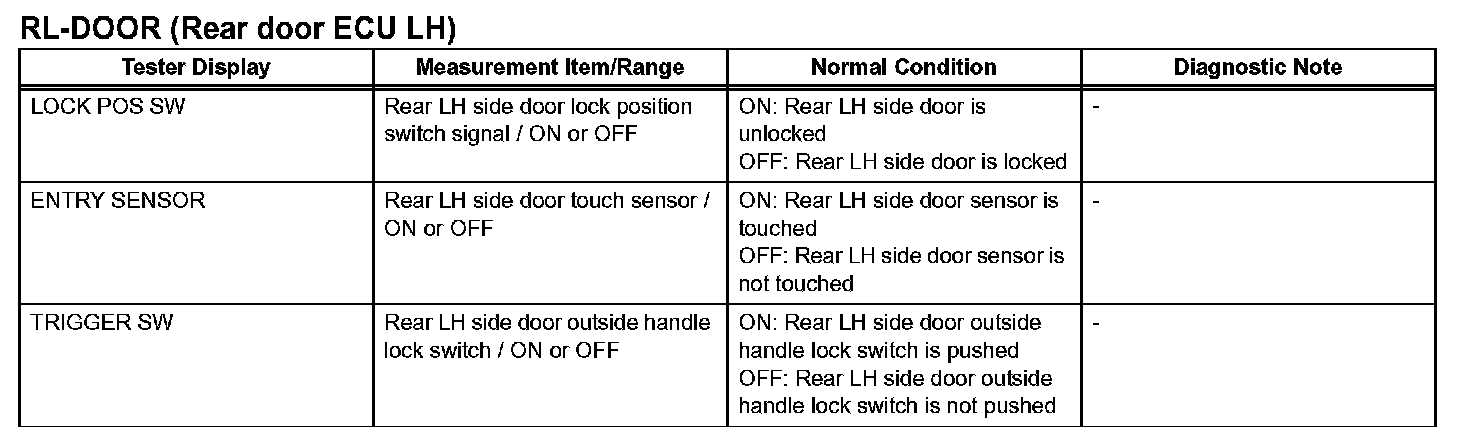

2. Techstream
