Key Luggage Compartment Lock-In Prevention Function Does Not Operate

Key Luggage Compartment Lock-in Prevention Function does not Operate

DESCRIPTION
If the entry luggage compartment lock-in prevention function does not operate, either of the following may be the cause: 1) communication between the indoor electrical key oscillator (for luggage room) and electrical key transmitter cannot be performed; or 2) a malfunction in the certification ECU.

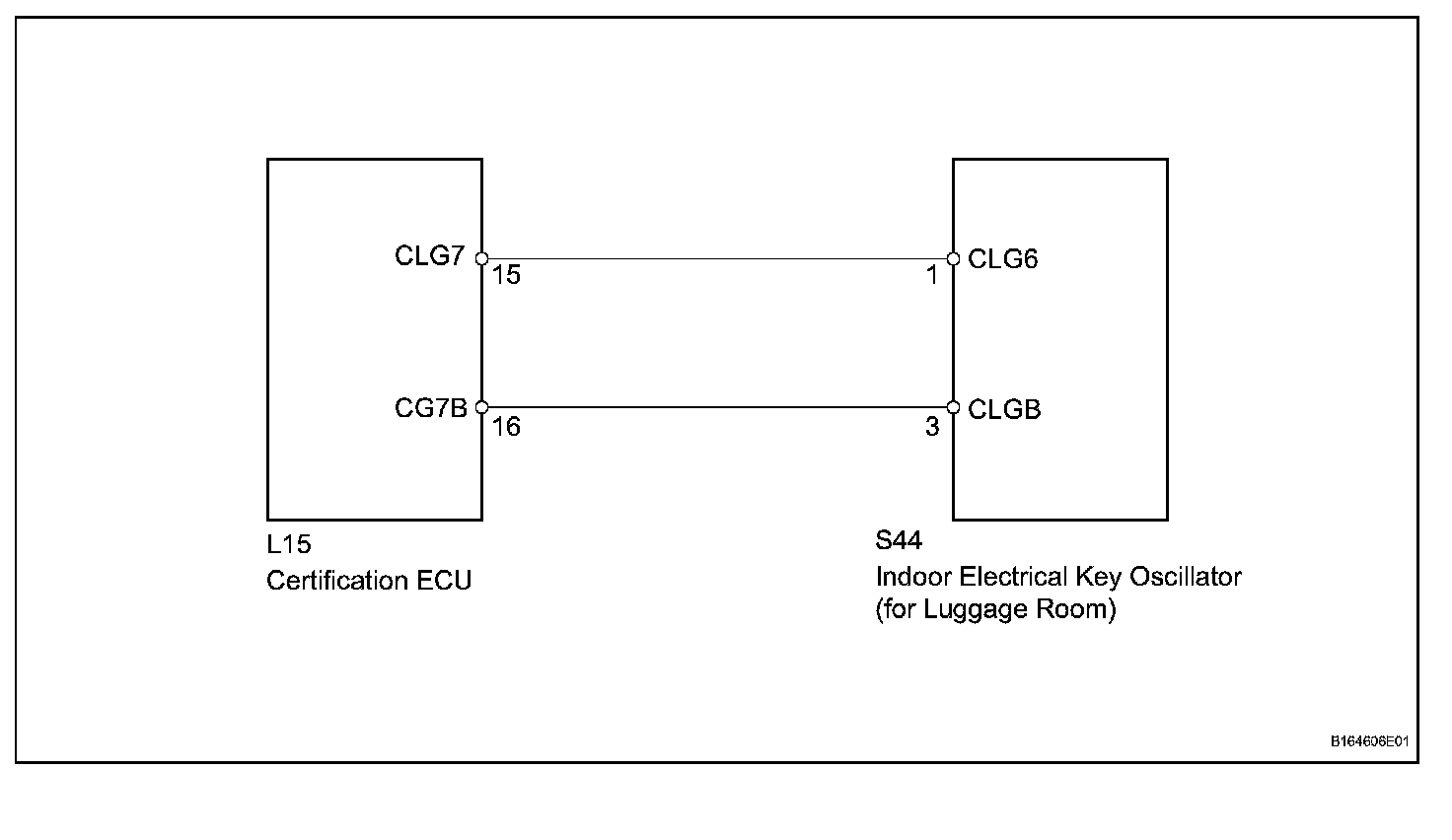

Wiring Diagram:

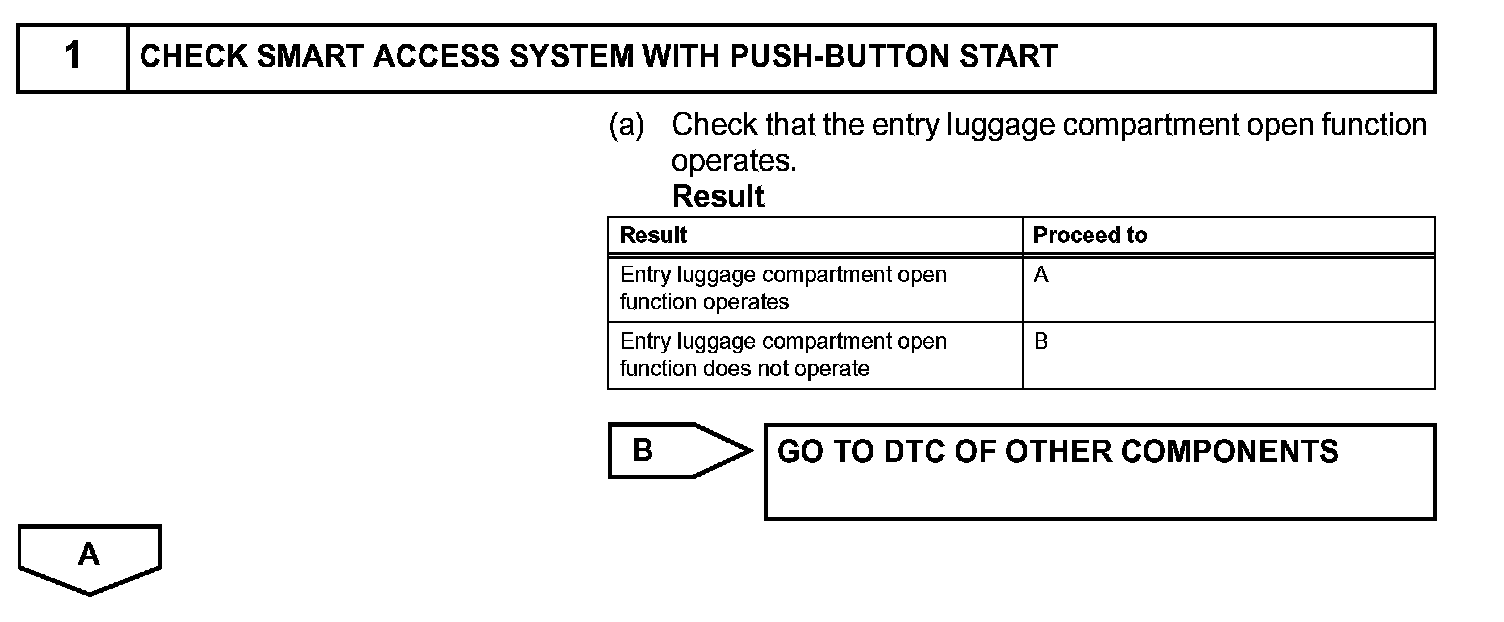

Step 1:

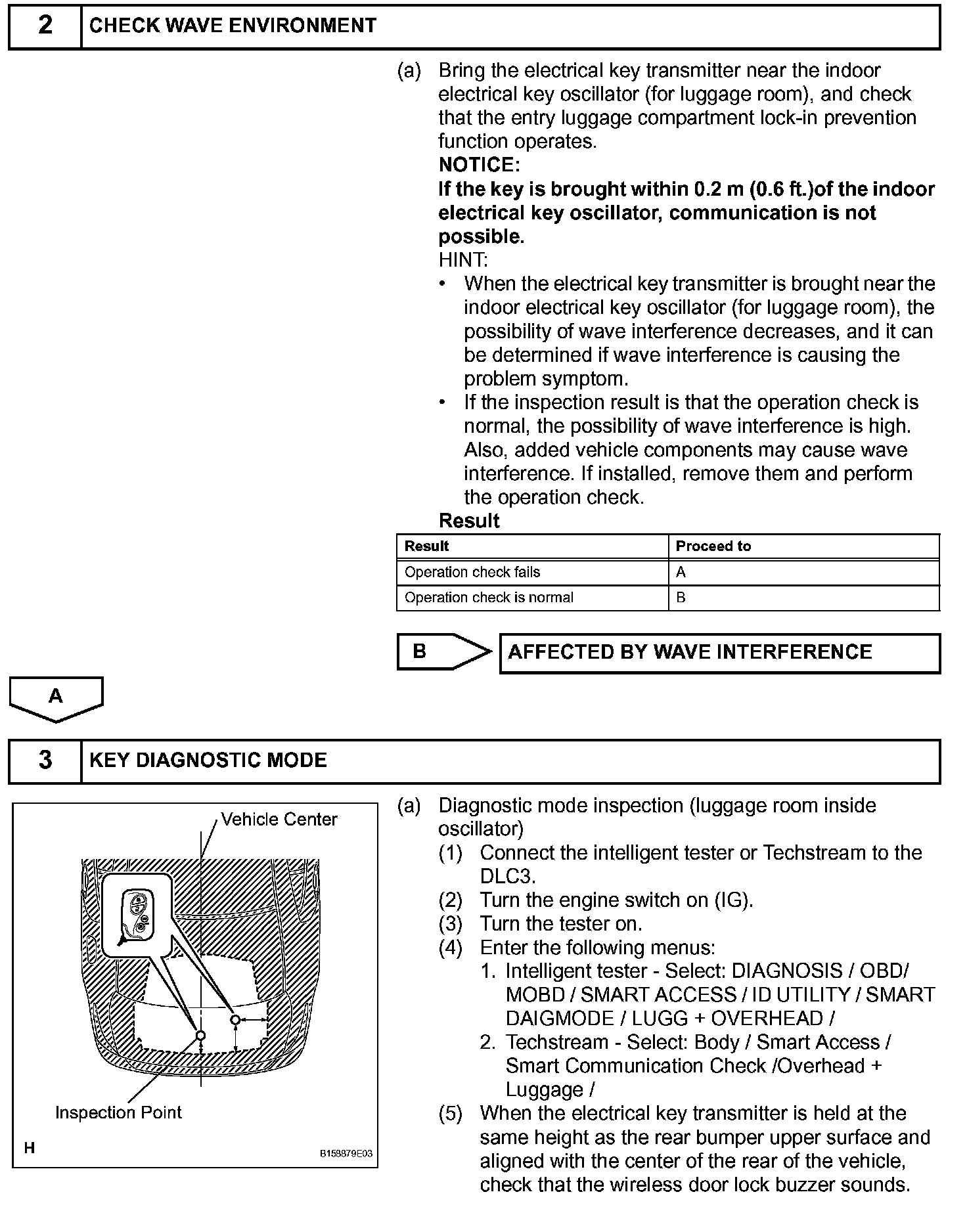

Step 2-3:

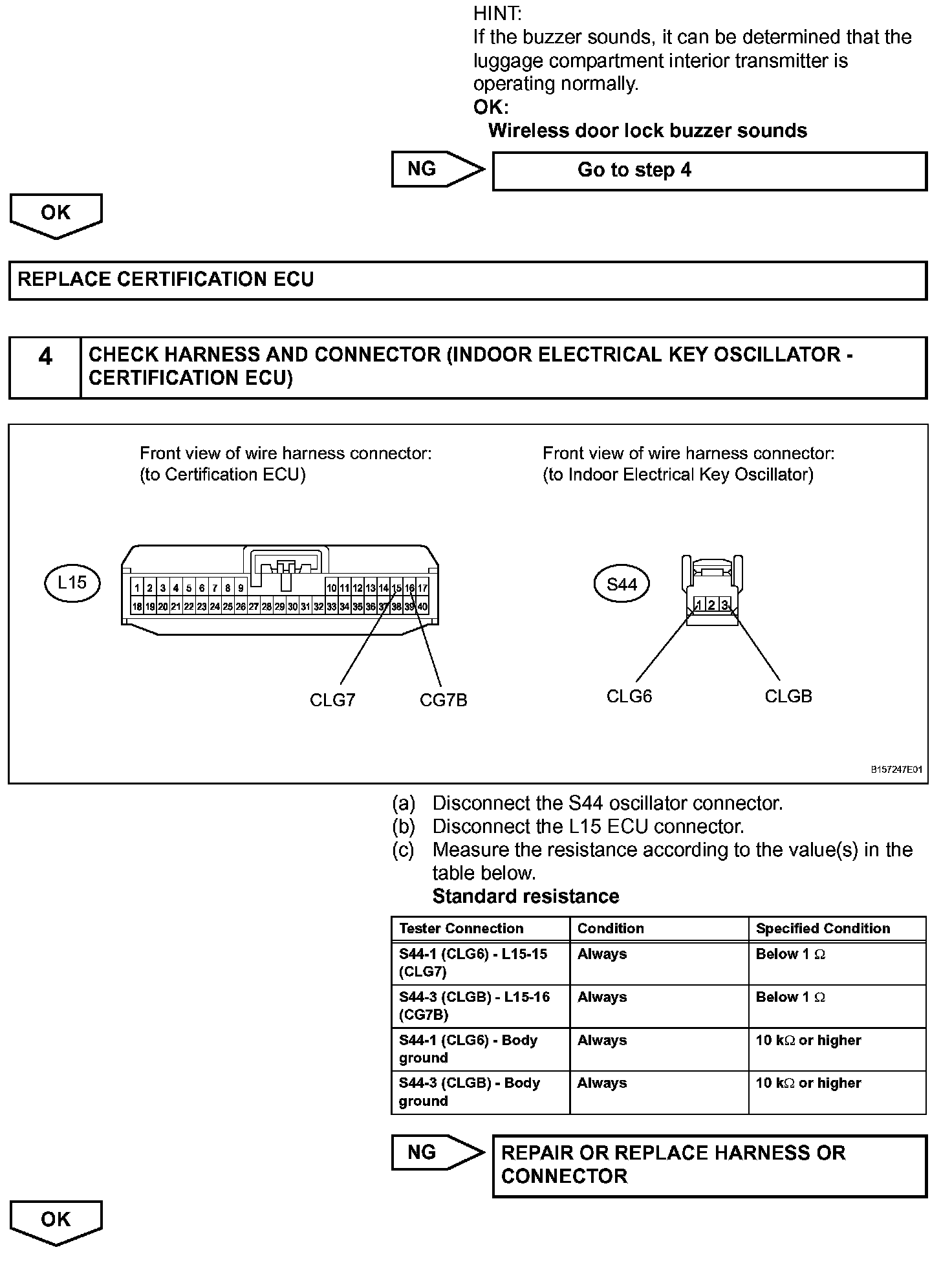

Step 3 (Continued)-4:

Step 5:

INSPECTION PROCEDURE
