Fuse Block

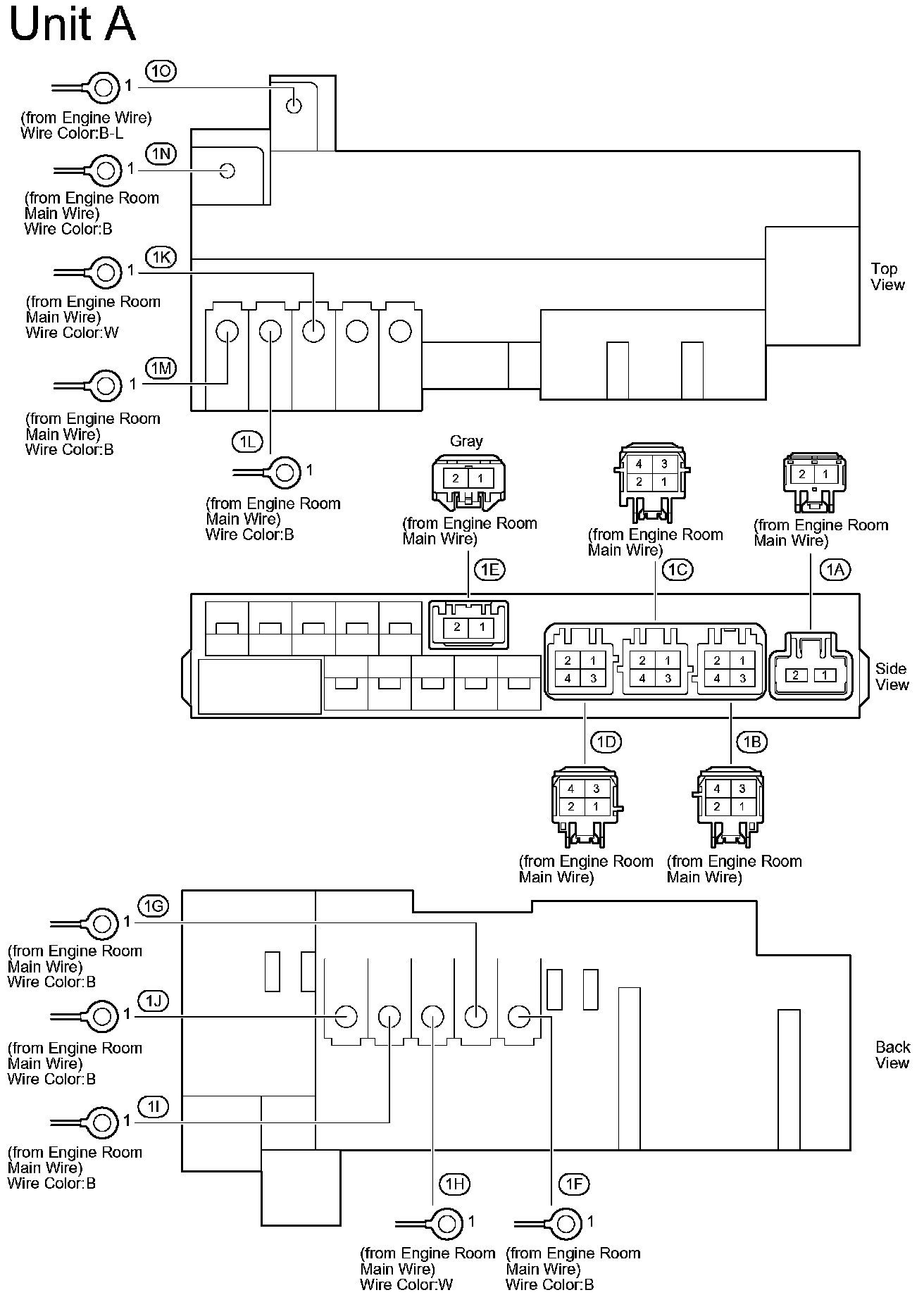

Engine Room R/B No.1, J/B No.1 - Engine Compartment Right:

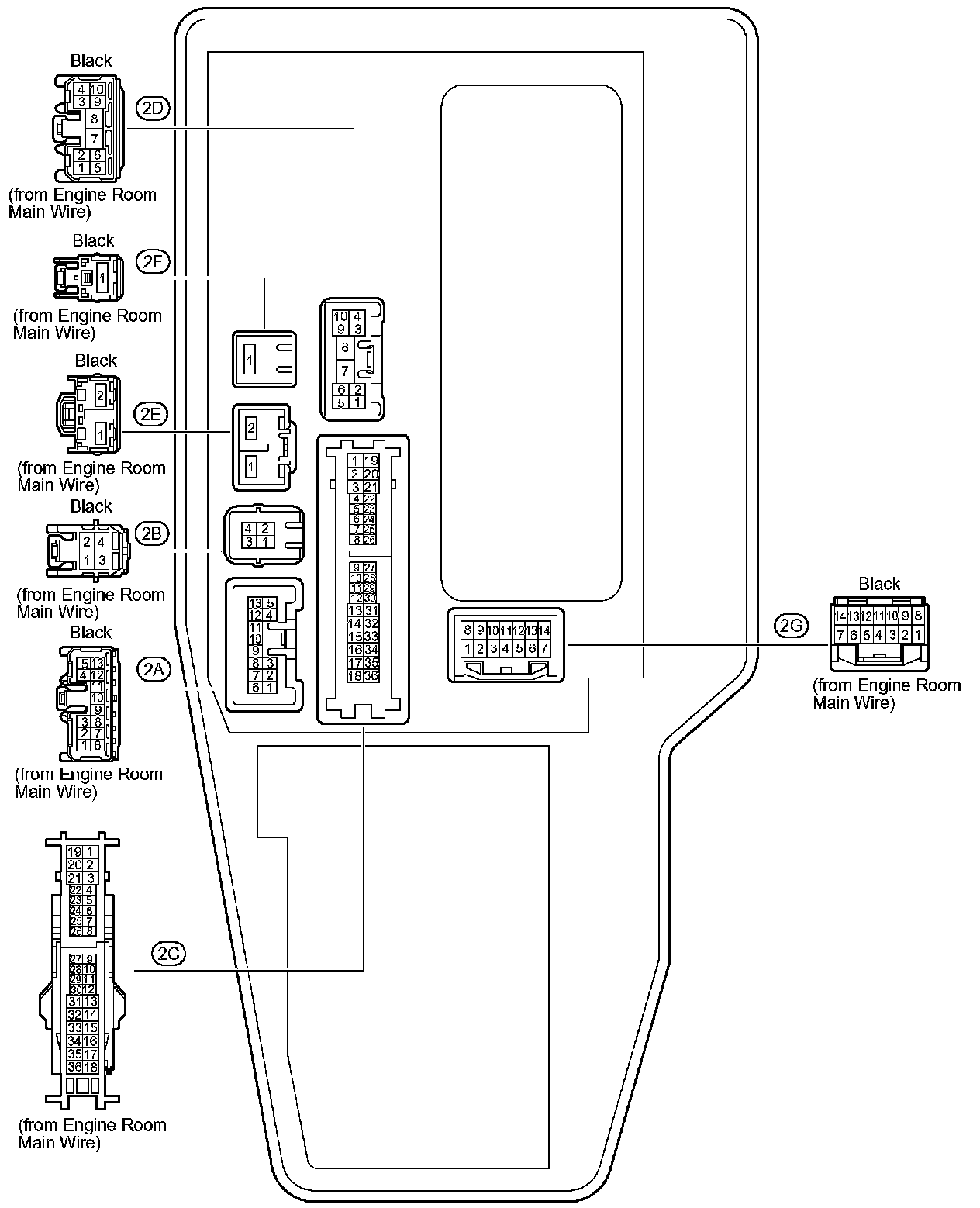

Engine Room R/B No.2, J/B No.2 - Engine Compartment Right:

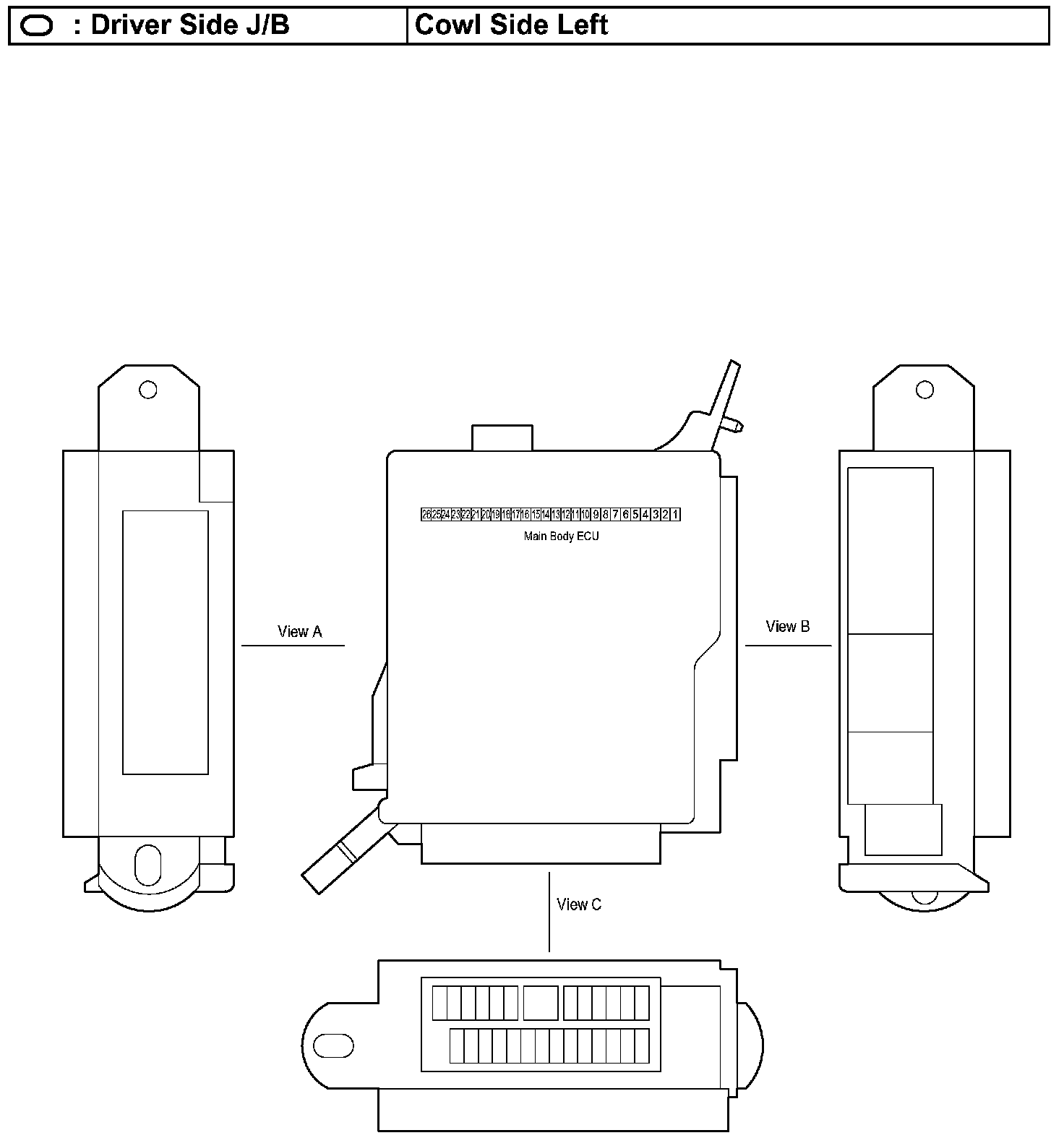

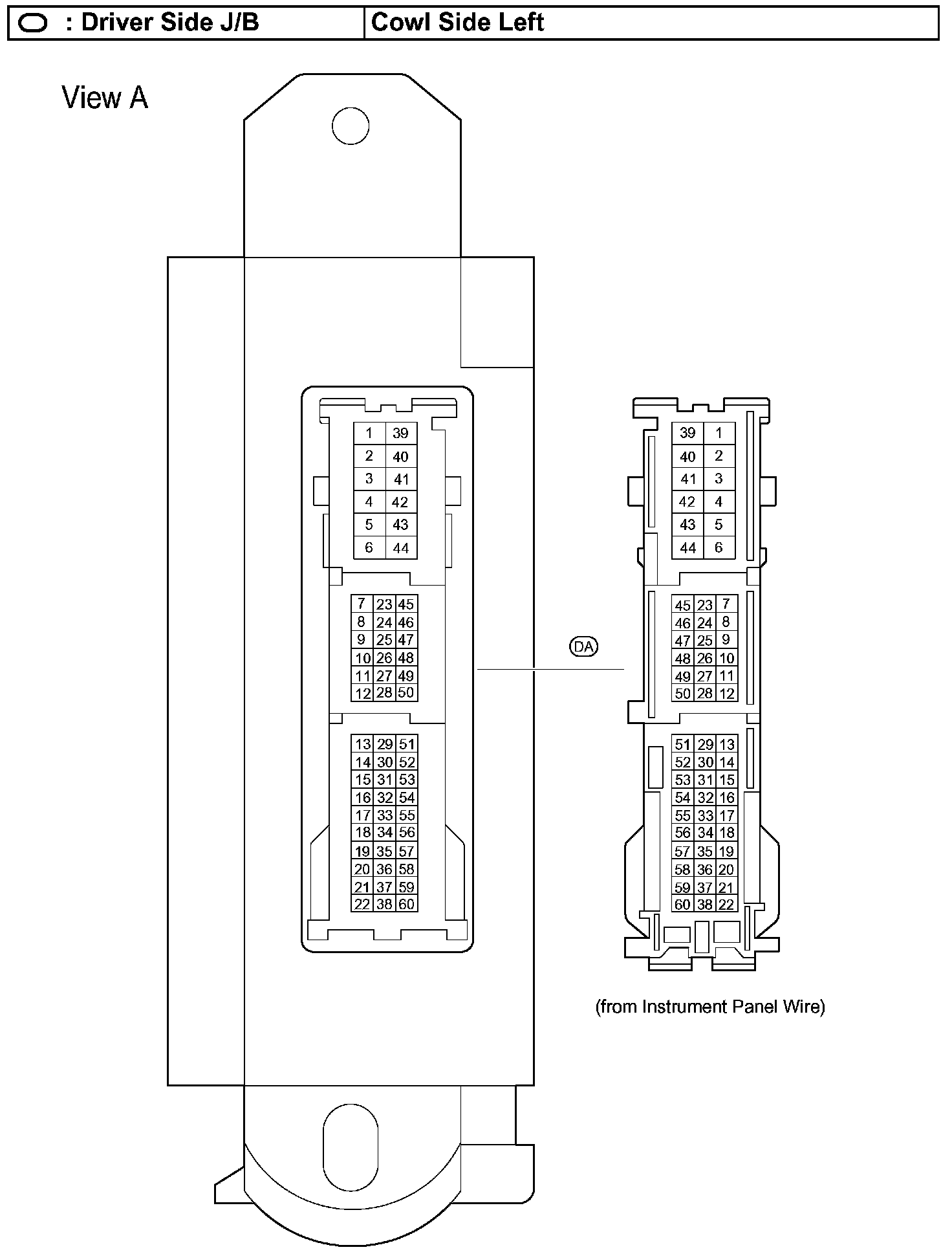

Driver Side J/B - Cowl Side Left:

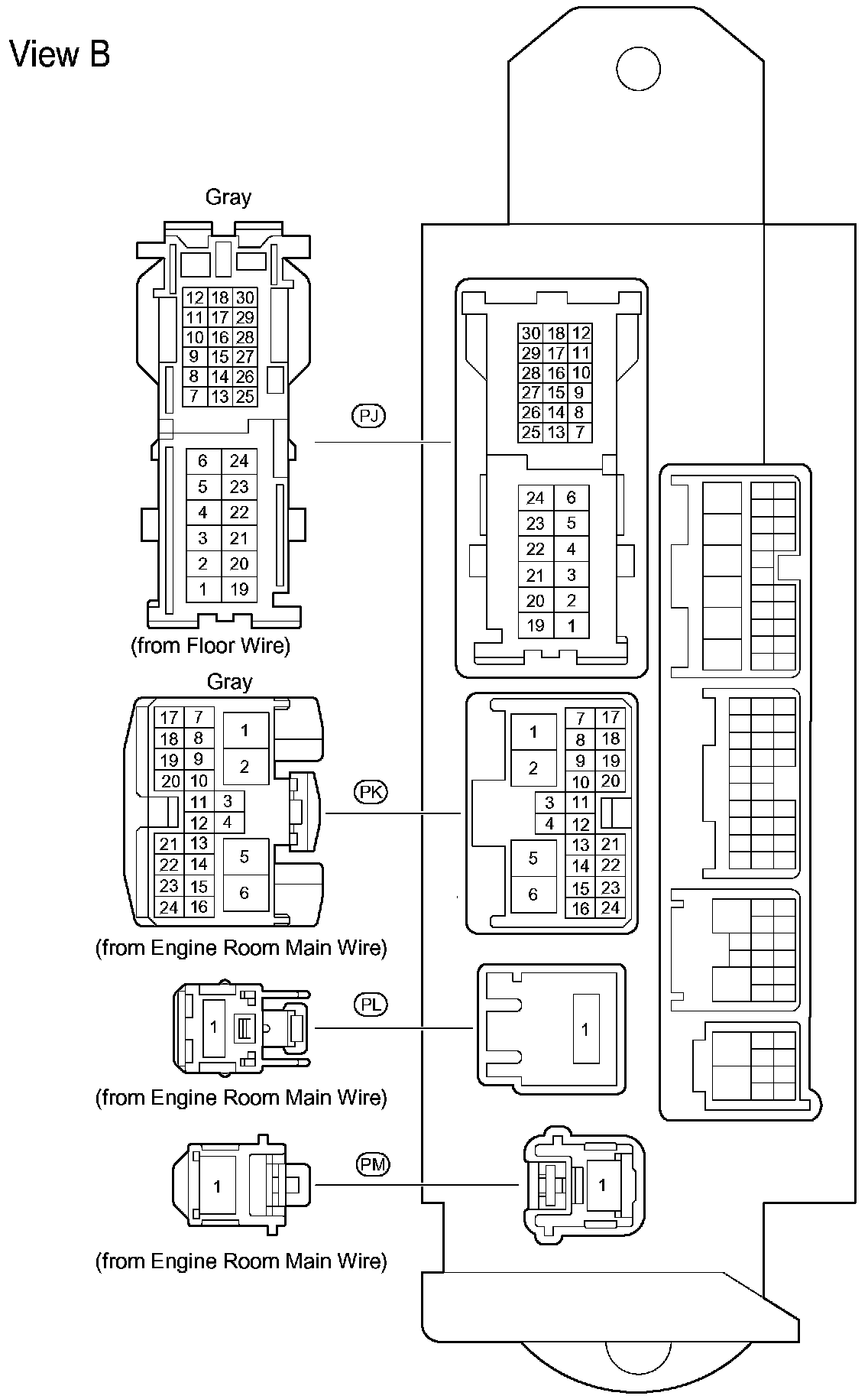

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

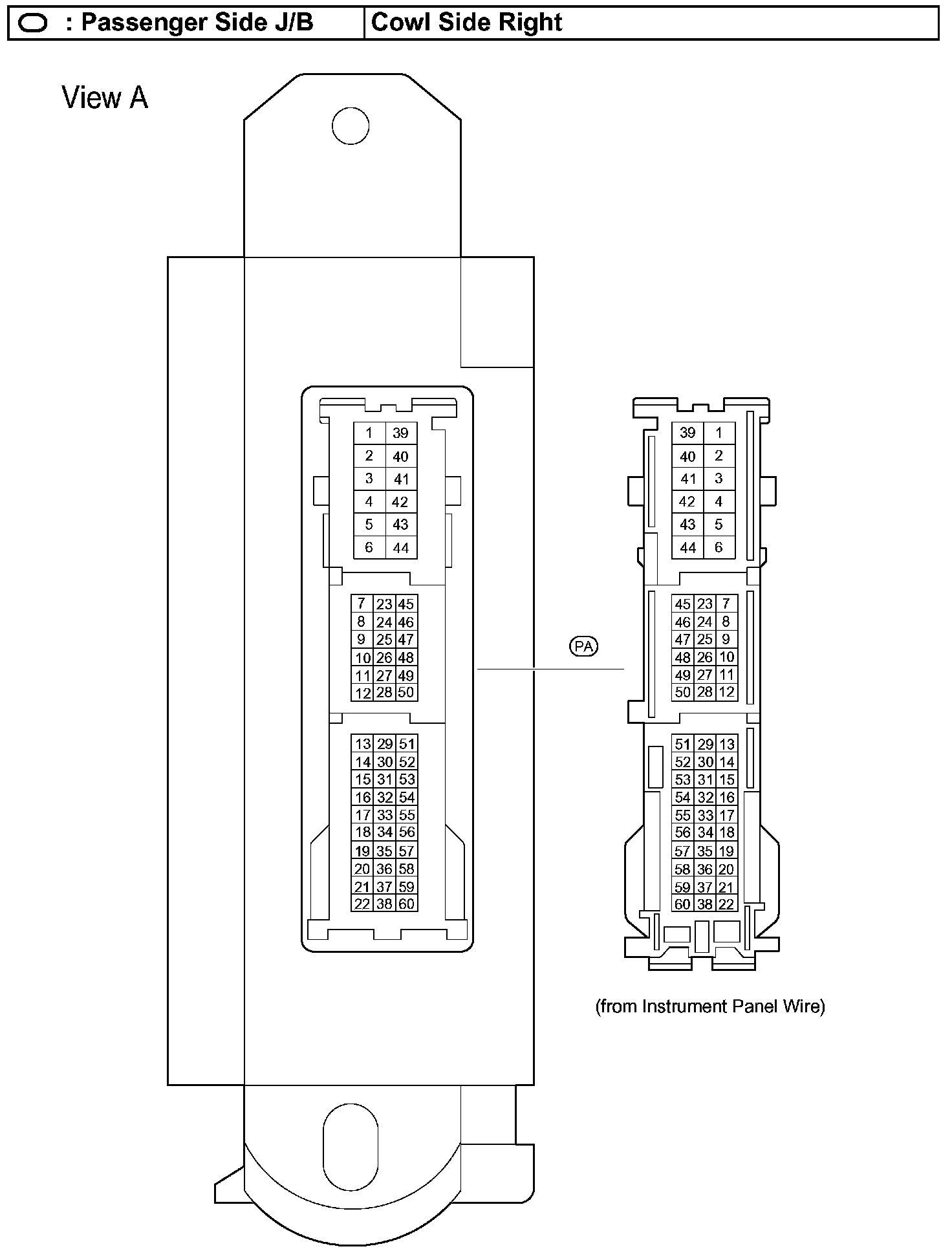

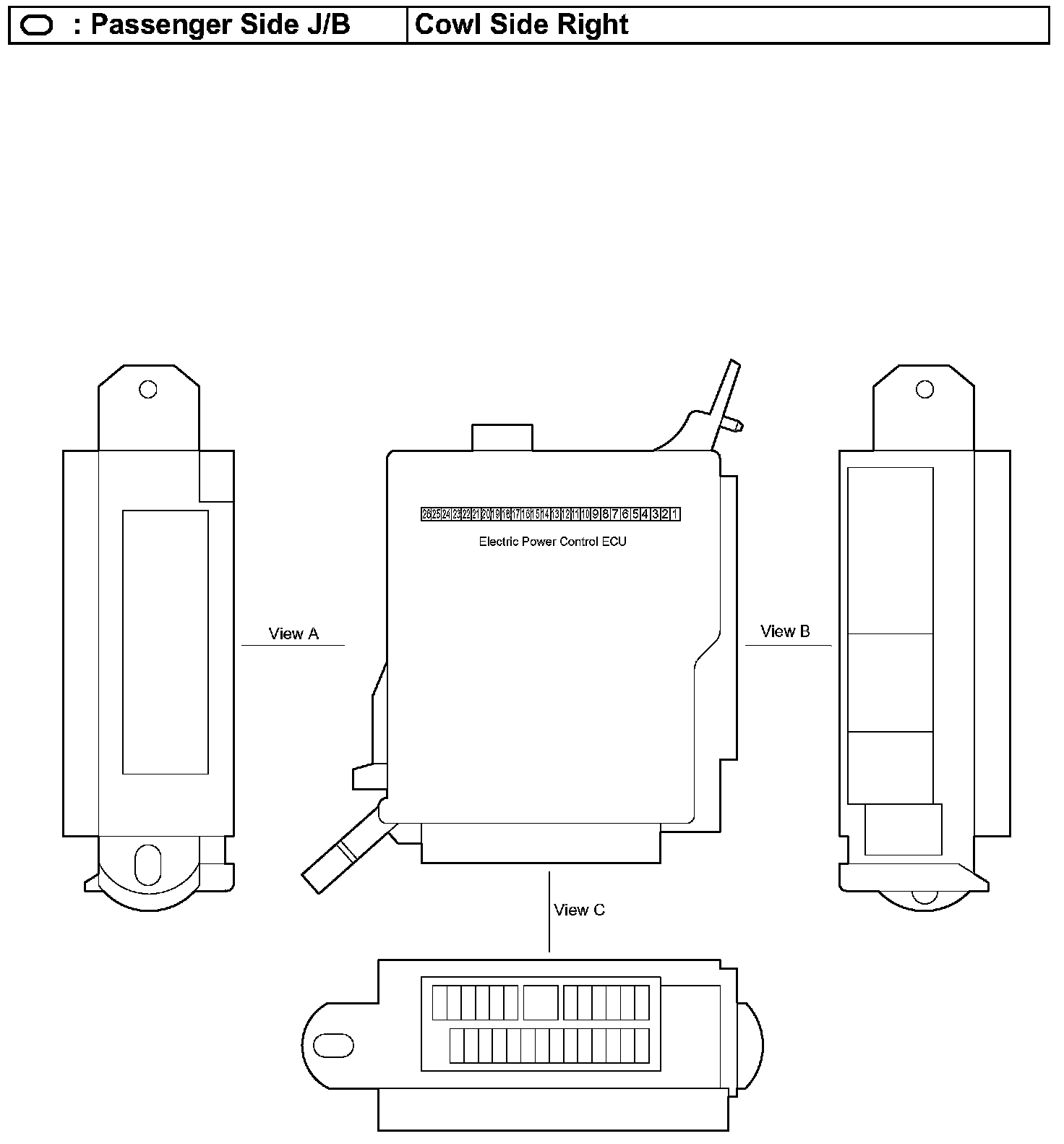

Passenger Side J/B - Cowl Side Right:

Passenger Side J/B - Cowl Side Right:

Passenger Side J/B - Cowl Side Right:

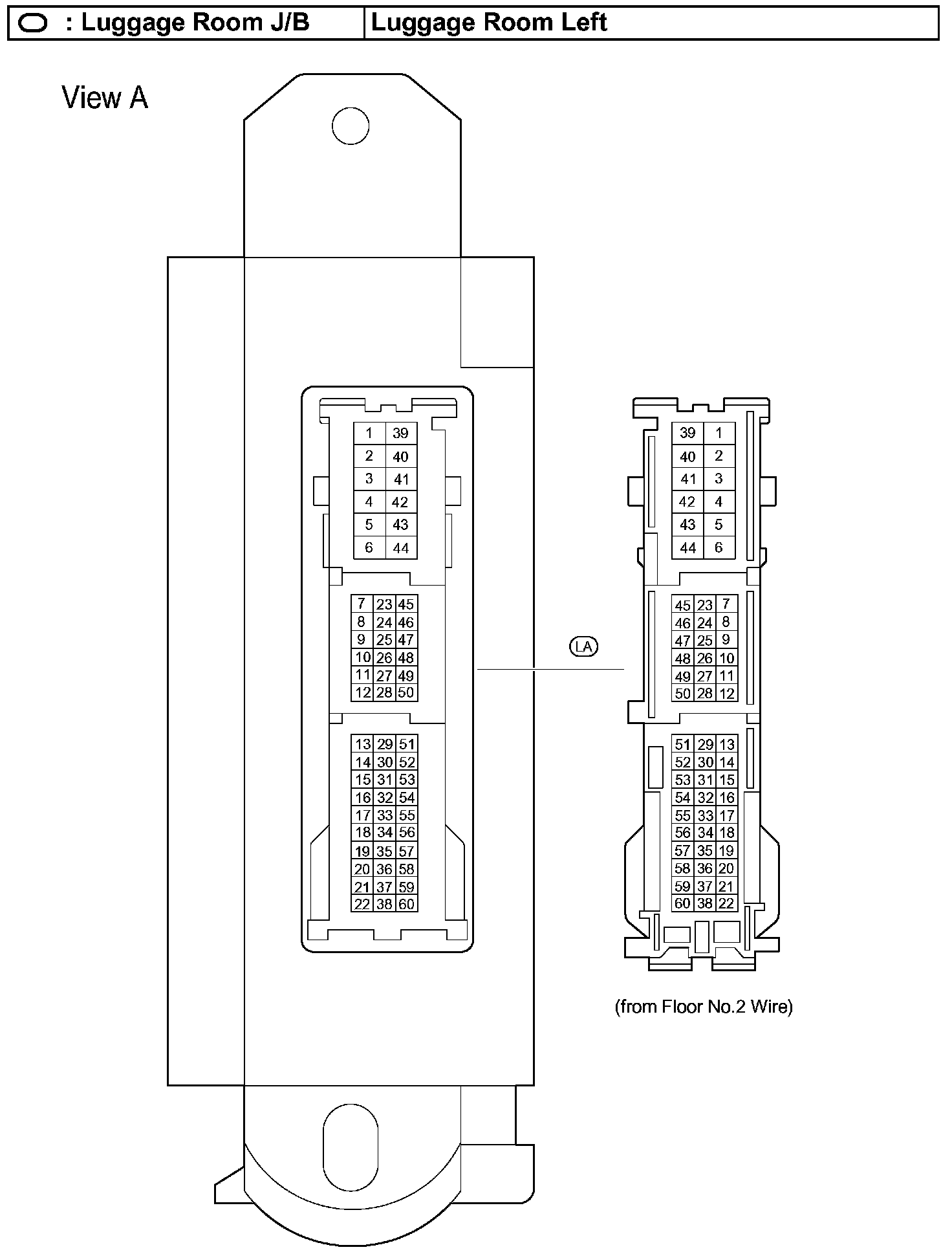

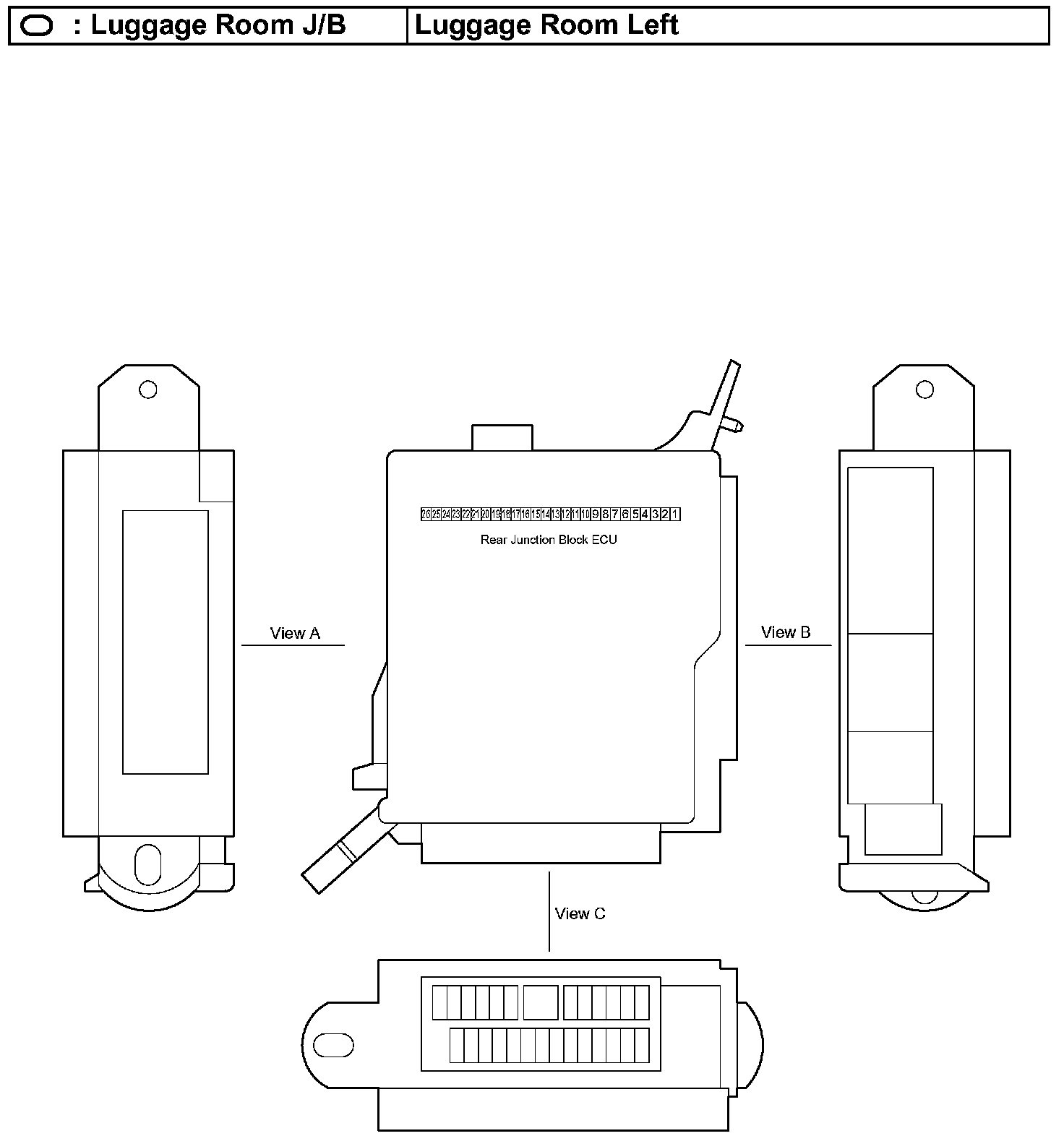

Luggage Room J/B - Luggage Room Left:

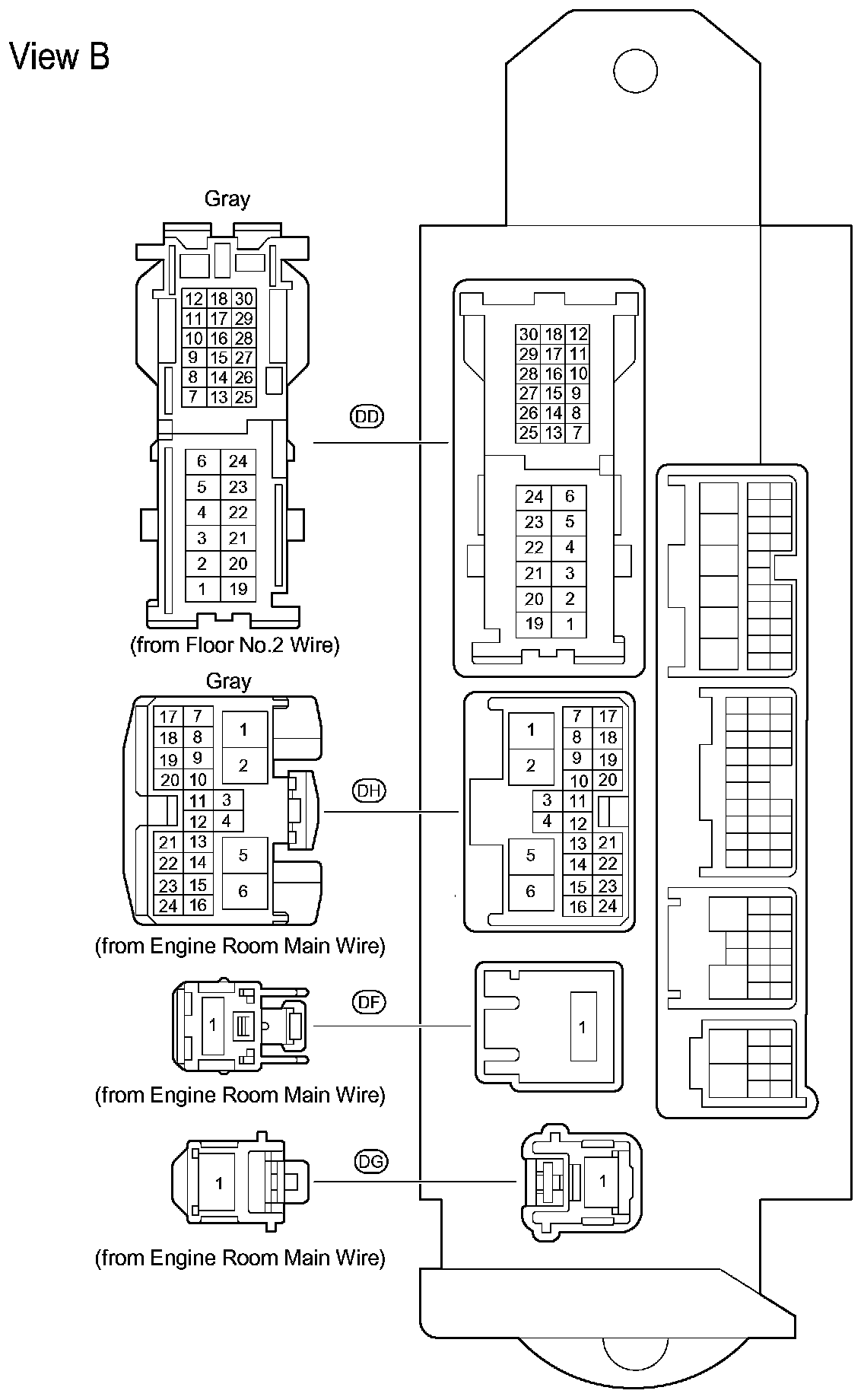

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

J/B No.3 - Instrument Panel Center:

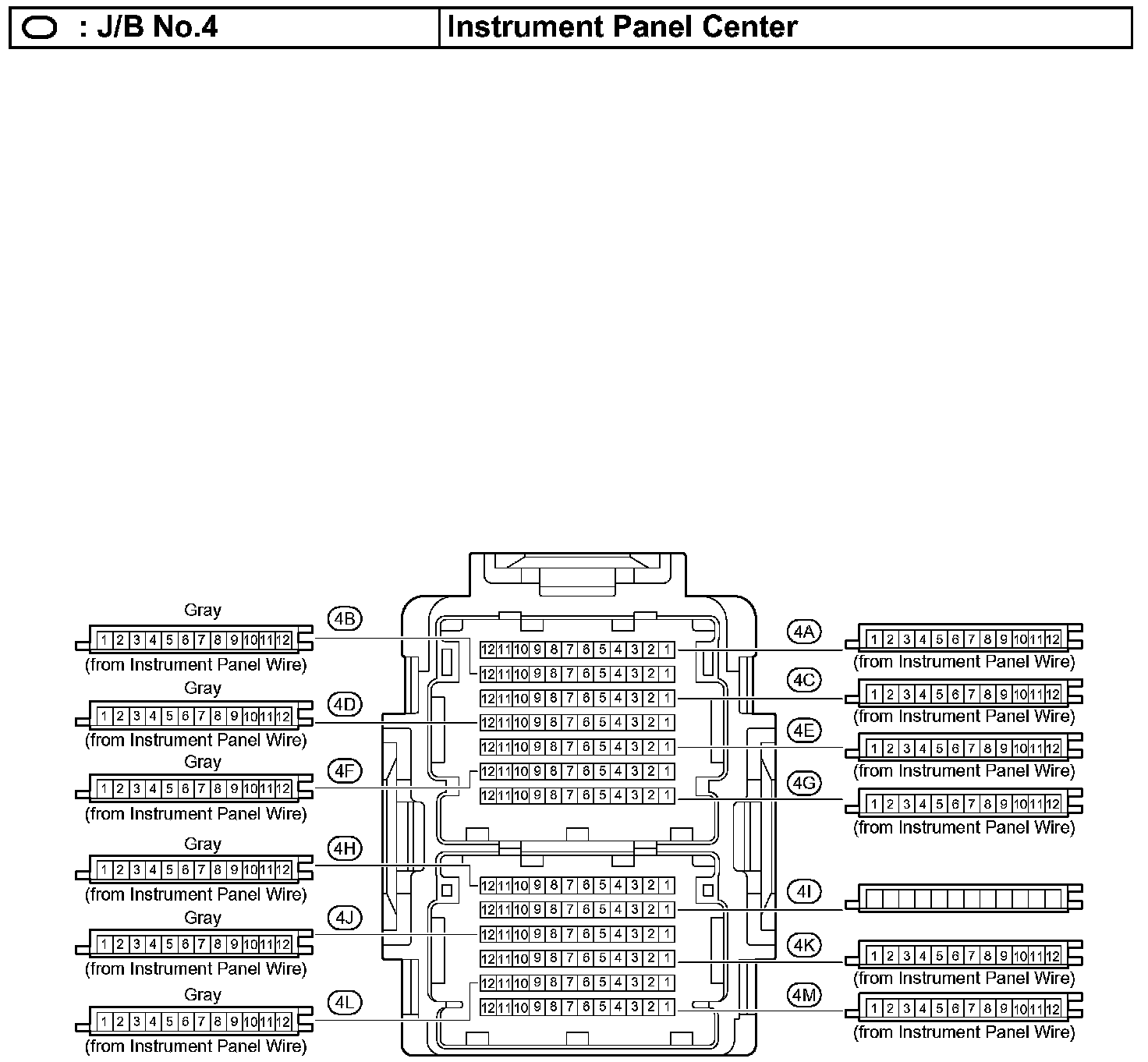

J/B No.4 - Instrument Panel Center:

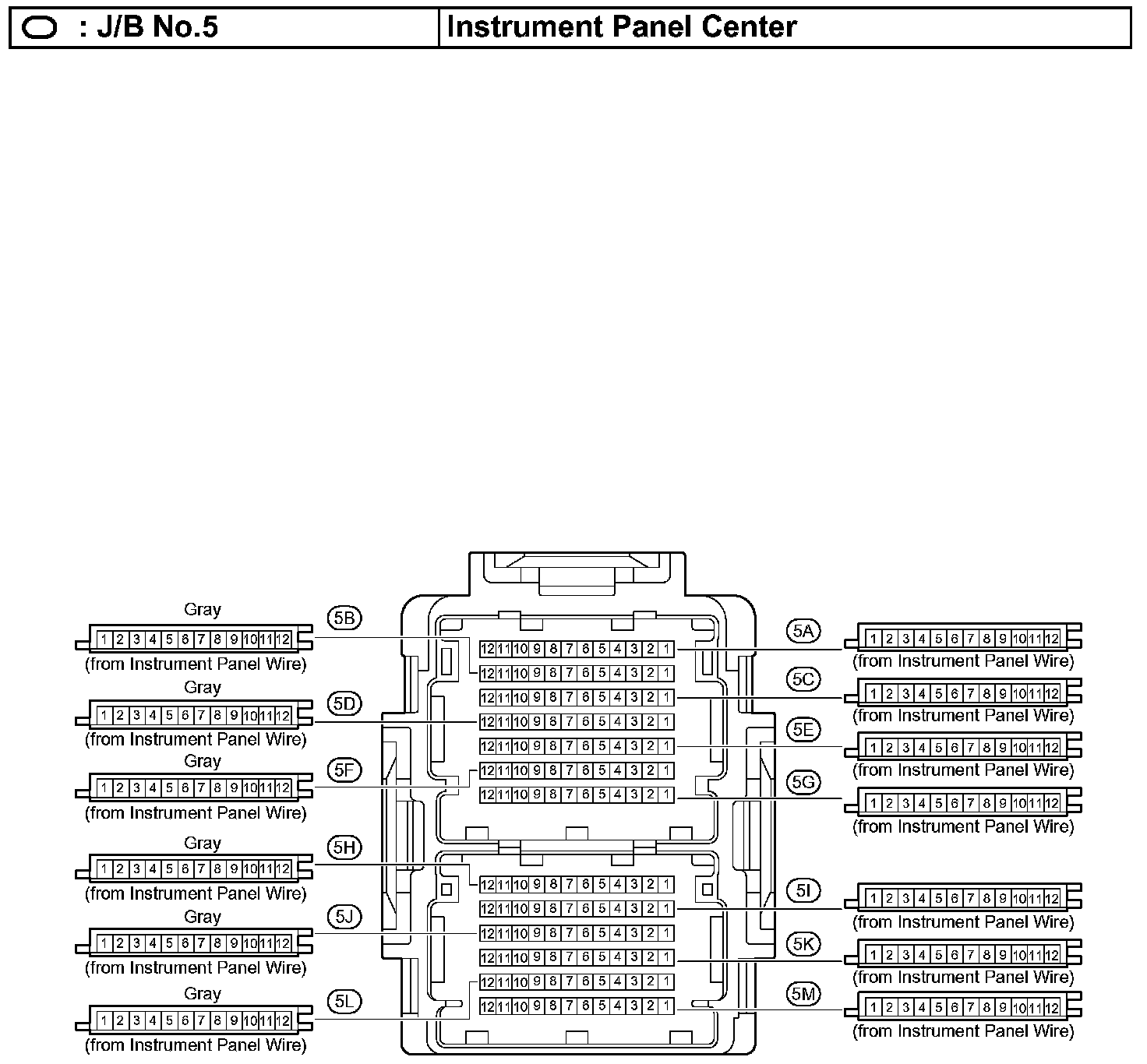

J/B No.5 - Instrument Panel Center:
