Damping Control Actuator

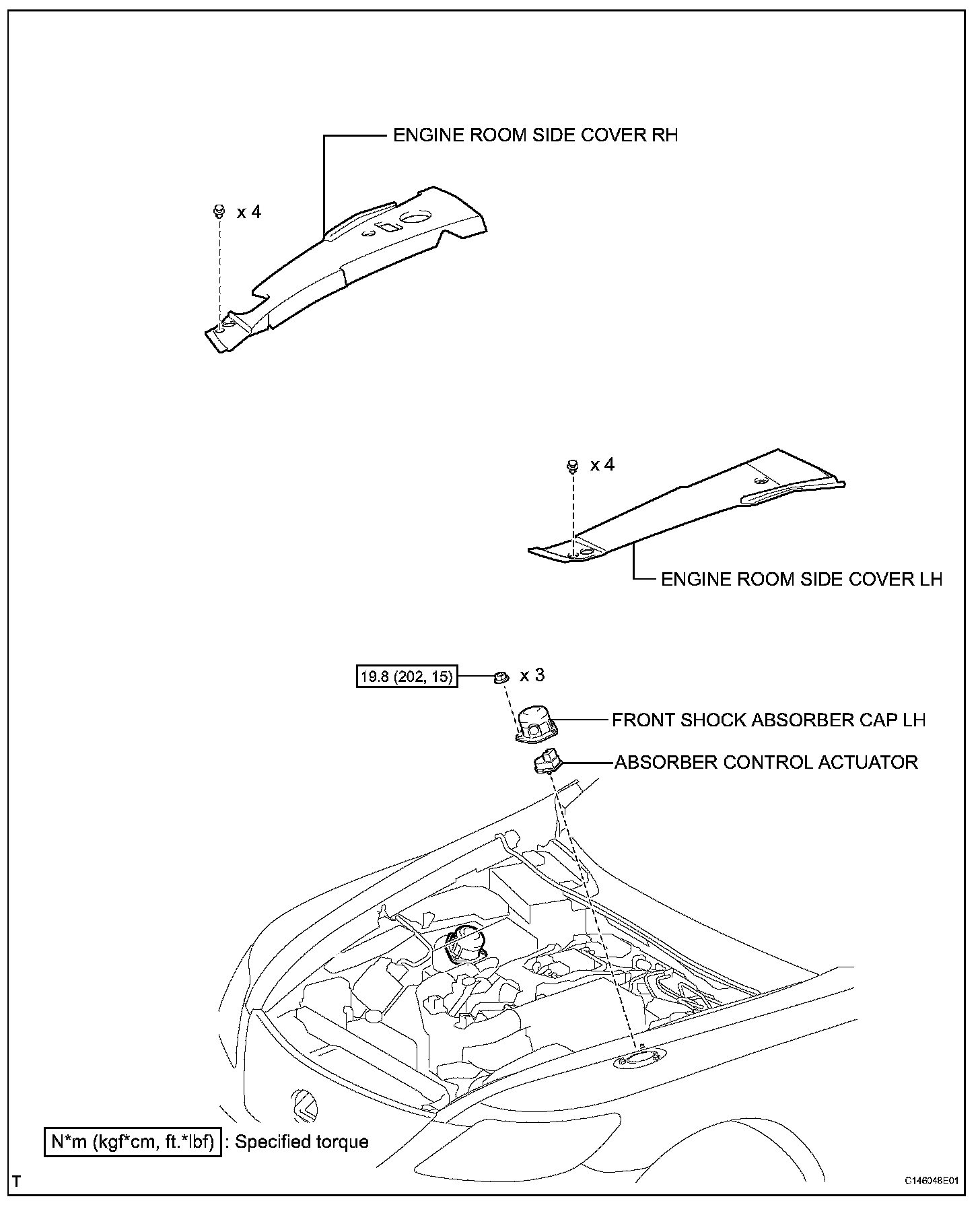

Absorber Control Actuator (for Front Side):

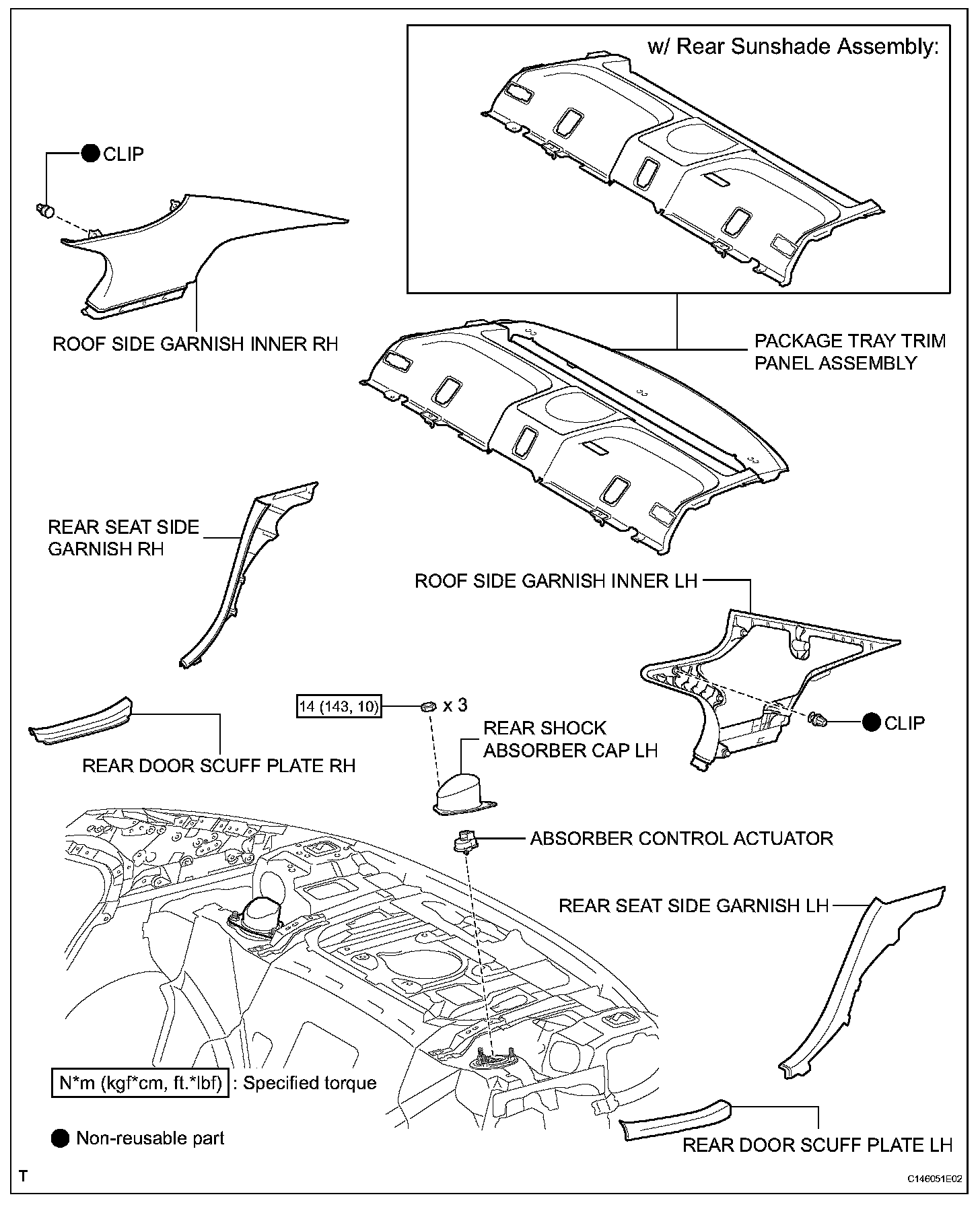

Absorber Control Actuator (for Rear Side):

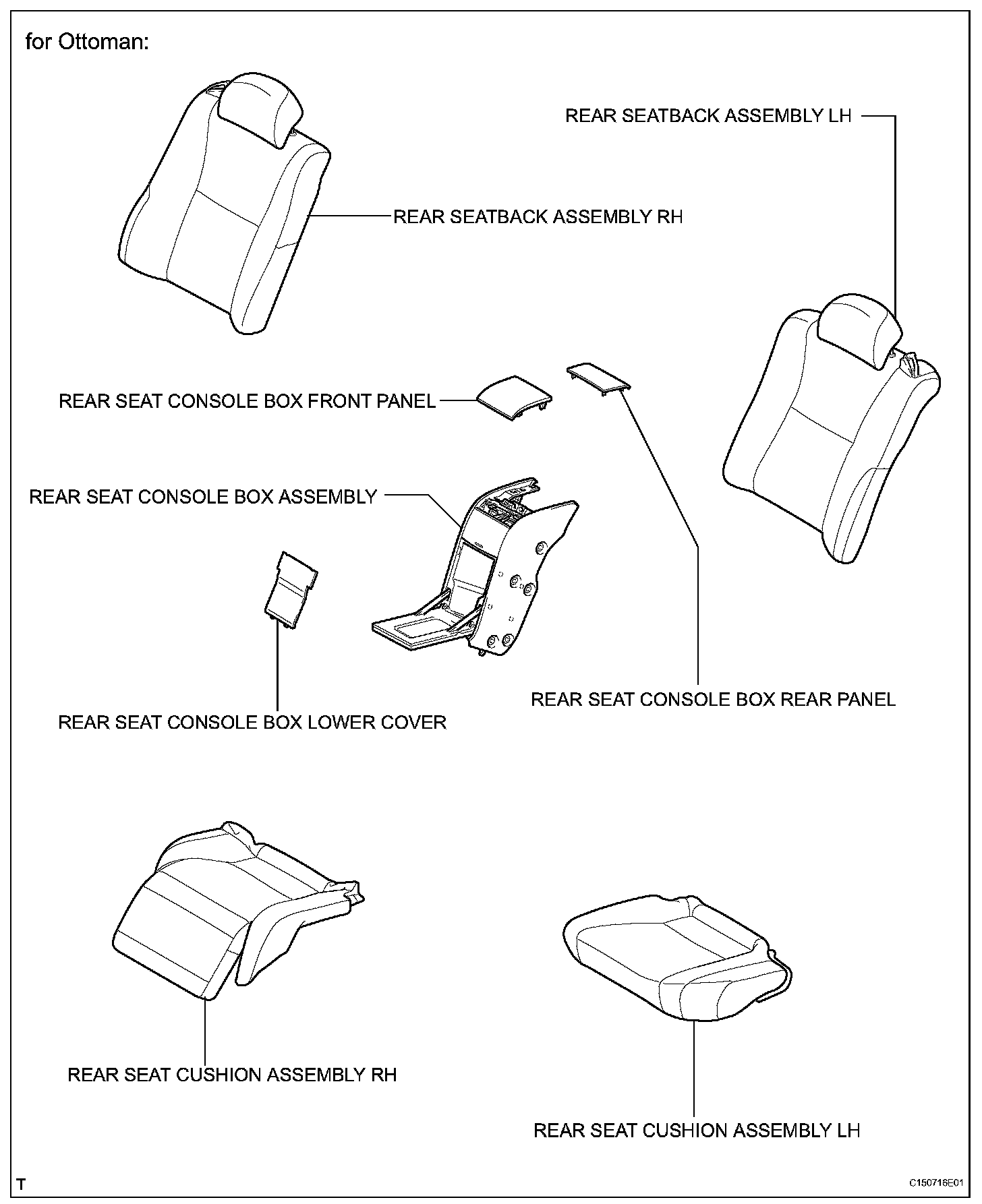

Absorber Control Actuator (for Rear Side):

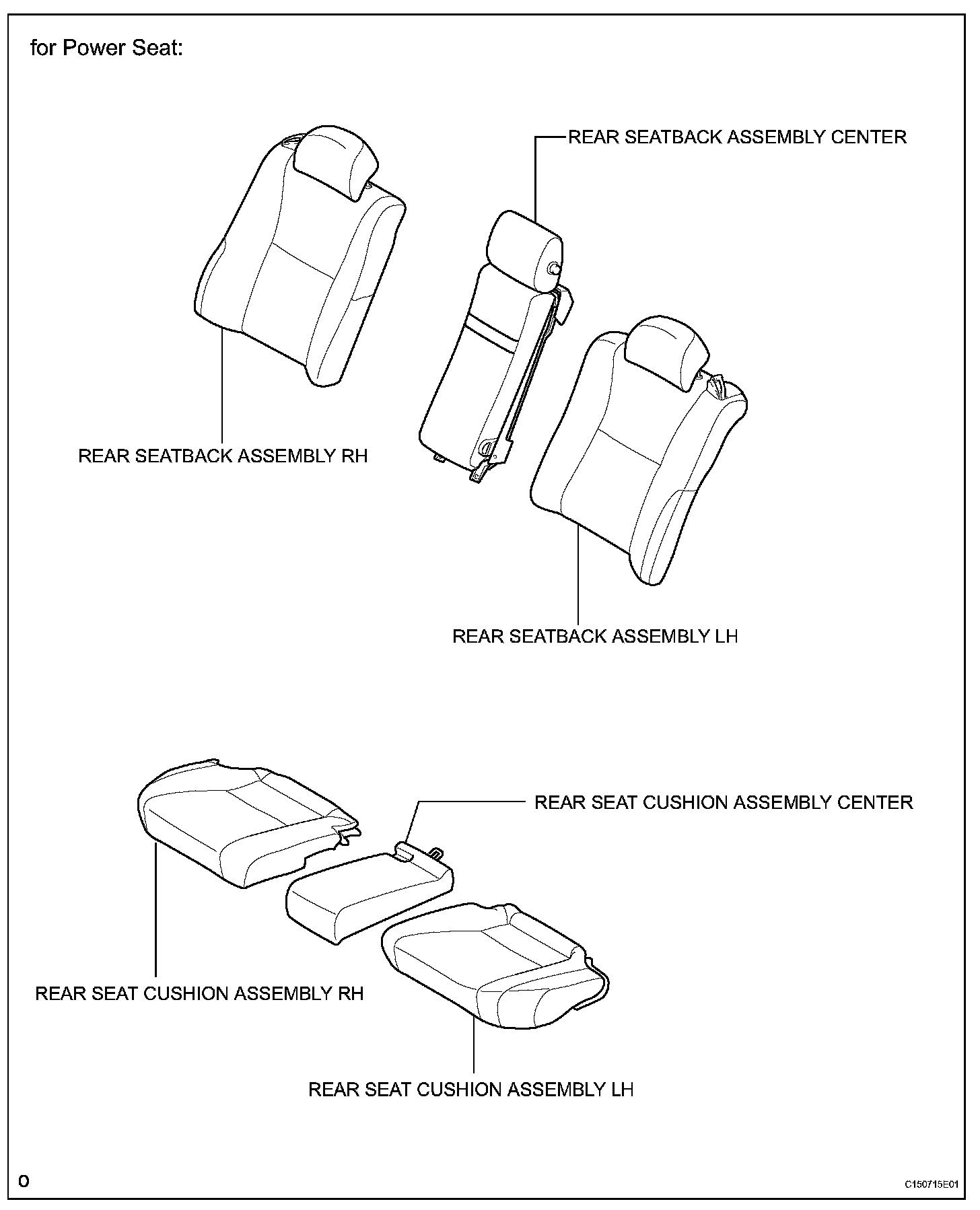

Absorber Control Actuator (for Rear Side):

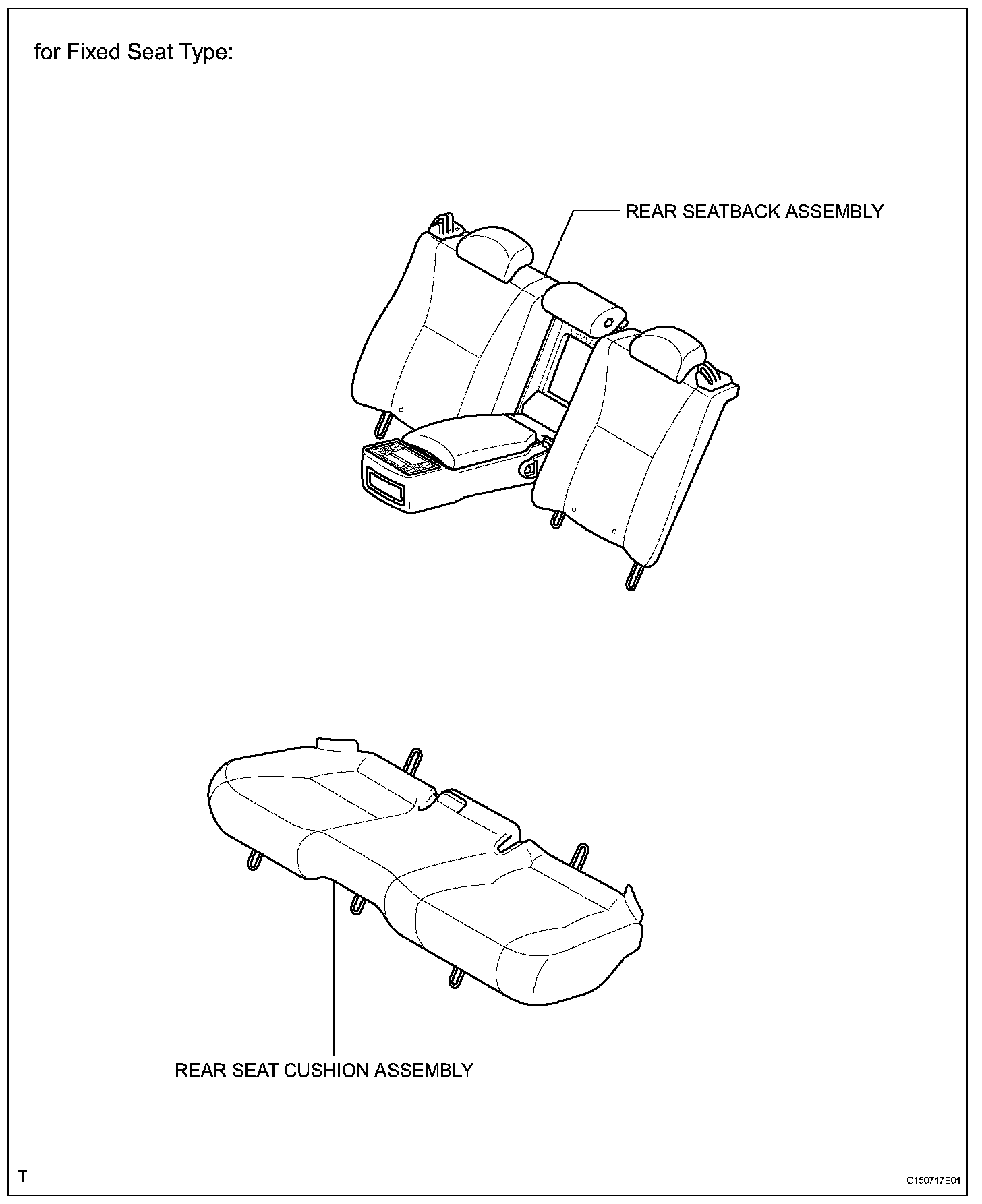

Absorber Control Actuator (for Rear Side):



Absorber Control Actuator (for Rear Side):
