Bus Buffer ECU:

BUS BUFFER ECU

REMOVAL

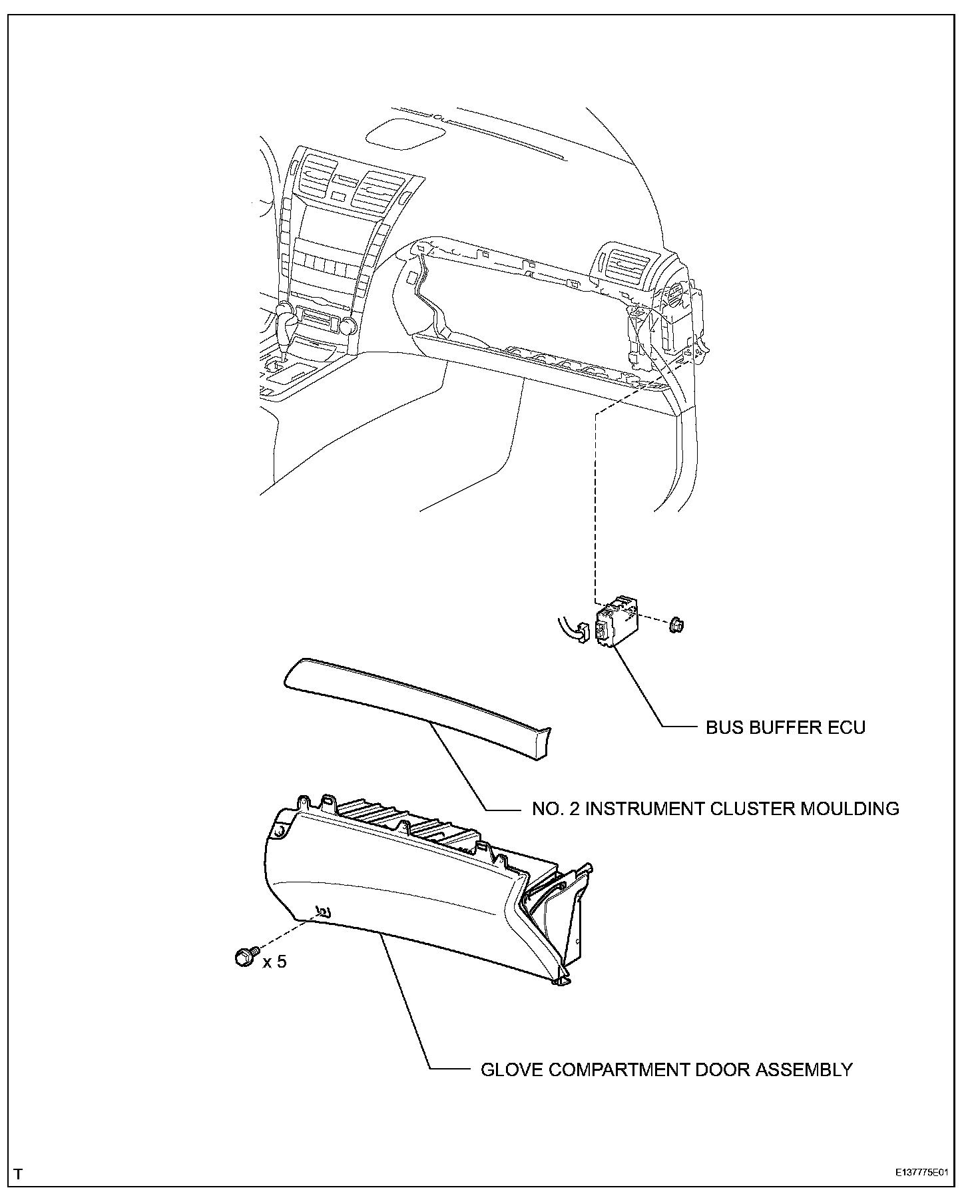

1. REMOVE NO.2 INSTRUMENT CLUSTER MOULDING
2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

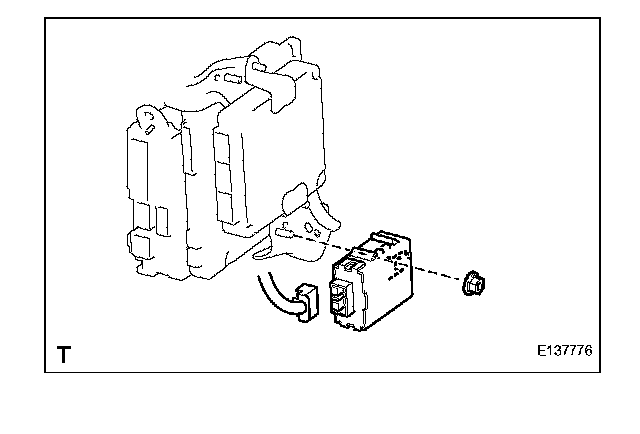

3. REMOVE BUS BUFFER ECU
a. Disconnect the connector.
b. Remove the nut and ECU.

INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

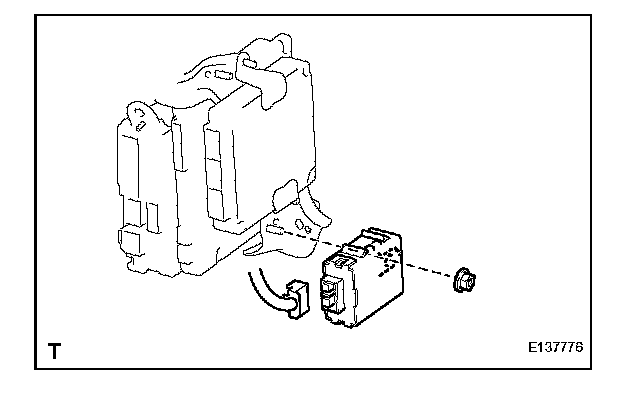

1. INSTALL BUS BUFFER ECU.
a. Install the ECU with the nut.
b. Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL NO.2 INSTRUMENT CLUSTER MOULDING
