Accelerator Pedal Position Sensor: Locations

A/C - Wi:

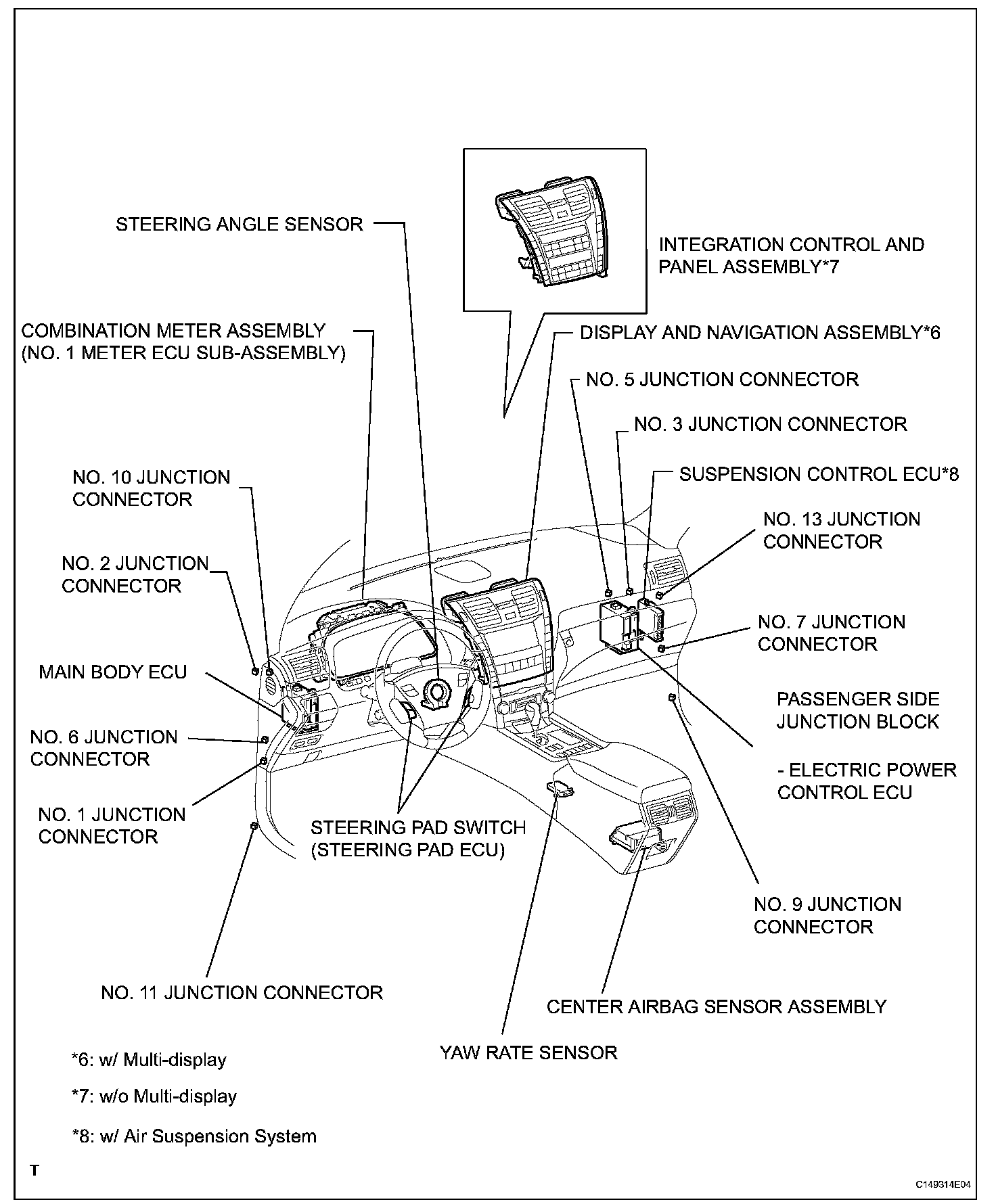

CAN Communication System:

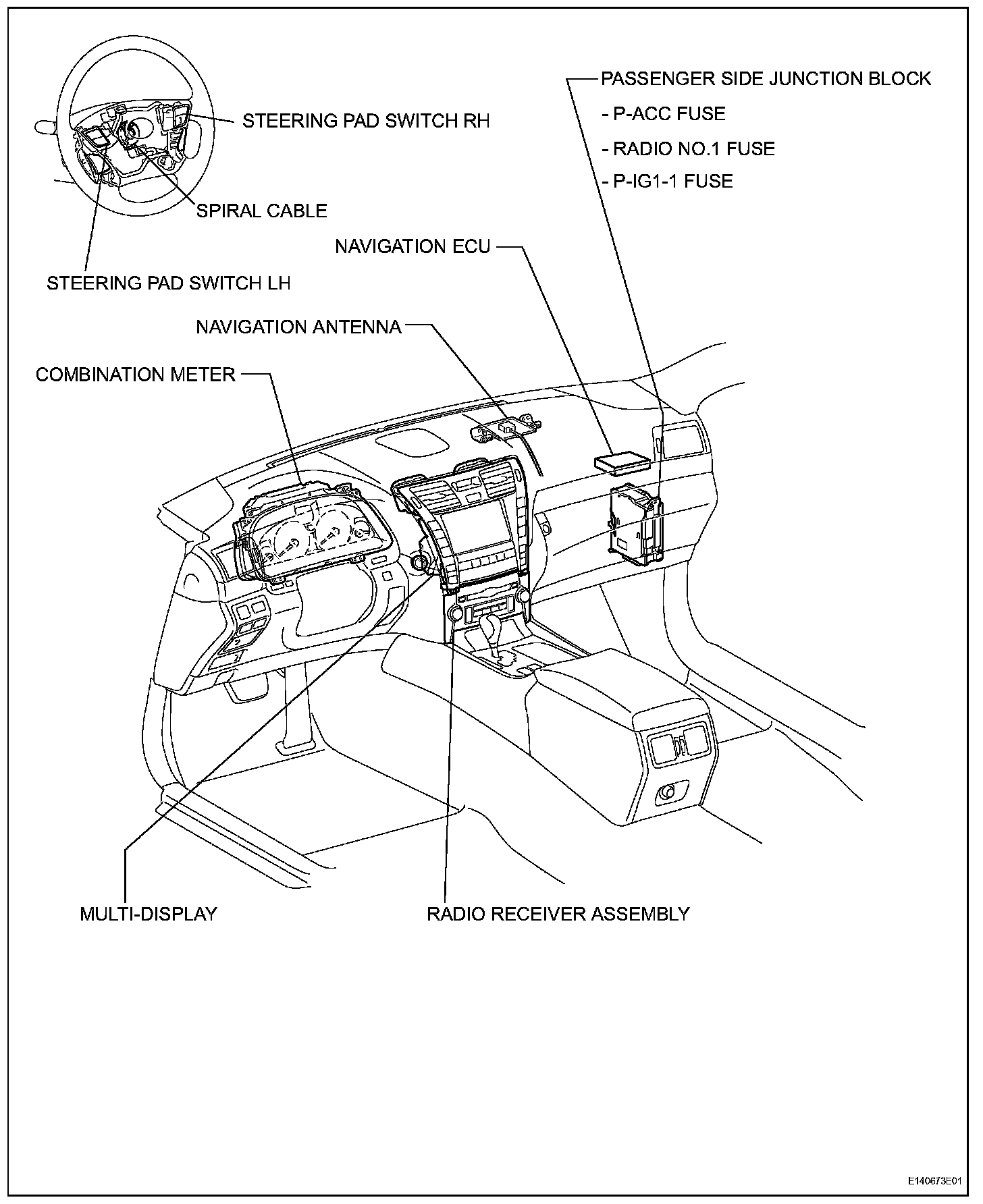

Audio And Visual System (W/ Multi-display):



Dynamic Radar Cruise Control System:

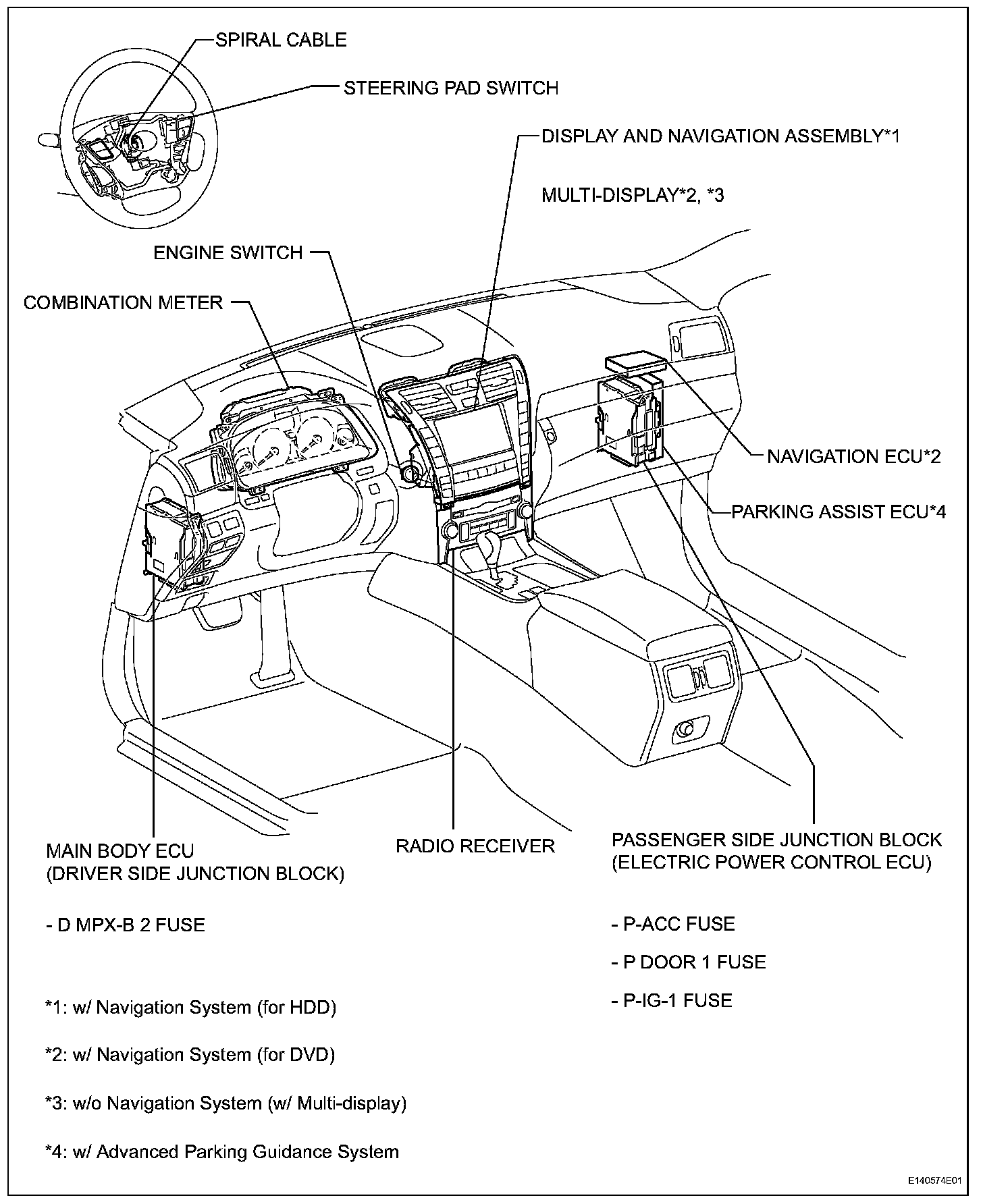

Navigation System (For DVD):
