Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations
April 5, 2026: LEMON Manuals is launched! Read the announcement.

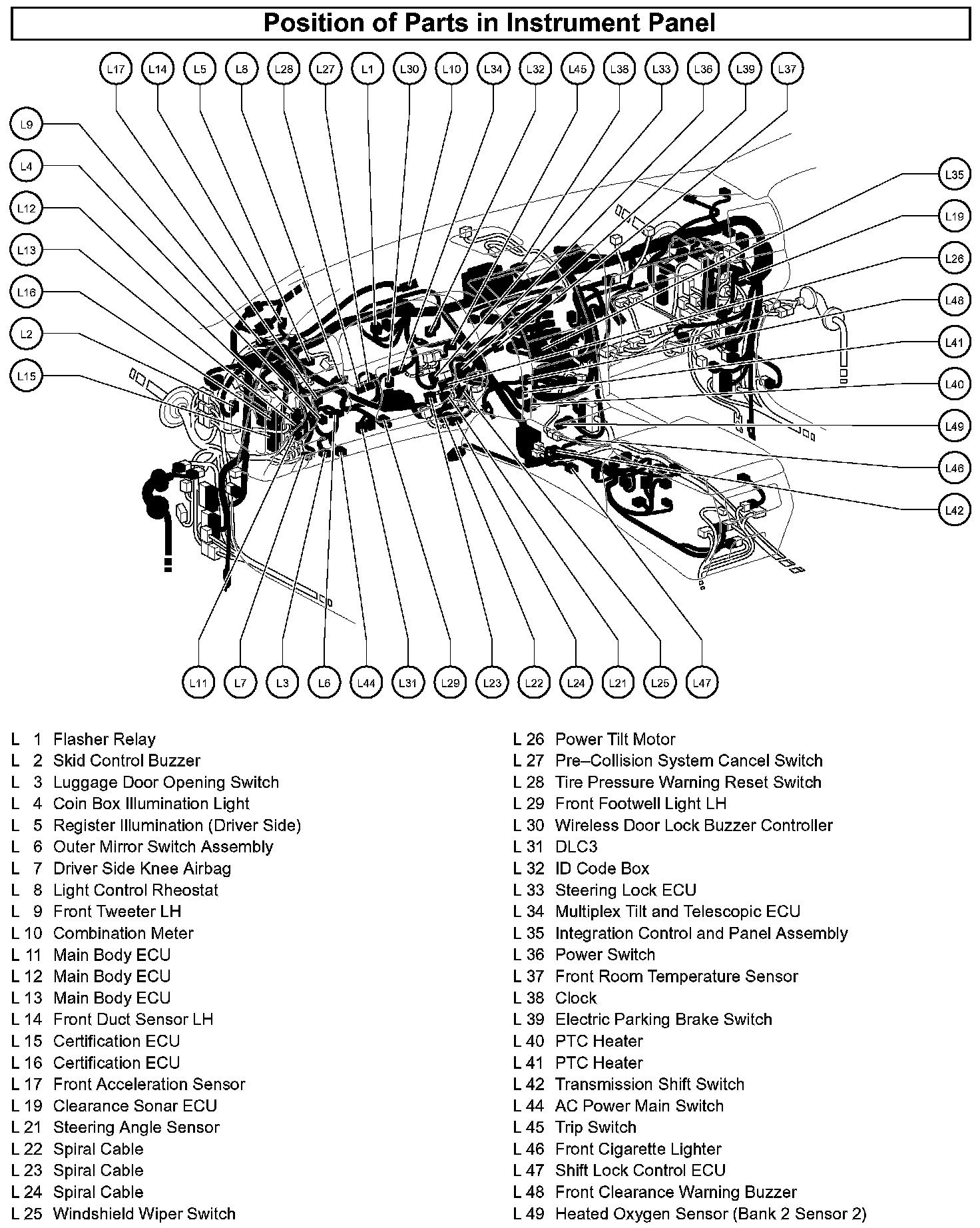

Data Link Connector: Locations

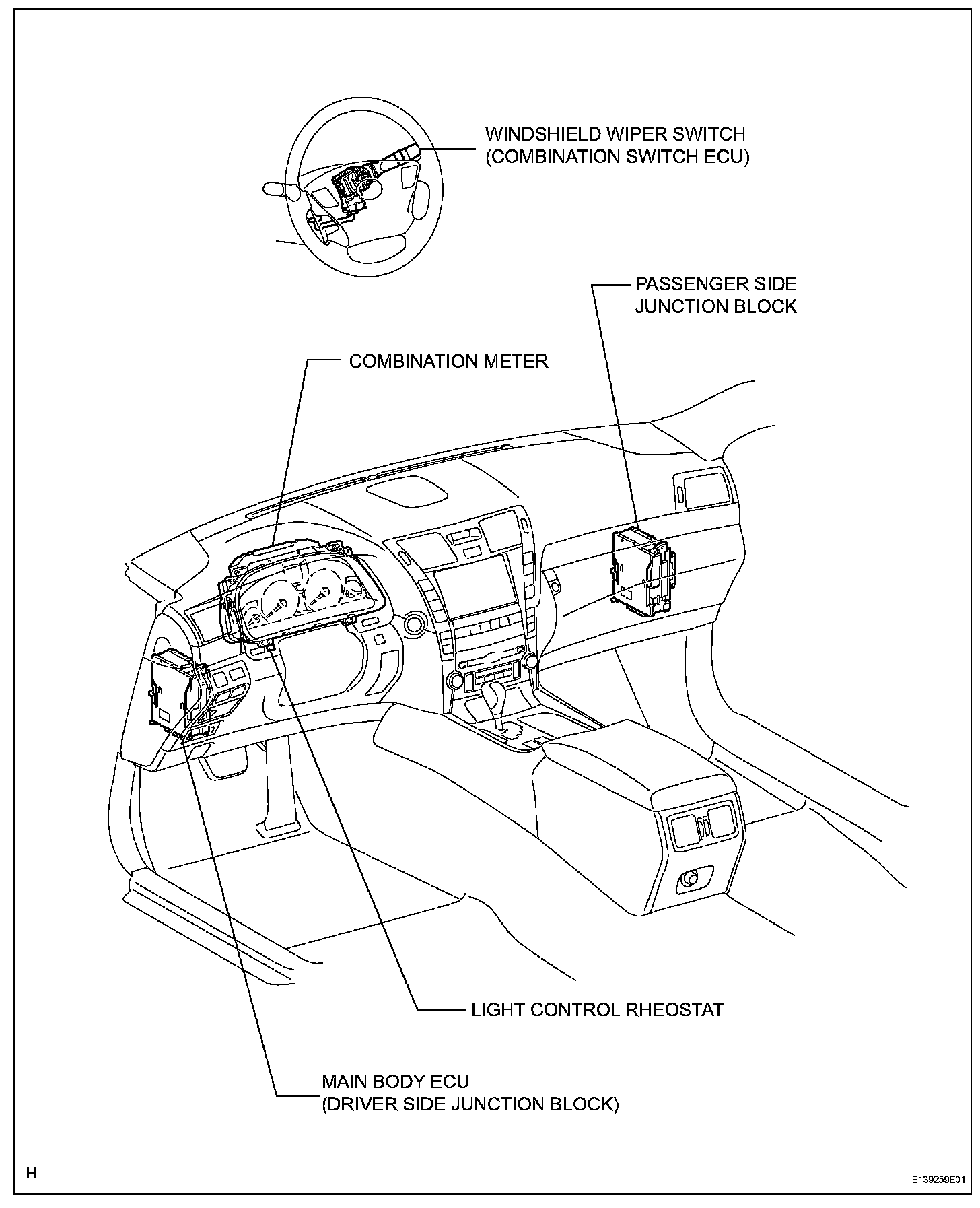

AC - Wi:



A/C - Wi:



Wiper And Washer System:



Dynamic Radar Cruise Control System:
