Fail-Safe Chart

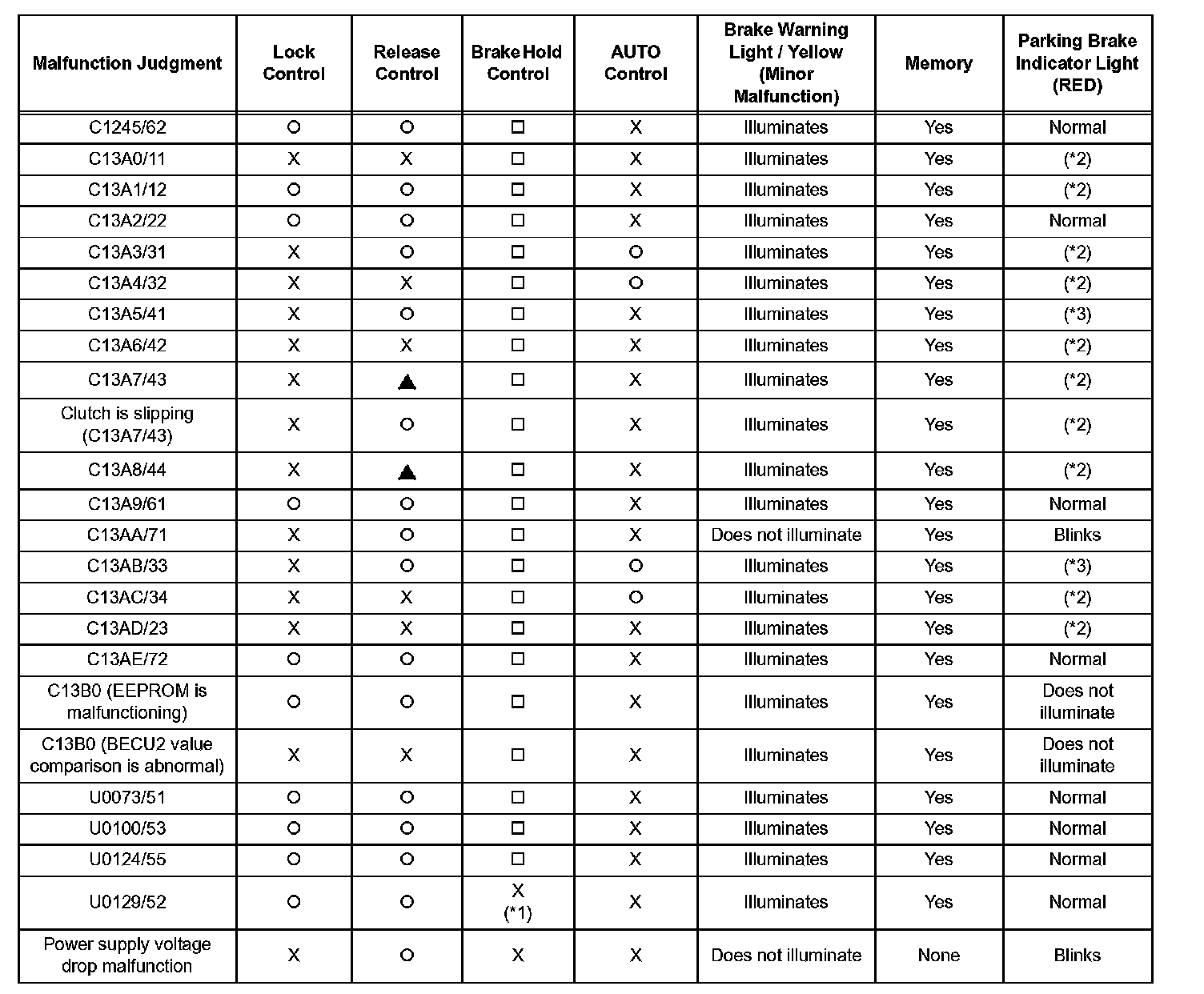

FAIL-SAFE CHART





HINT:
^ *1: When brake hold control is operating, the parking brake is automatically set.
^ *2: Blinks only when lock control or release control request is received. For other cases, displays normally.
^ *3: Blinks only when lock control request is received. For other cases, displays normally.
^ "Circle": Control continues
^ "Square": "Depress the brake pedal" warning display is shown, and depressing brake activates control prohibition
^ X: Immediate control is not permitted
^ "Triangle": Release control is performed, but release operation may not be performed depending on the type of malfunction. After the control, the parking brake indicator light (RED) blinks.
