Engine Mechanical: Engine: Components

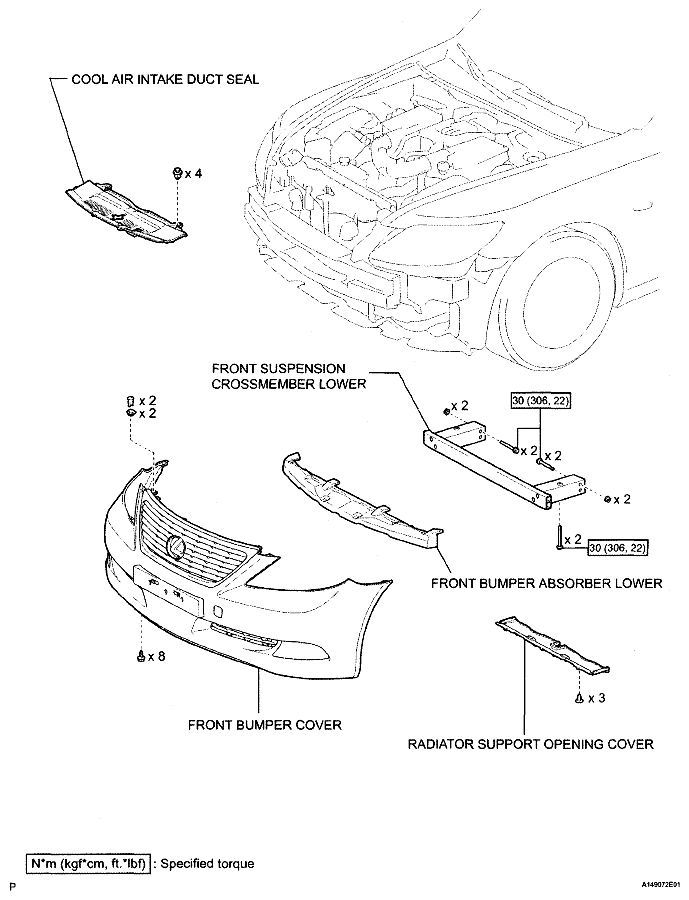

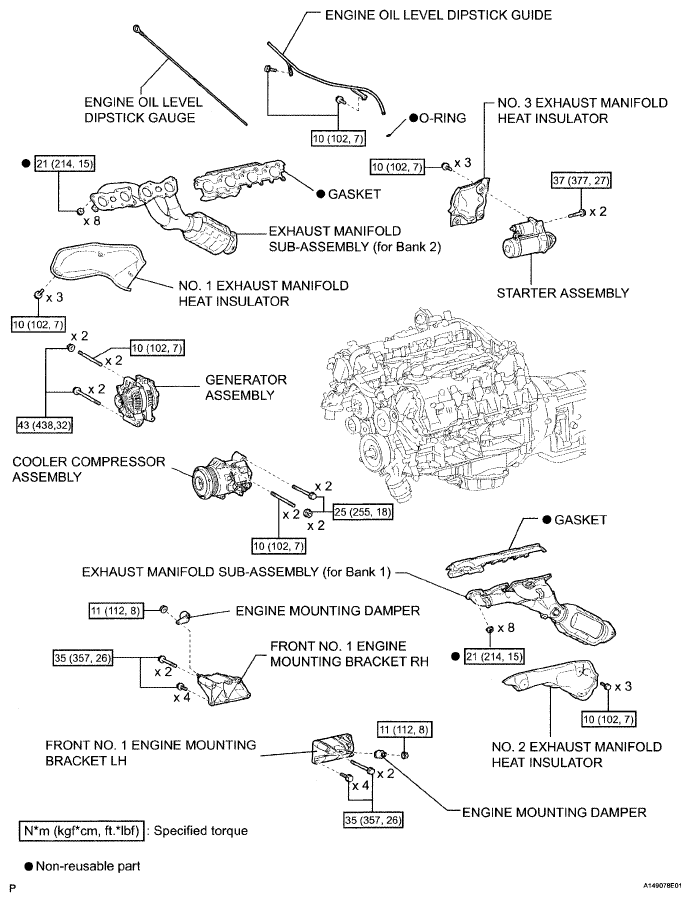

Fig 1: Engine Replacement Components With Torque Specifications (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

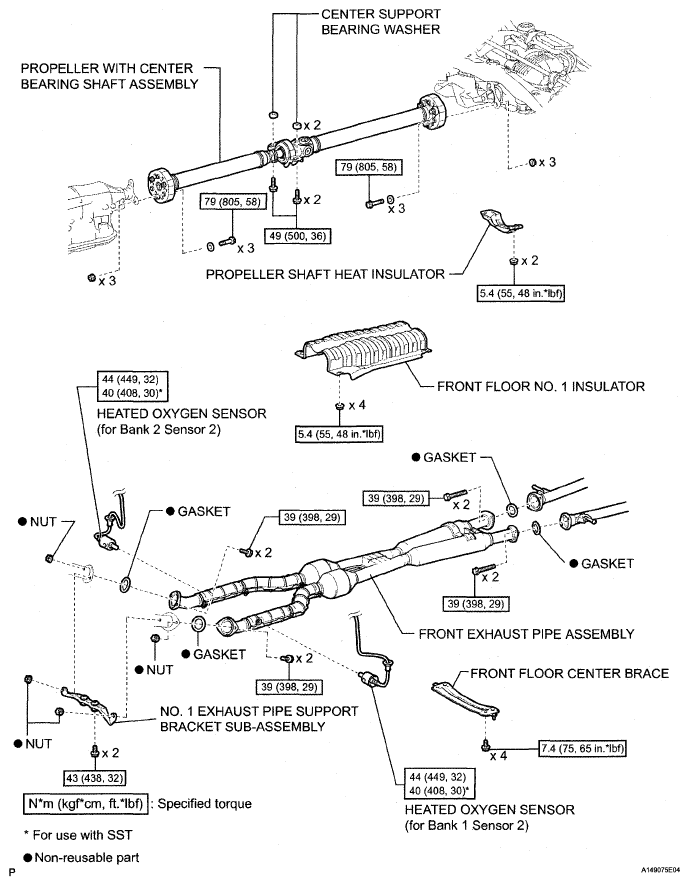

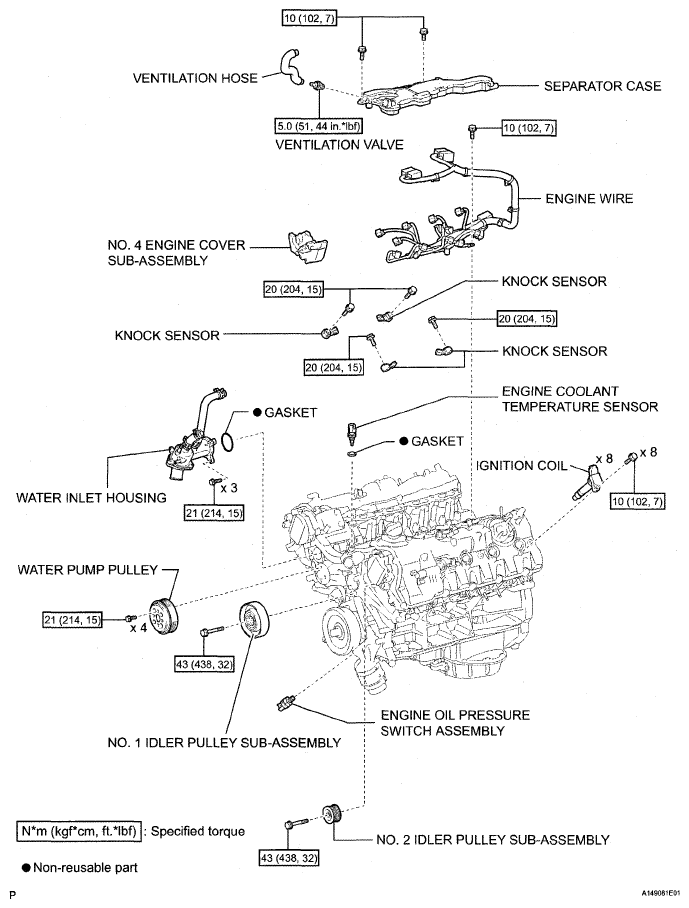

Fig 2: Engine Replacement Components With Torque Specifications (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

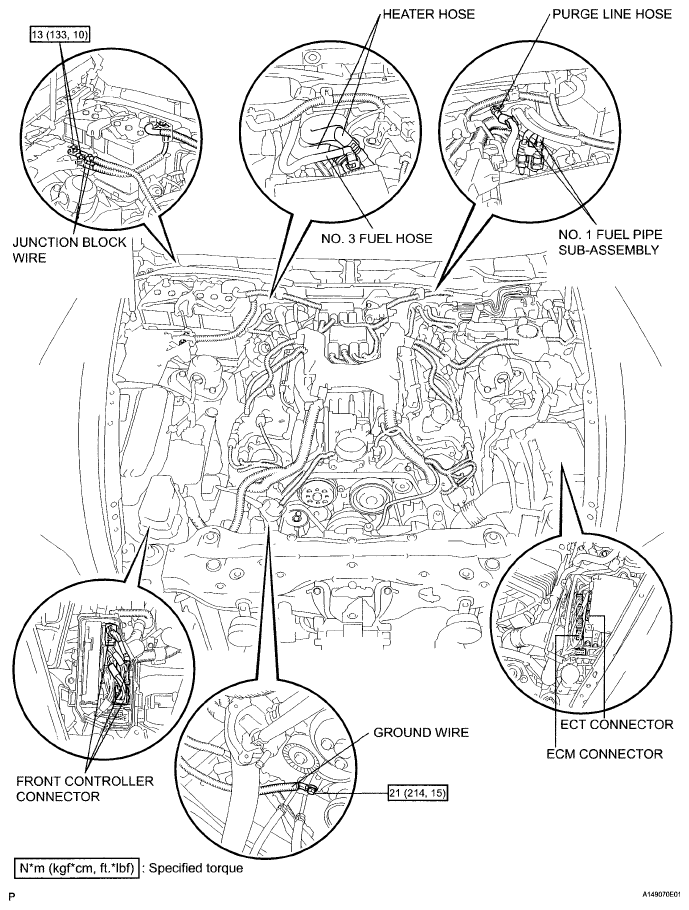

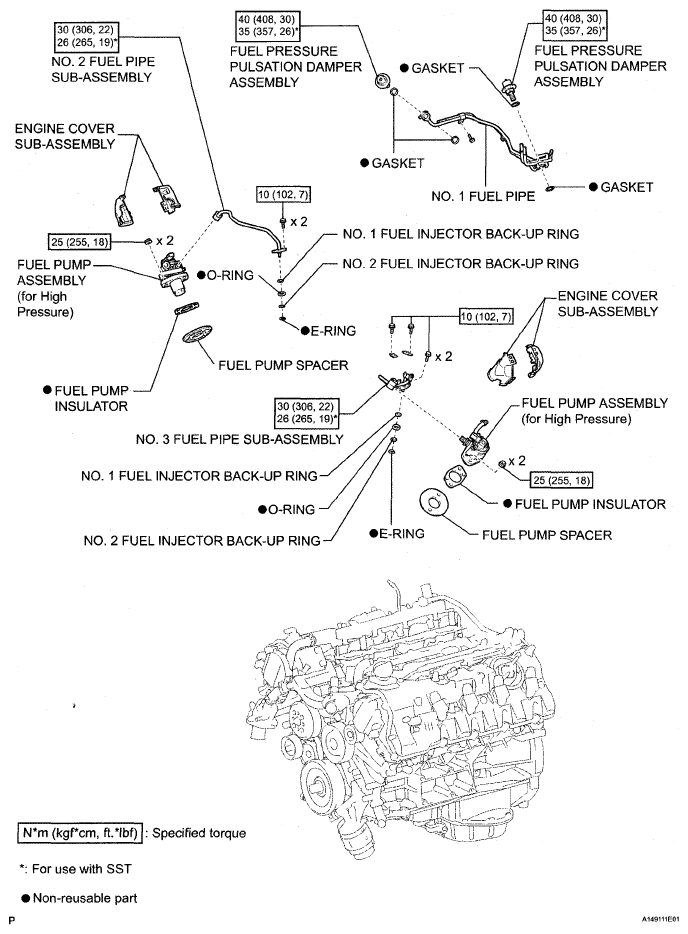

Fig 3: Engine Replacement Components With Torque Specifications (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

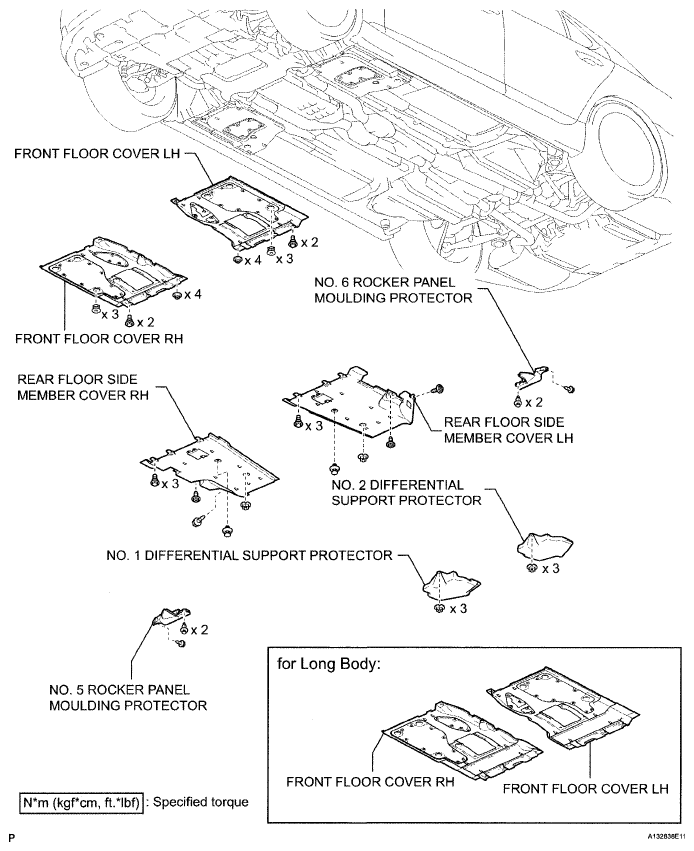

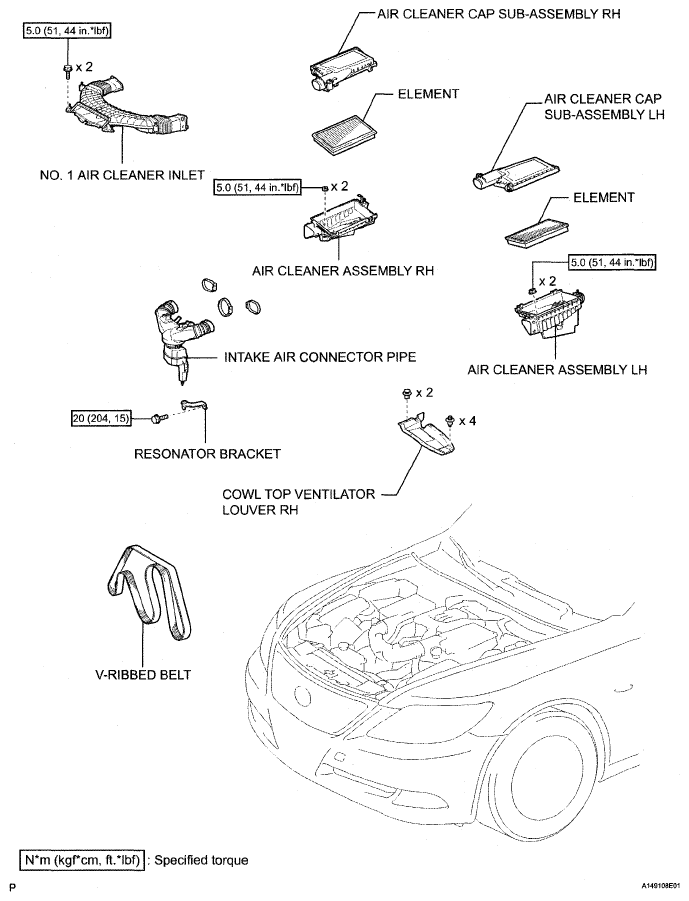

Fig 4: Engine Replacement Components With Torque Specifications (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

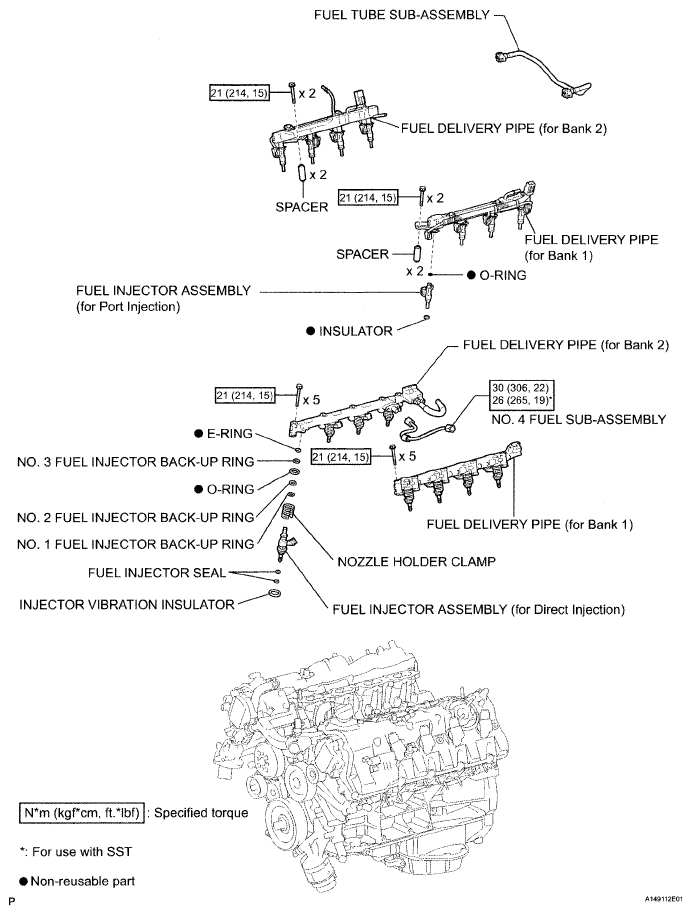

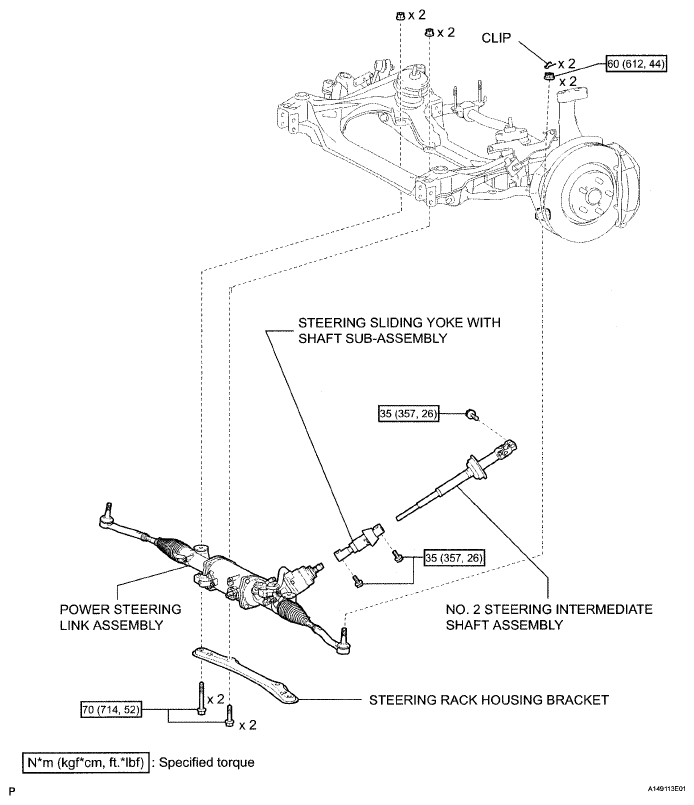

Fig 5: Engine Replacement Components With Torque Specifications (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

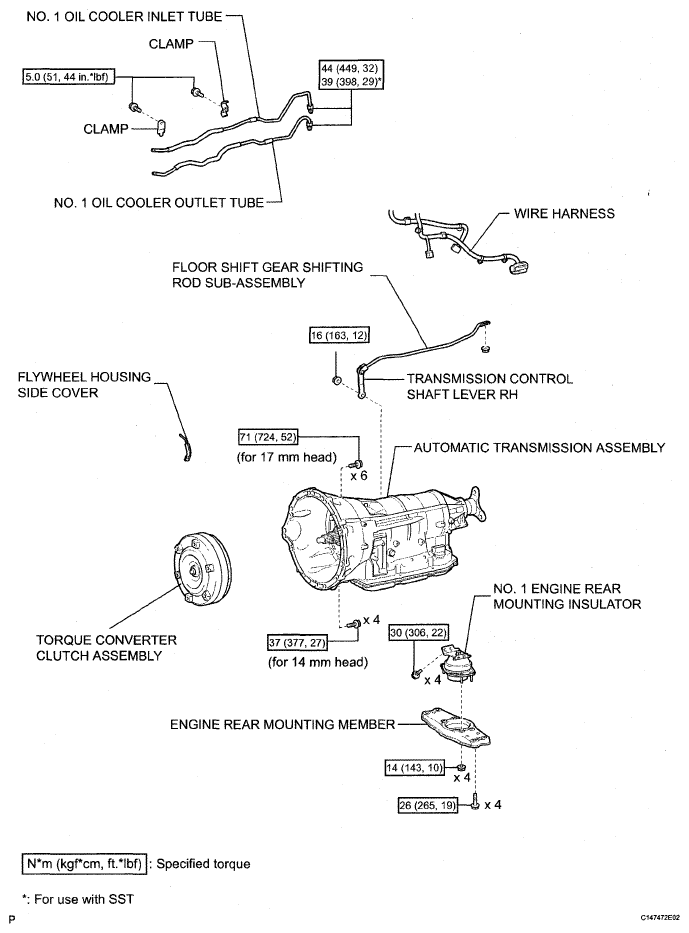

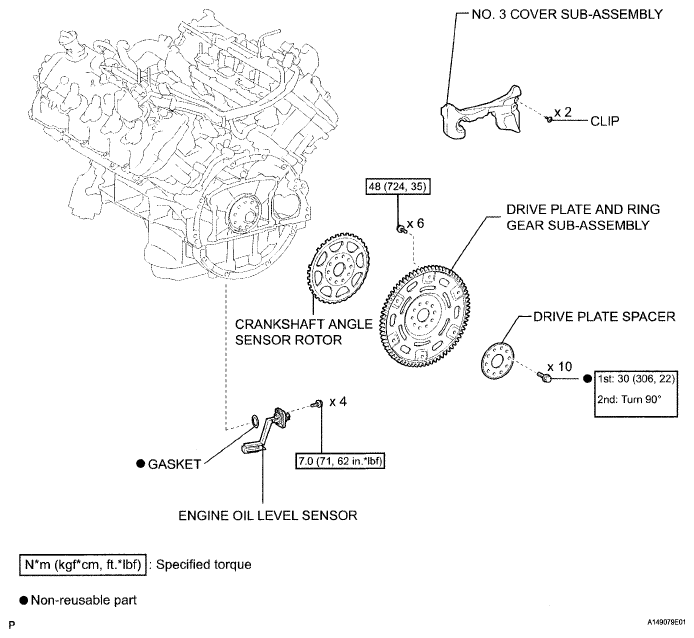

Fig 6: Engine Replacement Components With Torque Specifications (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

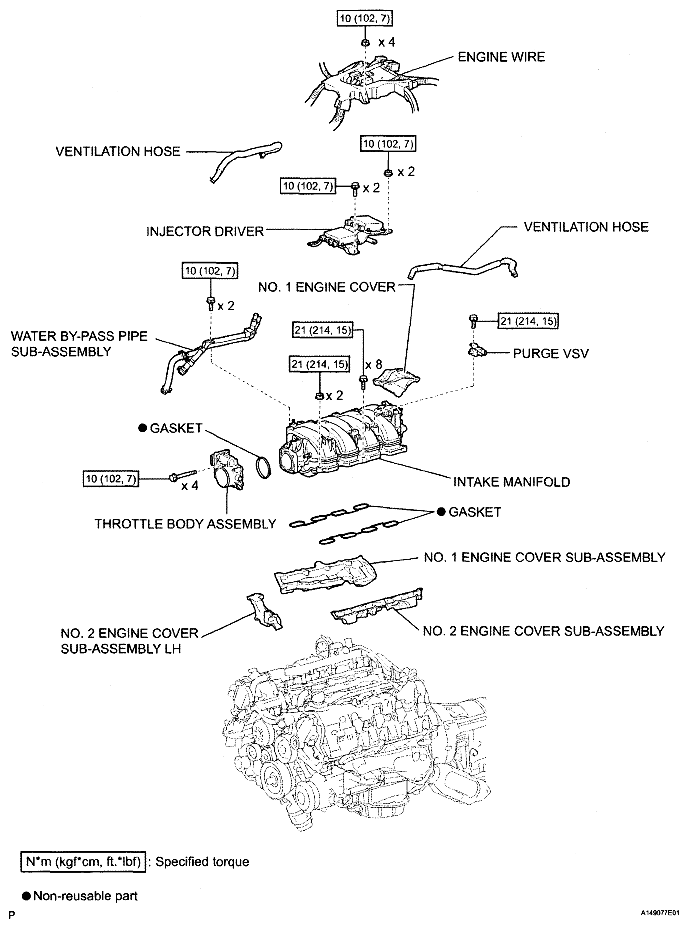

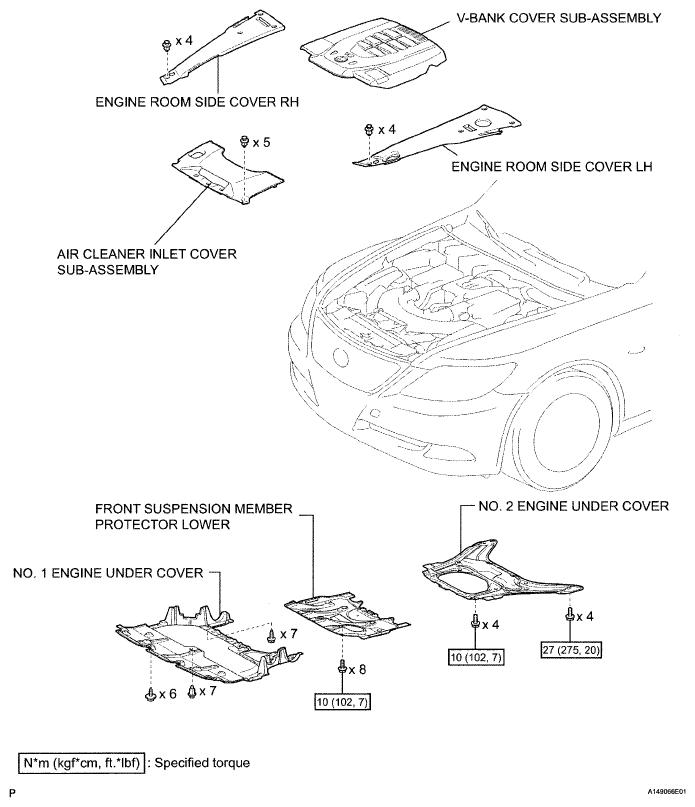

Fig 7: Engine Replacement Components With Torque Specifications (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

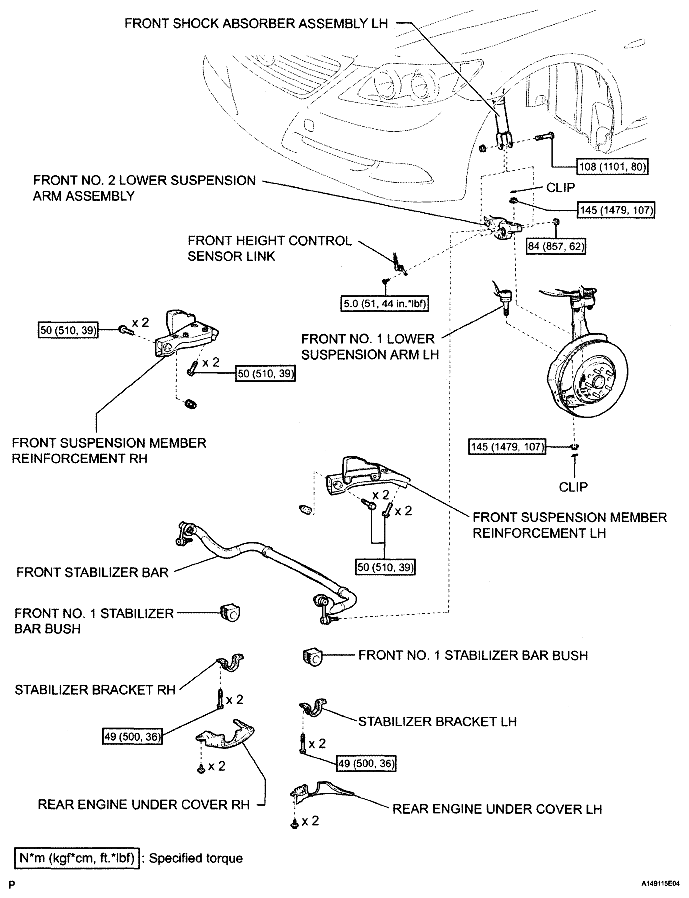

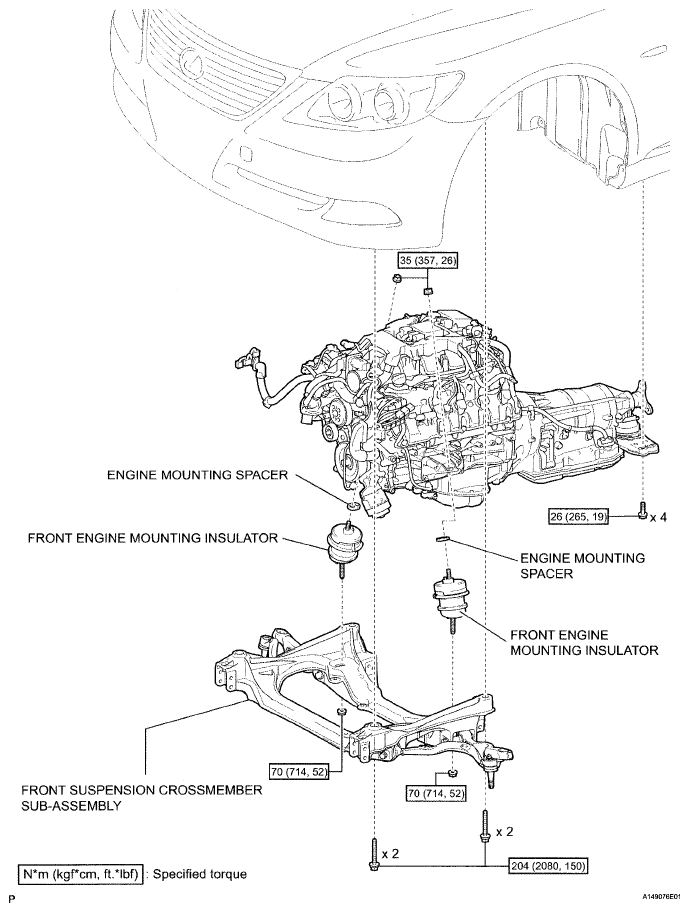

Fig 8: Engine Replacement Components With Torque Specifications (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Replacement Components With Torque Specifications (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Replacement Components With Torque Specifications (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Replacement Components With Torque Specifications (11 Of 16)

Fig 12: Engine Replacement Components With Torque Specifications (12 Of 16)

Fig 13: Engine Replacement Components With Torque Specifications (13 Of 16)

Fig 14: Engine Replacement Components With Torque Specifications (14 Of 16)

Fig 15: Engine Replacement Components With Torque Specifications (15 Of 16)

Fig 16: Engine Replacement Components With Torque Specifications (16 Of 16)
