Display Check Mode

HINT:

• This mode checks the color display on the television display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.
• Use the remote controller for each inspection.
  Fig 1: Identifying Remote Control

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• The television display is not a touch panel type. Do not touch the screen.

1. ENTER DIAGNOSTIC MODE
   1. Enter the diagnostic mode [w/ Navigation System (for HDD)] (see DTC CHECK / CLEAR ).
   2. Enter the diagnostic mode [w/ Navigation System (for DVD)] (see DTC CHECK / CLEAR ).
   3. Enter the diagnostic mode [w/o Navigation System] (see DTC CHECK / CLEAR  ).
2. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "RSE Check" screen.
      Fig 2: Identifying Display Screen - Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.

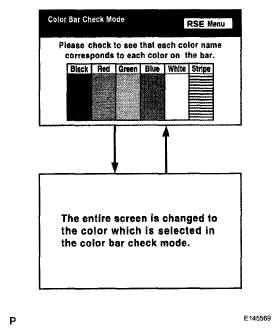

      Fig 3: Identifying Display Screen - Color Bar Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Check the display color.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • The screen returns to the "Color Bar Check" screen if the remote controller is operated again.
3. REMOTE COMMANDER CHECK
   1. Select "Remote Commander Check" from the "RSE Check" screen.
      Fig 4: Identifying Display Screen - RSE Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.
      Fig 5: Identifying Display Screen - Remote Commander Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" from the "RSE Check" screen.
      Fig 6: Identifying Display Screen - RSE Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
      Fig 7: Identifying Display Screen - Vehicle Signal Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      DISPLAY CONTENT CHART



      Display	Contents
      *1: Battery	Battery voltage is displayed.
      *2: VTR ADAPTER	Displays if exterior input through VTR adapter is possible or not. ON: Exterior input possible OFF: Exterior input not possible HINT: Display only shows if there is VTR adapter. Display does not show if exterior input device is connected.

5. AUTO OPEN/CLOSE CHECK
   1. Select "Auto Open/Close Check Mode" screen.
      Fig 8: Identifying Display Screen - RSE Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. This is the screen for inspecting the electronic open and close function of the RSE.
      Fig 9: Identifying Display Screen - Auto Open/Close Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CONTENT CHART



      Display	Contents
      *1: STATUS	Electronic open and close function status.
      *2: Counter	Counts number of electronic open and close operations. 1 count occurs if display opens 90° or more. Open and close counter can display up to 5 digits (limit: 99999).
