Power Shoulder Belt Anchorage: Notes

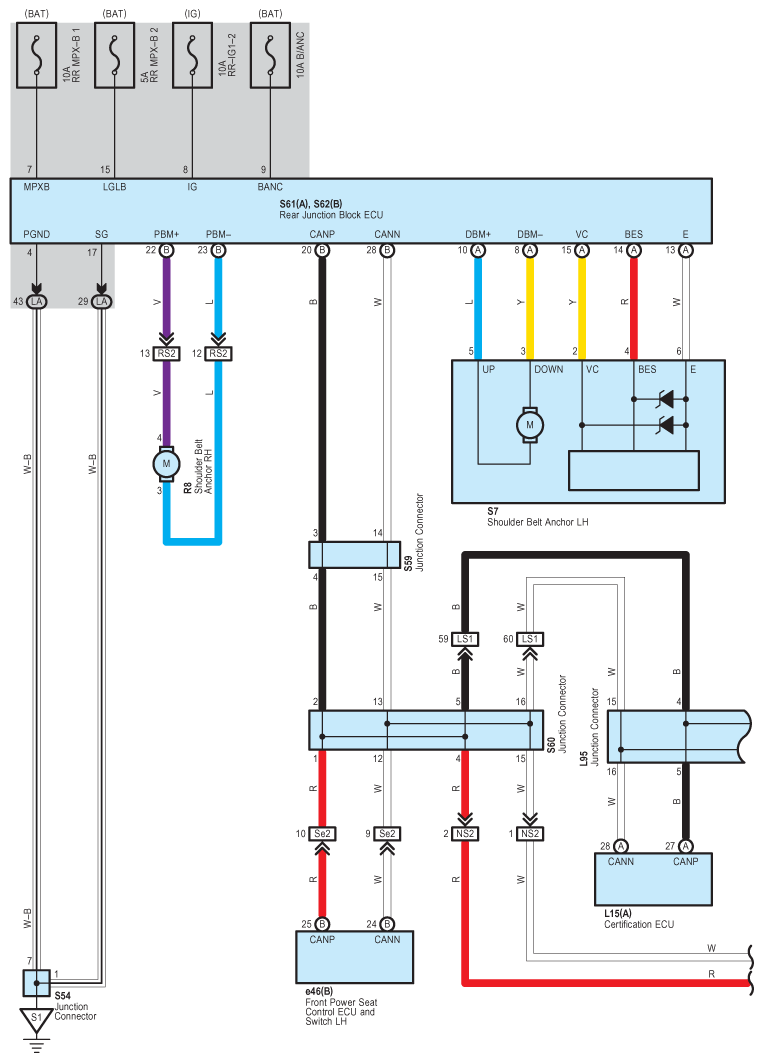

Fig 1: Power Shoulder Belt Anchorage System Wiring Diagram (1 Of 5)
G08920854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

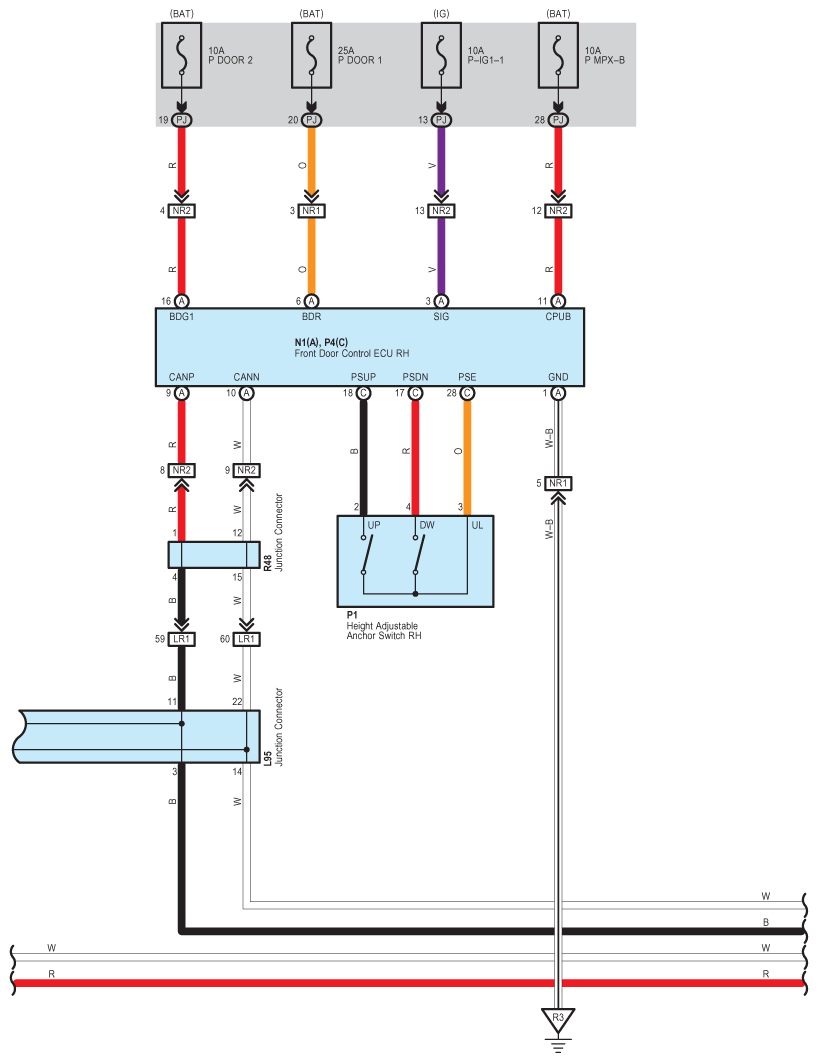

Fig 2: Power Shoulder Belt Anchorage System Wiring Diagram (2 Of 5)
G08920855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

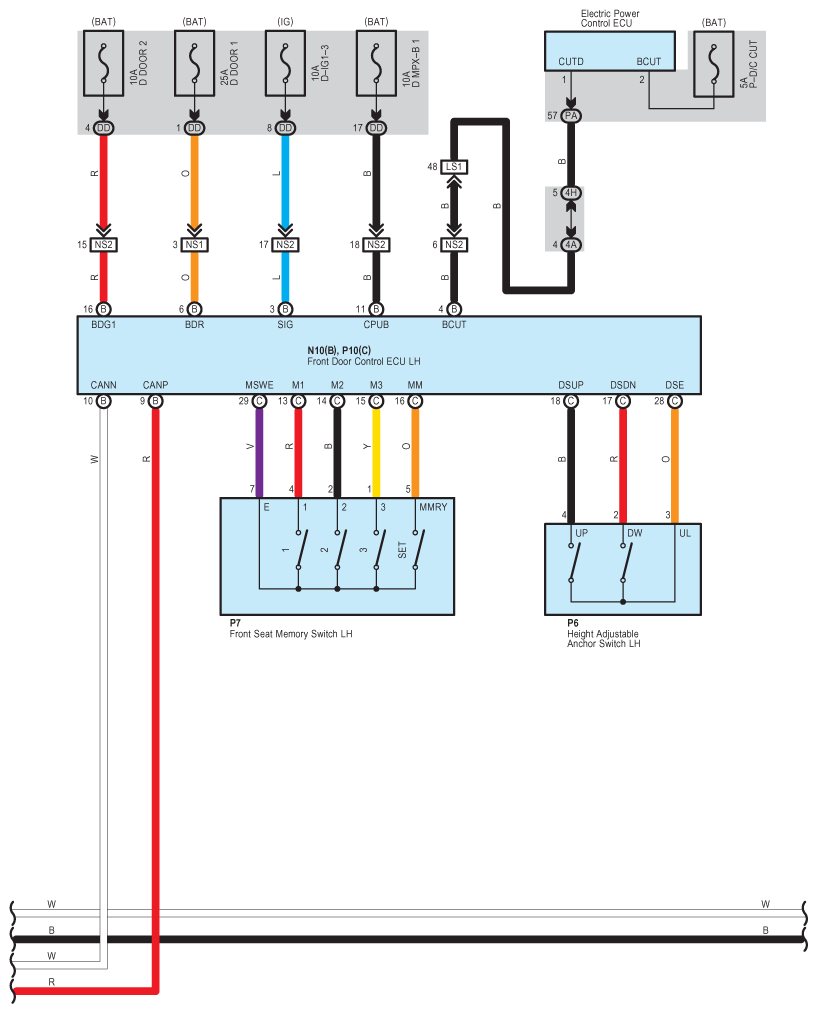

Fig 3: Power Shoulder Belt Anchorage System Wiring Diagram (3 Of 5)
G08920856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

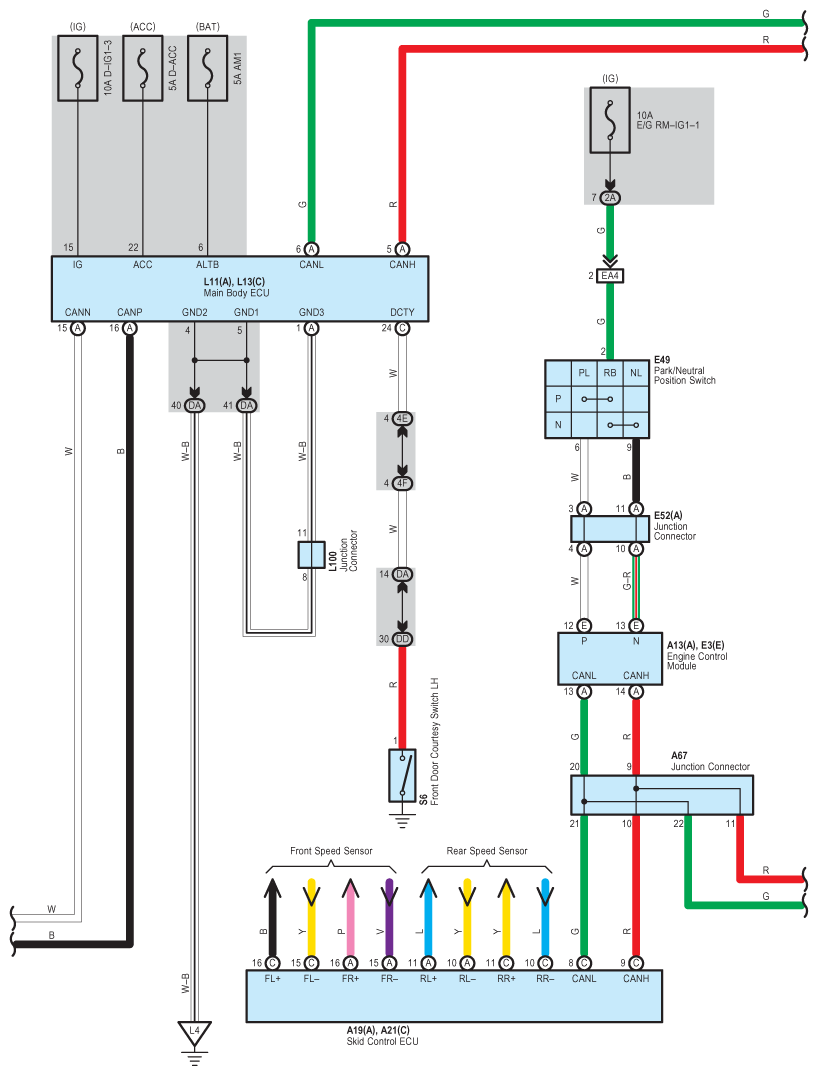

Fig 4: Power Shoulder Belt Anchorage System Wiring Diagram (4 Of 5)
G08920857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

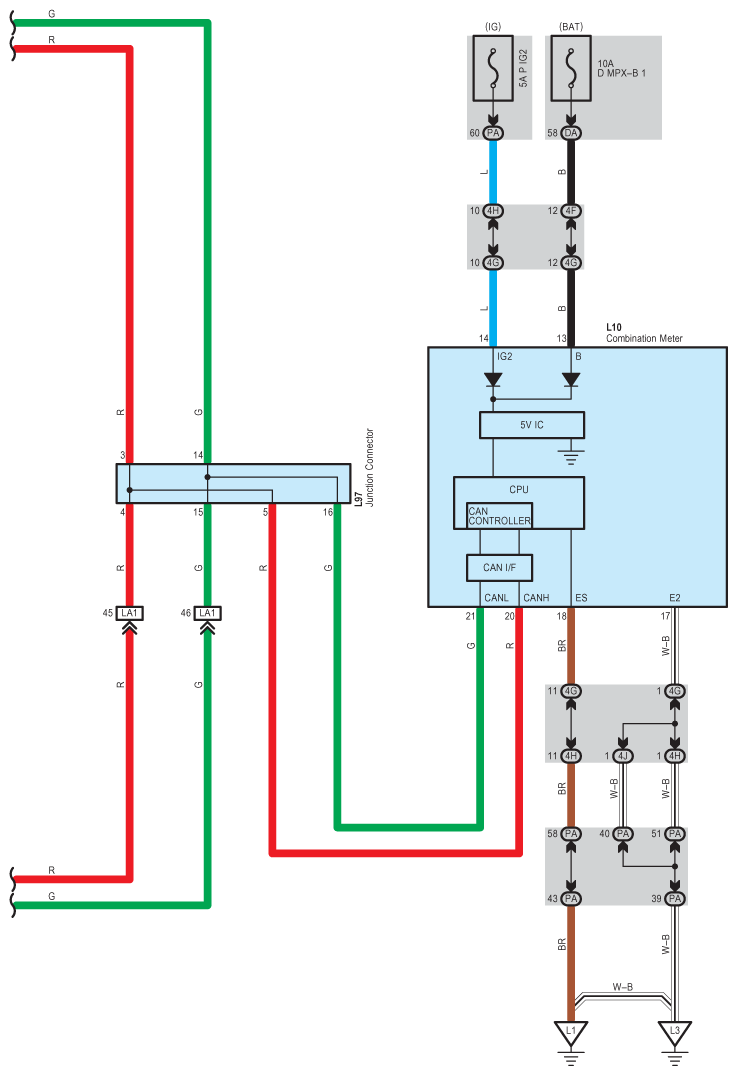

Fig 5: Power Shoulder Belt Anchorage System Wiring Diagram (5 Of 5)
G08920858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
