Combination Meter: Reassembly

INSTALL METER DISPLAY PANEL
1. Temporarily install the meter ECU.

  Fig 1: Installing Meter ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

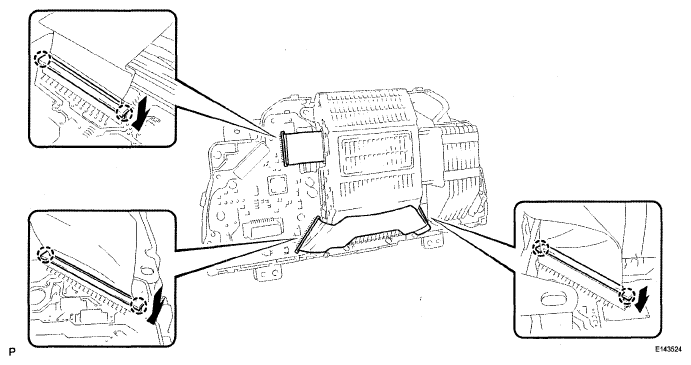

2. Attach the 6 claws to connect each wire harness.

  Fig 2: Locating Meter Display Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER COVER
1. Install the meter cover with the 12 screws.

  Fig 3: Identifying Combination Meter Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER GLASS
1. Attach the 6 claws to install the meter glass.
2. Install the 2 screws.

  Fig 4: Identifying Combination Meter Glass Claws And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COMBINATION METER BRACKET
1. Install the bracket with the 4 screws.

  Fig 5: Identifying No. 1 Combination Meter Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
