Lighting Switch Inspection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.

When lighting switch is in AUTO position: AUTO LIGHT SW ON

Without CONSULT-II

Refer to COMBINATION SWITCH INSPECTION

OK or NG
1. OK: INSPECTION END.
2. NG: Check lighting switch. Refer to COMBINATION SWITCH INSPECTION

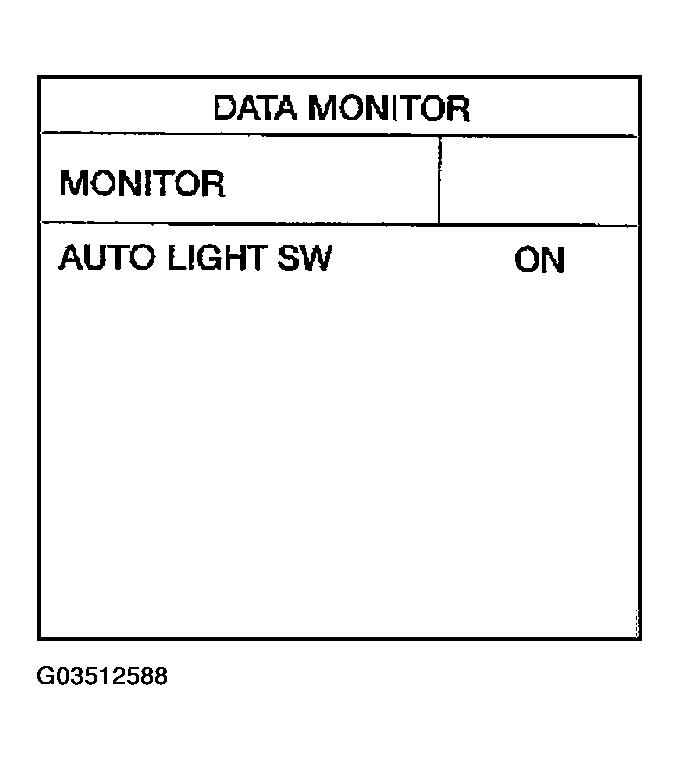

Fig 1: Checking Lighting Switch Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.
