Display with Pushed "ROUTE" button

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Easy Mode

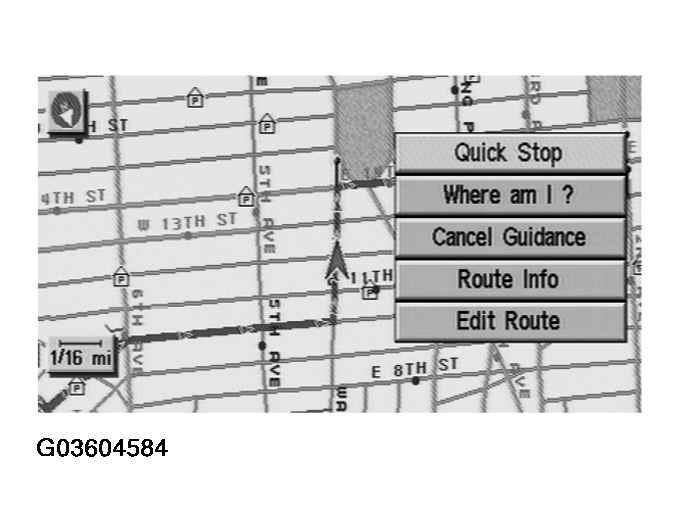

Fig 1: Display BIRDVIEW (Easy Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode

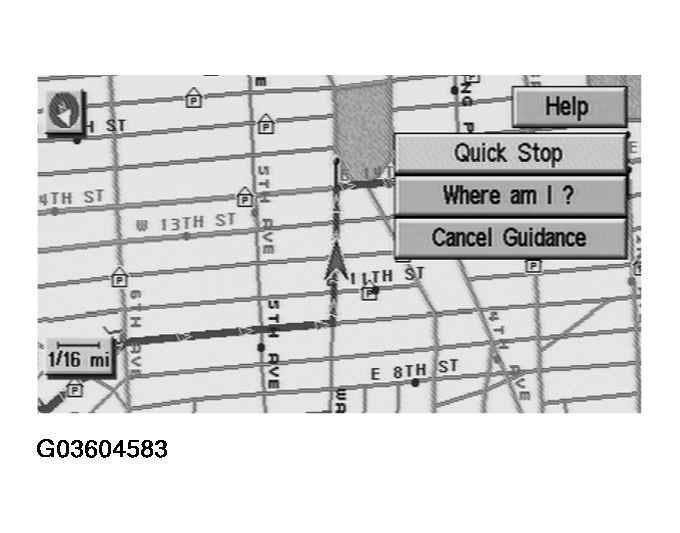

Fig 2: Display BIRDVIEW (Expert Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.

The function of each icon is as follows:

ICONS MODE AND DESCRIPTION

Icon

Mode

Description

Easy

Expert

Quick Stop

The selected facility is set as the destination or way point.
(Route guidance has been turned OFF or the destination has been reached.)

Where am I?

Next, current and previous street names can be displayed.

Cancel Guidance

The following items can be selected.

All Destinations
Way point
Not Cancel

Route Info.⁽¹⁾*

The following items can be selected.

Complete Route
Turn List
Route Simulation (Displayed only when the destination area has been set.)

Edit Route ⁽¹⁾*

Change the destination or add the transit points of the route set in the route guide. (Displayed only when the automatic reroute function has been turned OFF and the recommended route is not followed.)

Help

Explanation of navigational functions appear on the display.

⁽¹⁾	* When destinations have been entered, route guidance has been turned OFF or destination has been reached, "Route Info." and "Edit Route" are not displayed.
