IPDM E/R (Intelligent Power Distribution Module Engine Room): Schematic

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

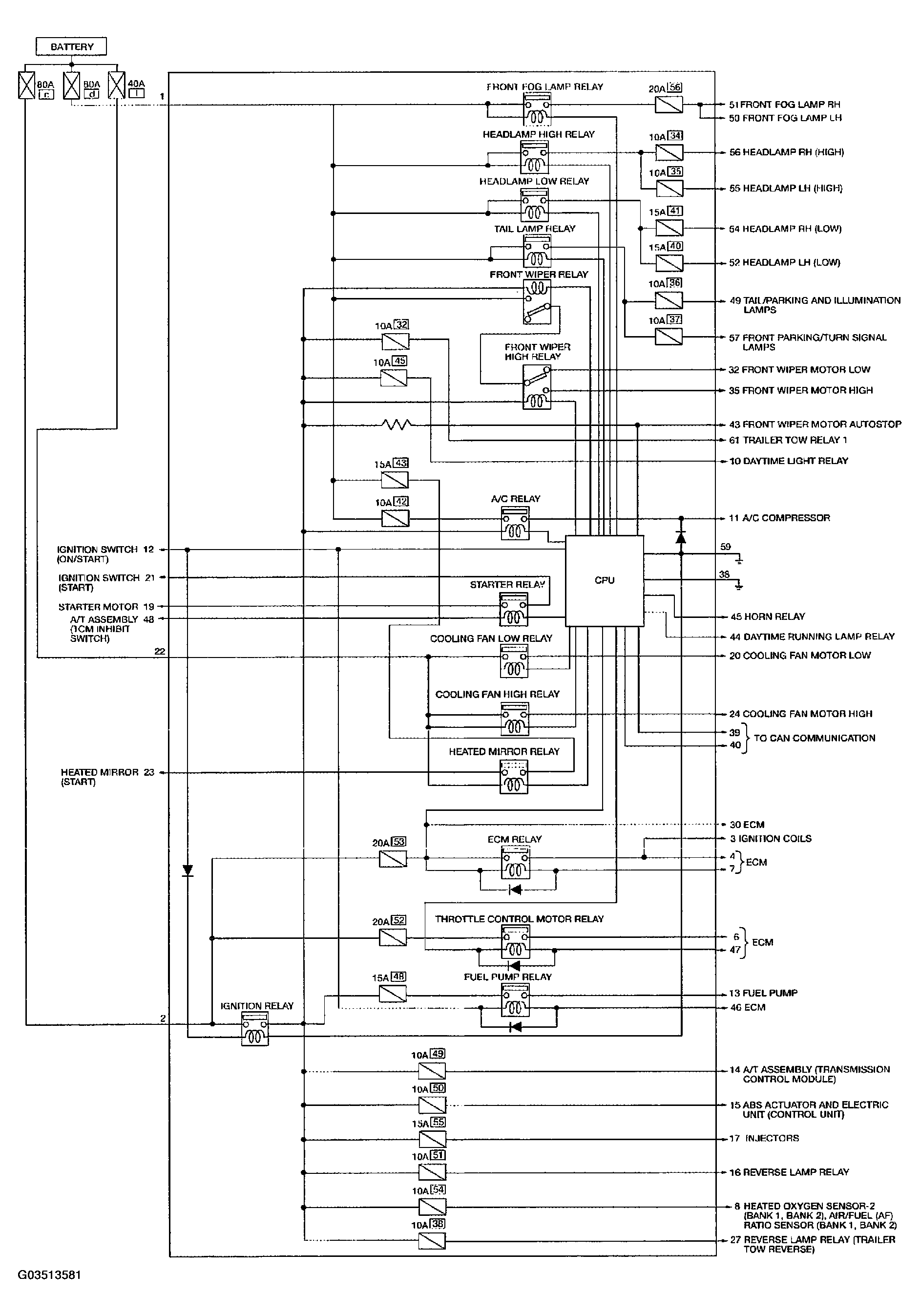

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Schematic
G03513581Courtesy of NISSAN MOTOR CO., U.S.A.
