Vacuum Tank
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect vacuum hose connected to vacuum tank.

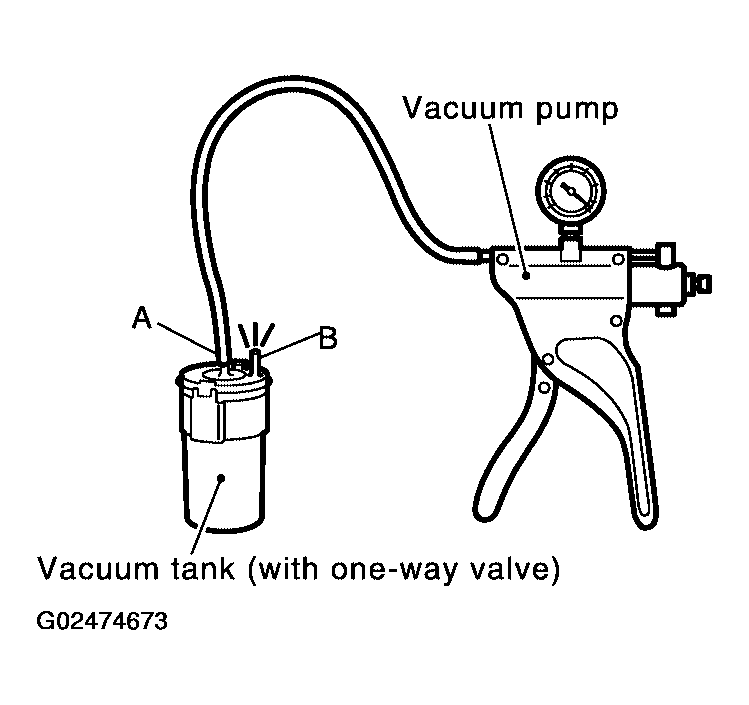

- Connect a vacuum pump to the center port of vacuum tank.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply vacuum and make sure that vacuum exists at the other port.
