Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring new BCM after installation. Refer to "CONFIGURATION ".
  1. Disconnect battery negative cable.
  2. Remove lower knee bolster. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove screw and release BCM.
  4. Disconnect connectors and then remove BCM.

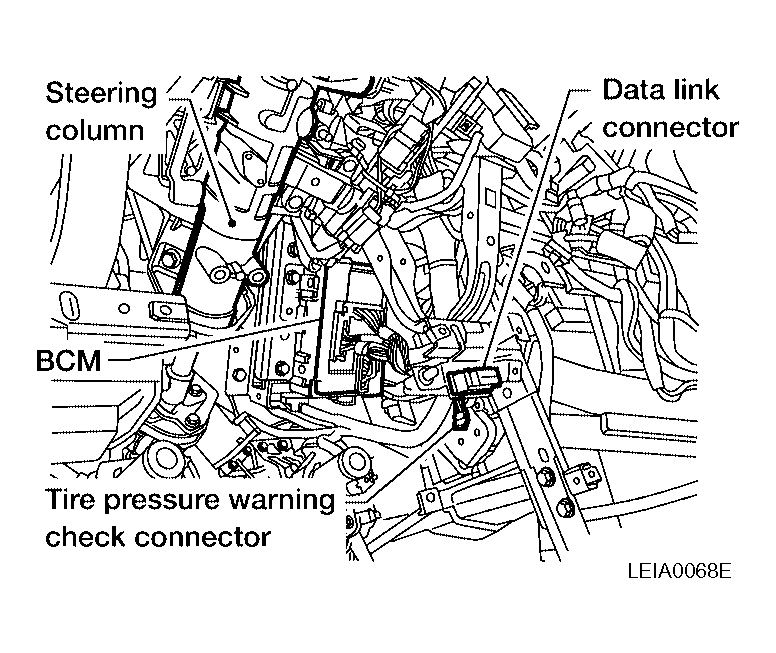

    Fig 1: Identifying BCM & Connectors
    G04188942Courtesy of NISSAN MOTOR CO., U.S.A.
