CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following table to determine CAN system type.

CAN COMMUNICATION SYSTEM TYPE

Axle	2WD
Engine	VQ35DE
Transmission	4 A/T	5 A/T
Brake control	TCS	TCS		VDC
Monochrome display	X	X
Color display			X	X	X
Automatic drive positioner					X
CAN system type	1	2	3	4	5
CAN system trouble diagnosis	CAN SYSTEM (TYPE 1)	CAN SYSTEM (TYPE 2)	CAN SYSTEM (TYPE 3)	CAN SYSTEM (TYPE 4)	CAN SYSTEM (TYPE 5)
X: Applicable

NOTE: Confirming the presence of the following items helps to identify CAN system type.

Models with TCS

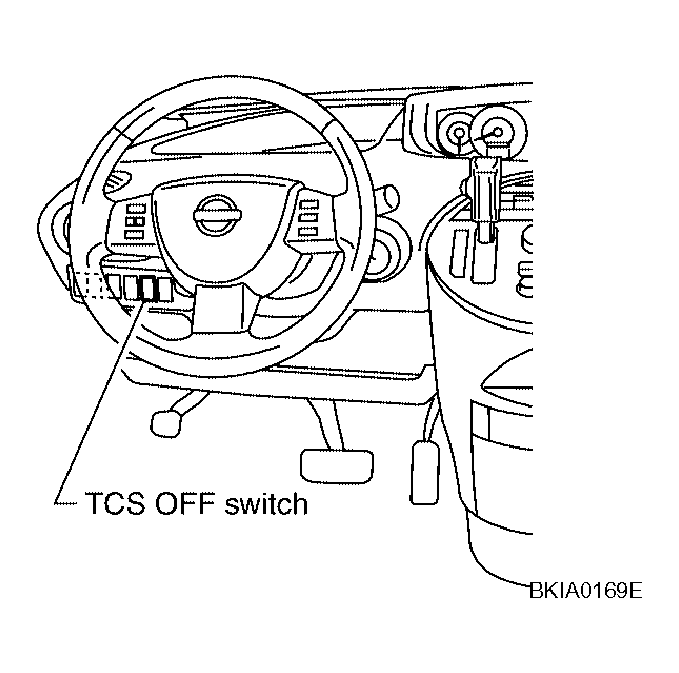

Fig 1: Locating TCS OFF Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with VDC

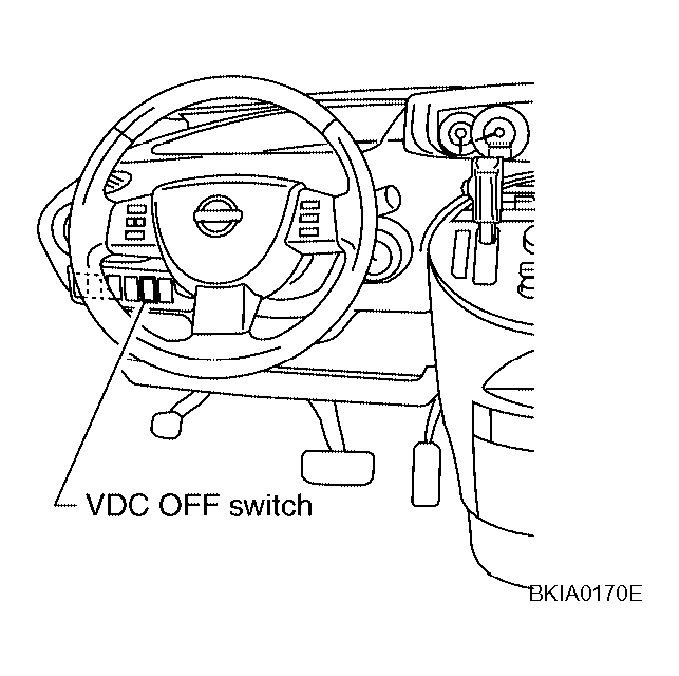

Fig 2: Locating VDC OFF Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with automatic drive positioner

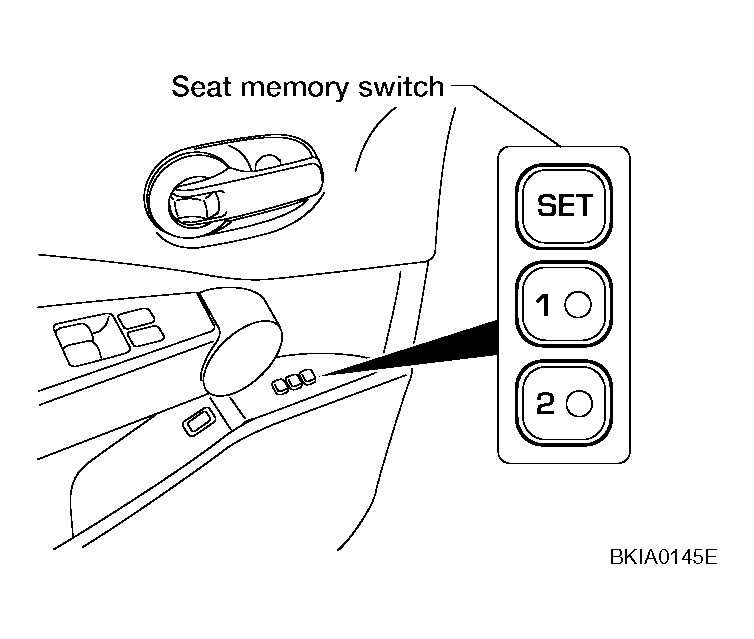

Fig 3: Locating Seat Memory Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
