On Board Diagnostic (OBD) System: Introduction

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actuators. The ECM also records various emission-related diagnostic information including:

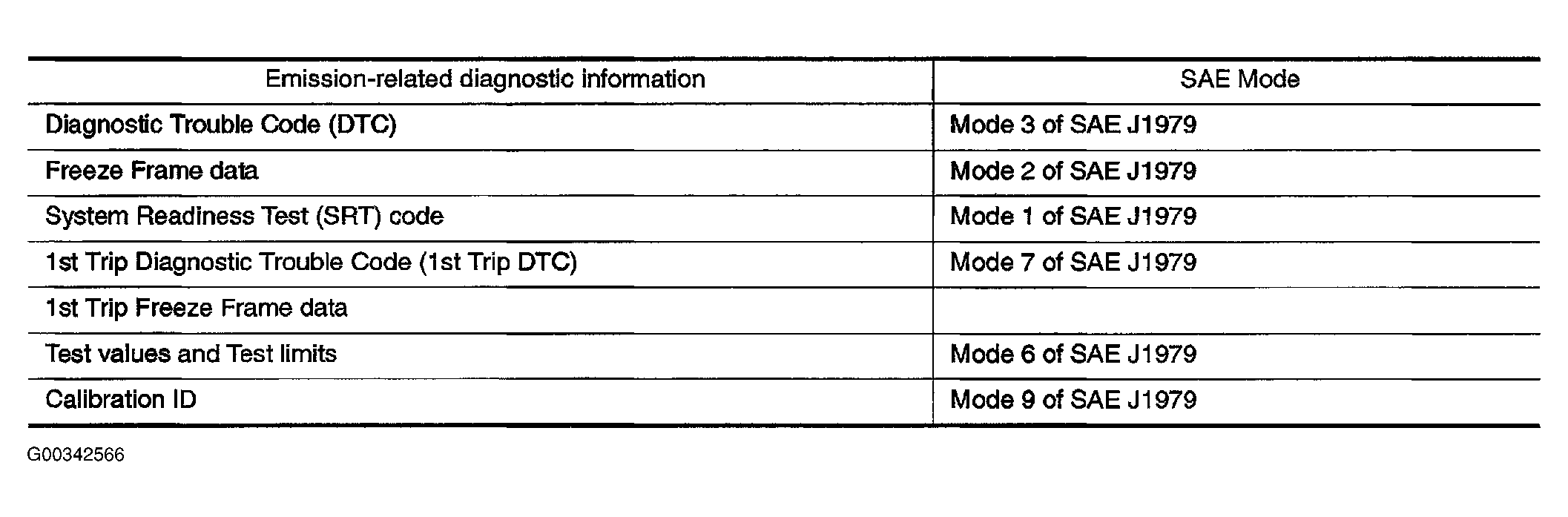

Fig 1: Emission-Related Diagnostic Information Table

Courtesy of NISSAN MOTOR CO., U.S.A.

The information in Fig 1 can be checked using procedures listed in Fig 2 .

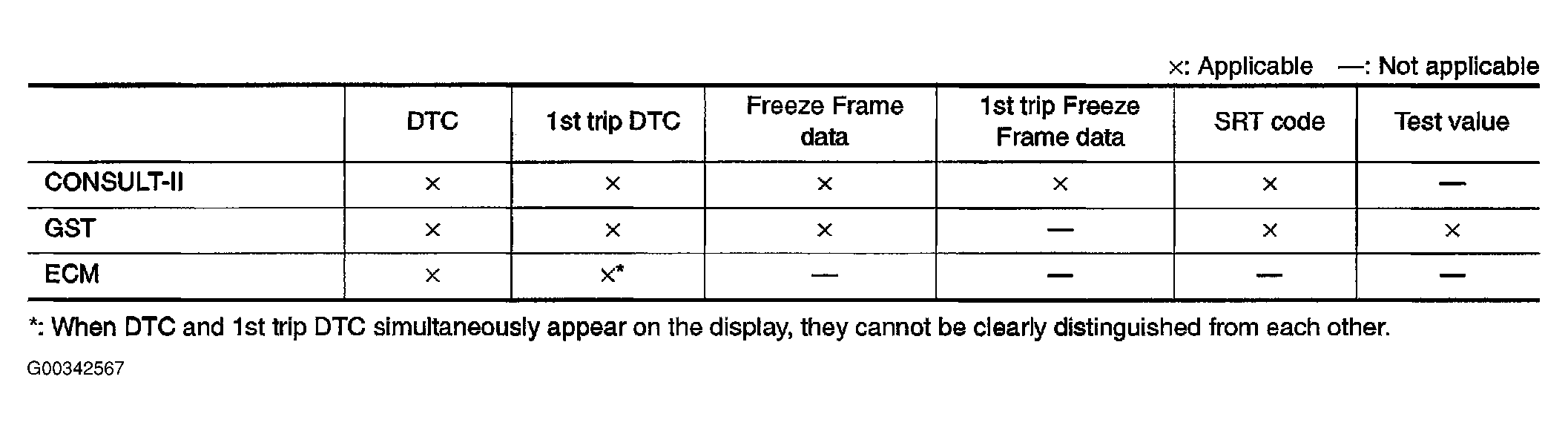

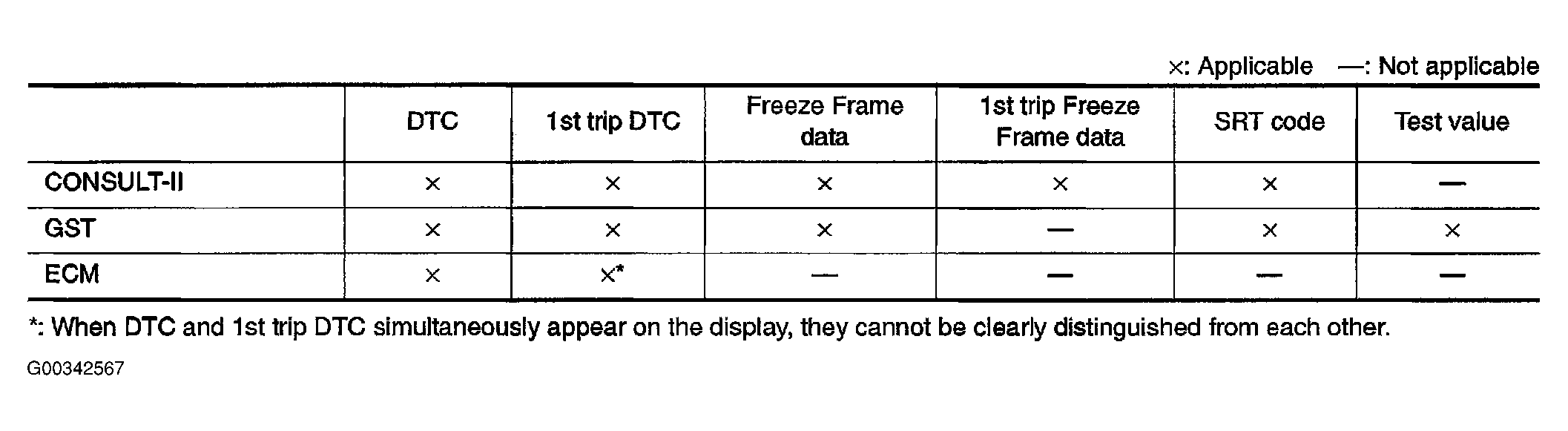

Fig 2: Diagnostic Information Check Table

Courtesy of NISSAN MOTOR CO., U.S.A.

The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to FAIL-SAFE CHART .)
