WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

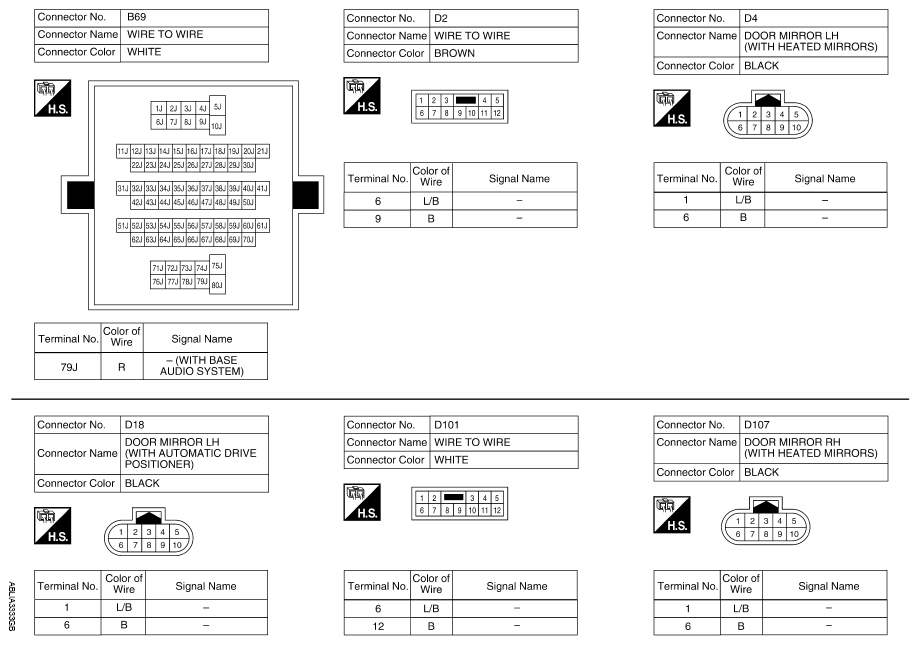

Fig 1: Identifying Rear Window Defogger Connectors (1 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

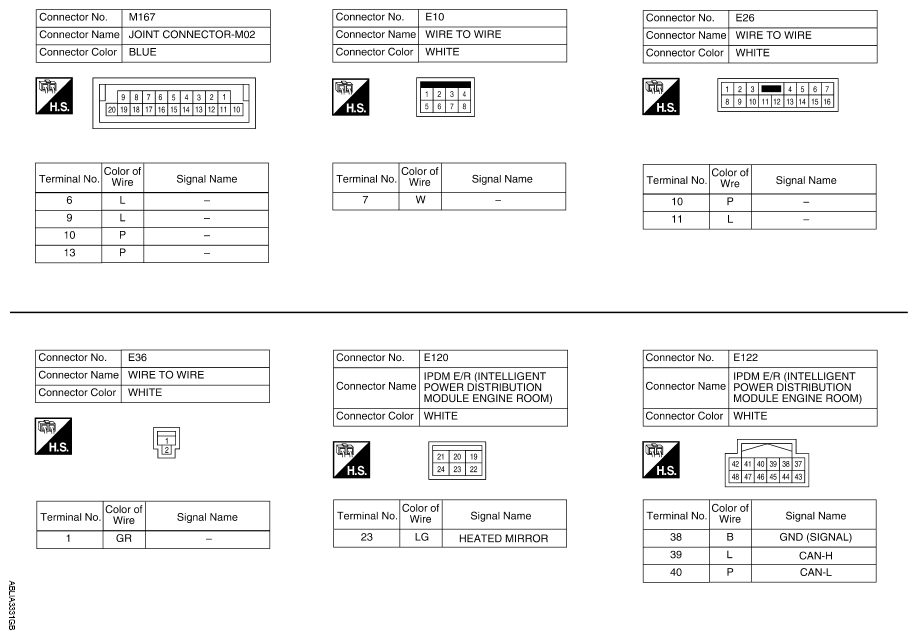

Fig 2: Identifying Rear Window Defogger Connectors (2 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

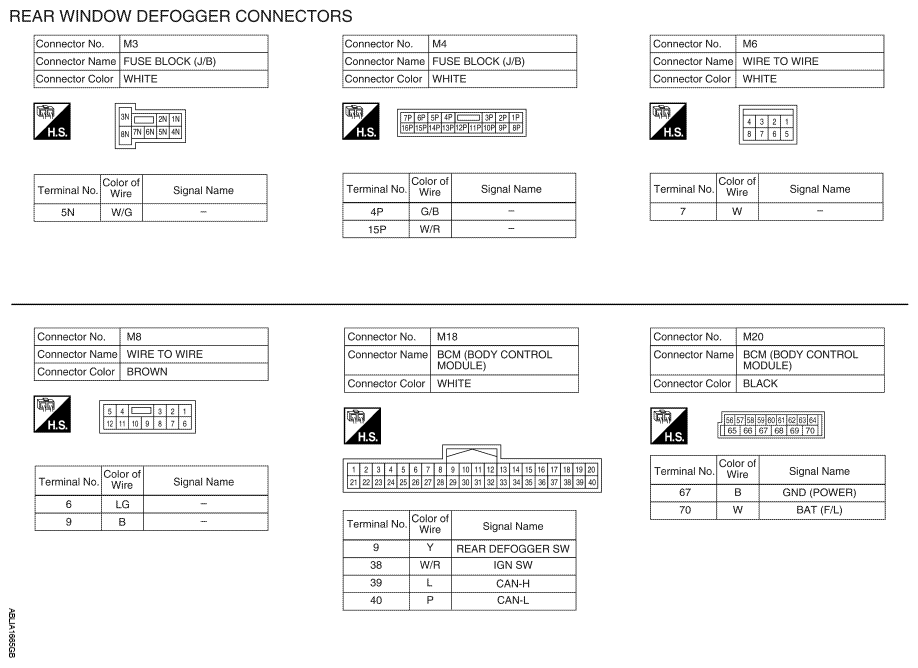

Fig 3: Identifying Rear Window Defogger Connectors (3 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

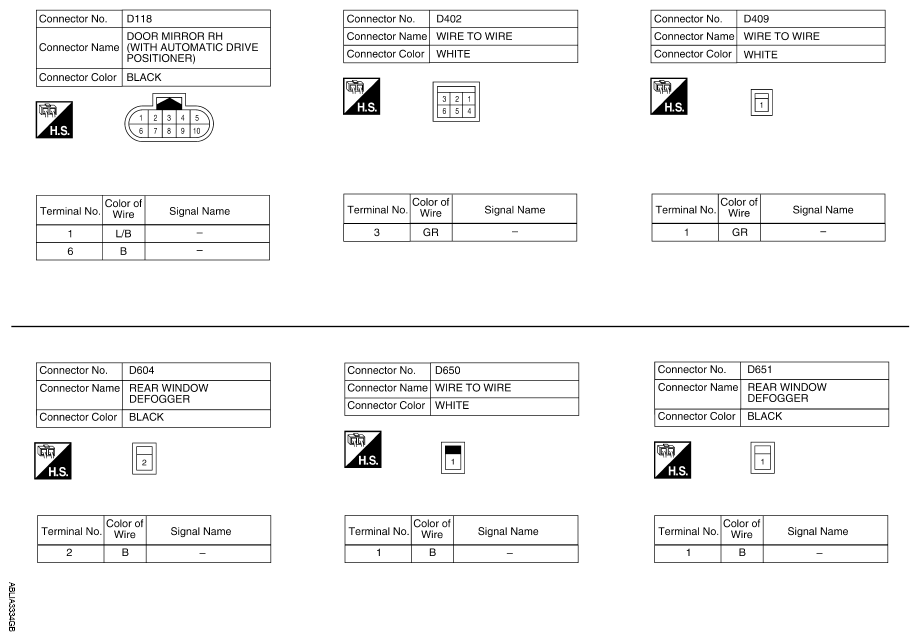

Fig 4: Identifying Rear Window Defogger Connectors (4 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

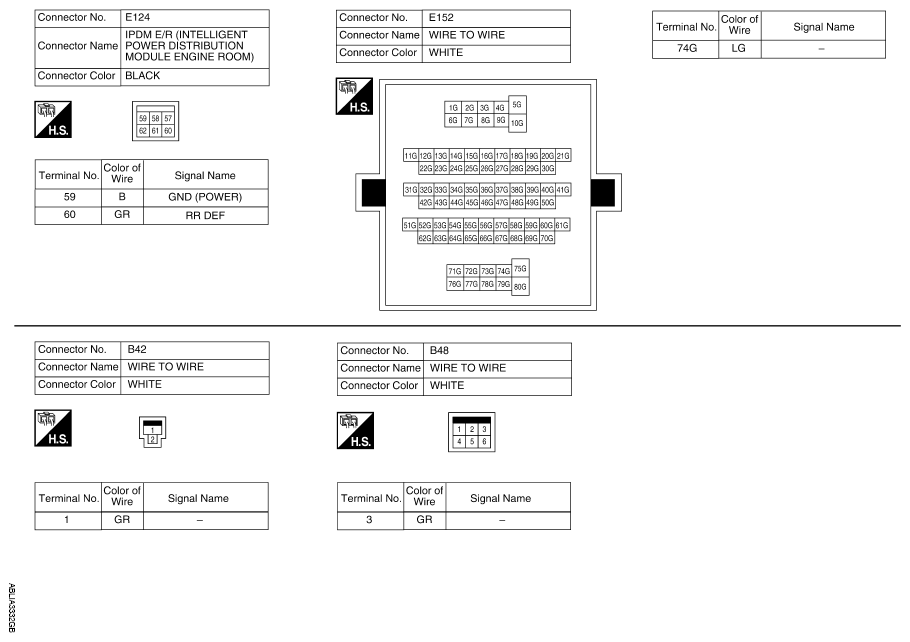

Fig 5: Identifying Rear Window Defogger Connectors (5 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

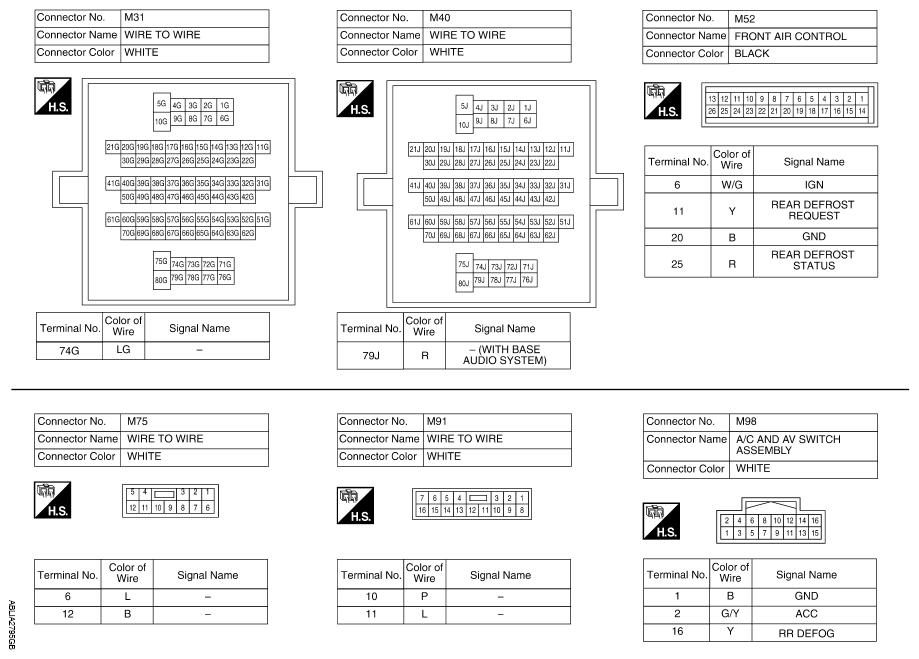

Fig 6: Identifying Rear Window Defogger Connectors (6 Of 6)
