2. Symptom Check

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Select "CAN diagnosis support monitor" in data monitor.
Select "START" and check display content.

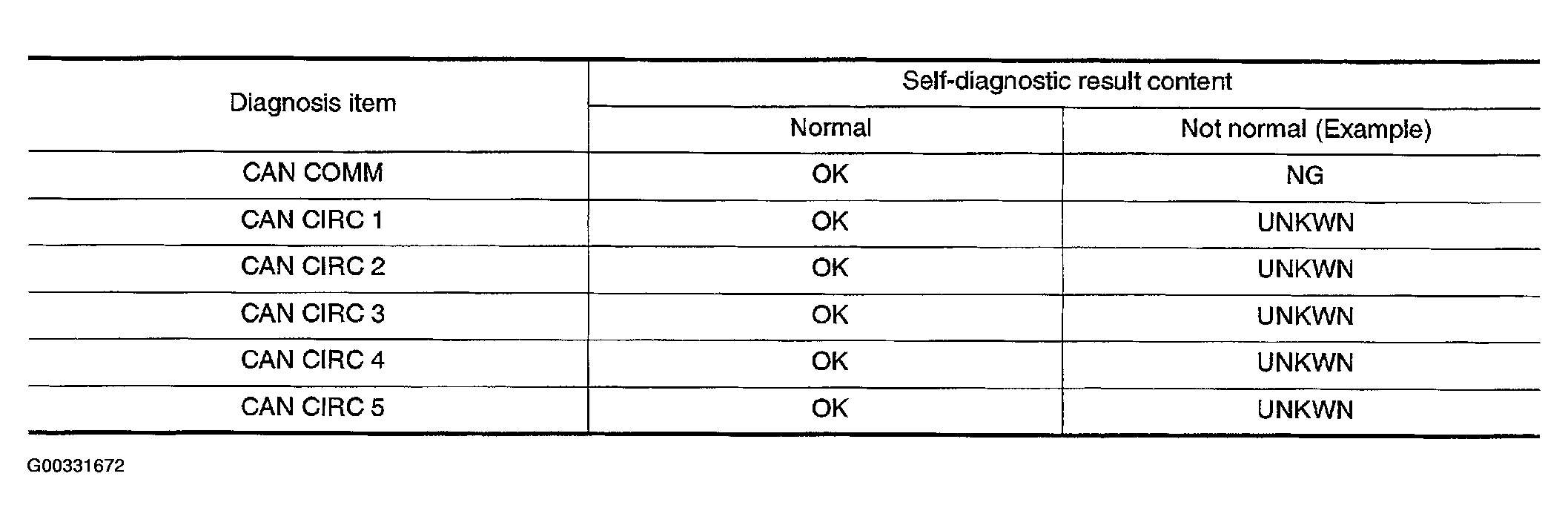

Fig 1: CAN Results On CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

>> After printing the monitor items, go to "CAN System". Refer to CAN COMMUNICATION .
