Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.

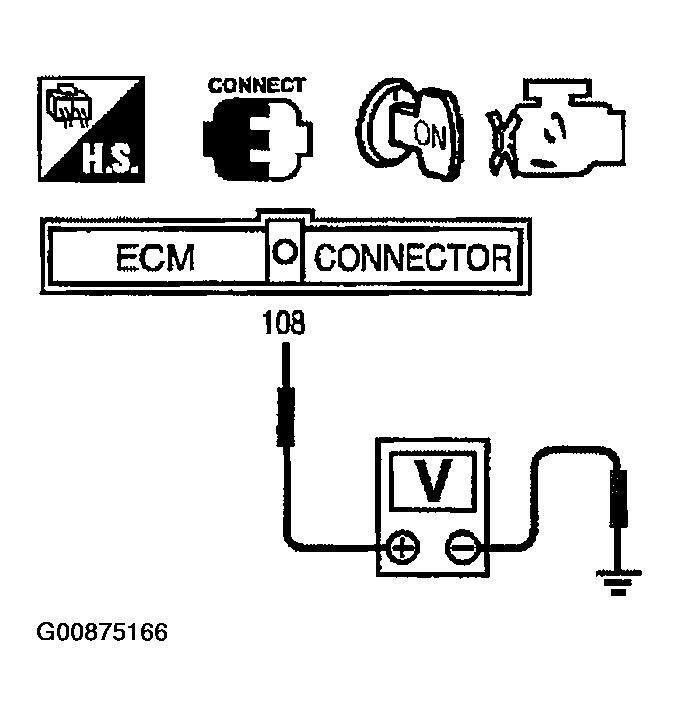

Check voltage between ECM terminal 108 and ground under the following conditions.

A/T models

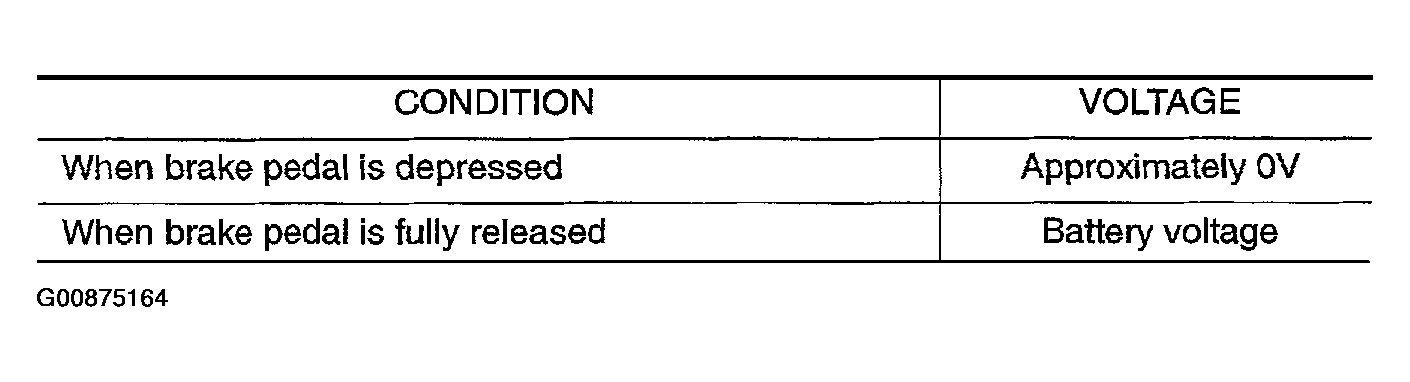

Fig 1: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

M/T models

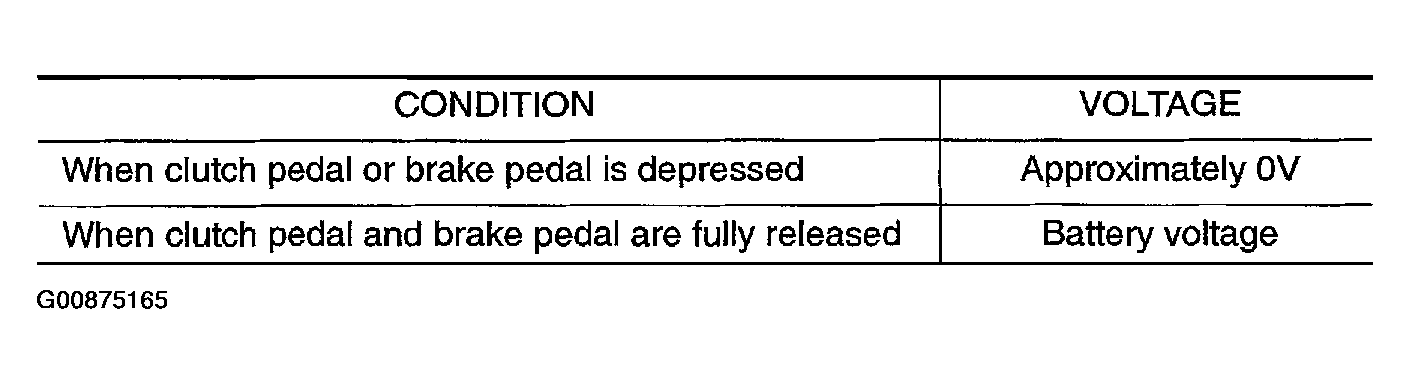

Fig 3: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.
NG (M/T models) : GO TO 3.
NG (A/T models) : GO TO 8 .
