With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check "BRAKE SW2" indication in "DATA MONITOR" mode.

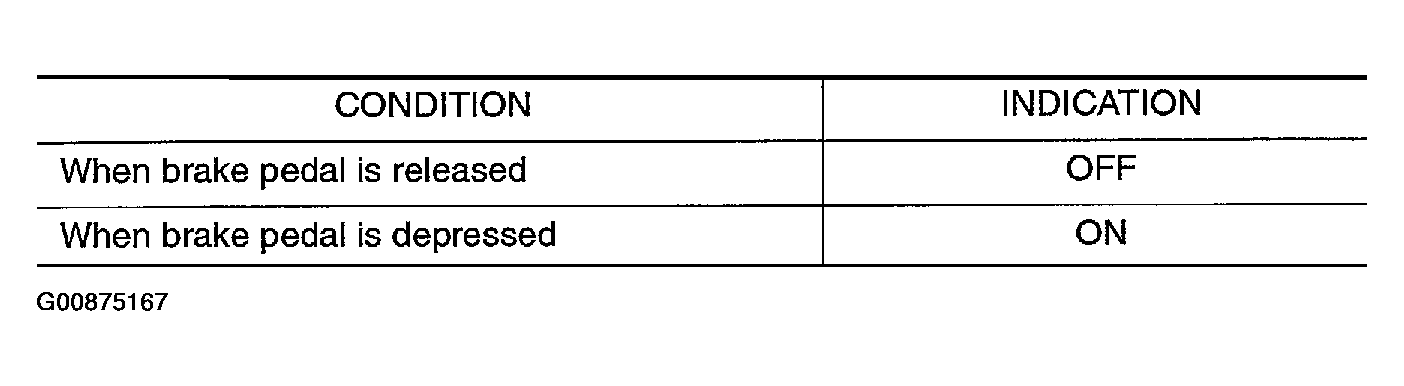

Fig 1: Check Overall Function-II
G00875167Courtesy of NISSAN MOTOR CO., U.S.A.

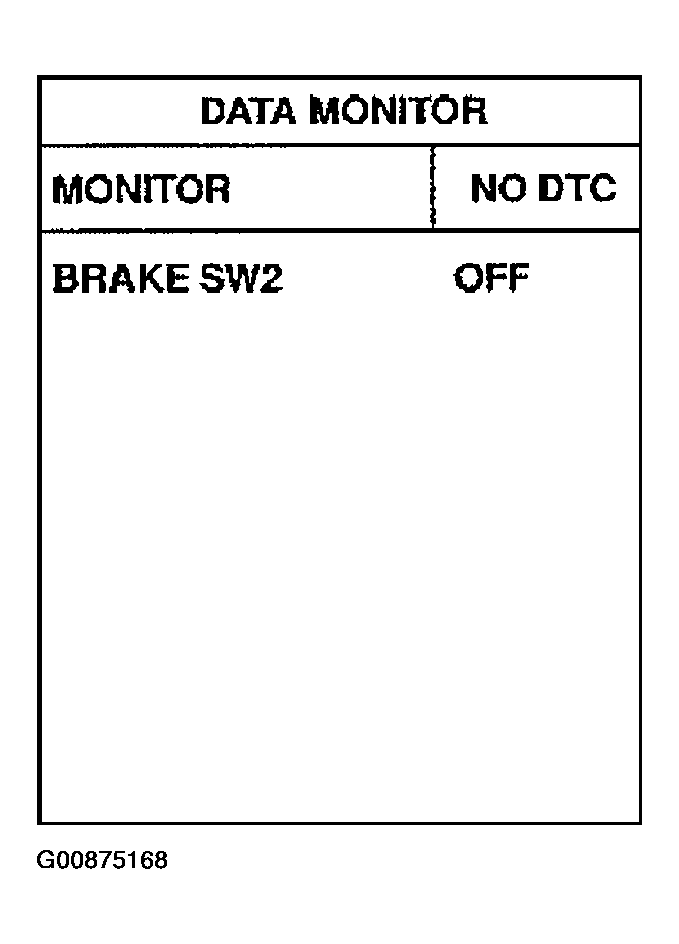

Fig 2: CONSULT-II Display Screen
G00875168Courtesy of NISSAN MOTOR CO., U.S.A.
