Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between ECM terminal 101 and ground under the following conditions.

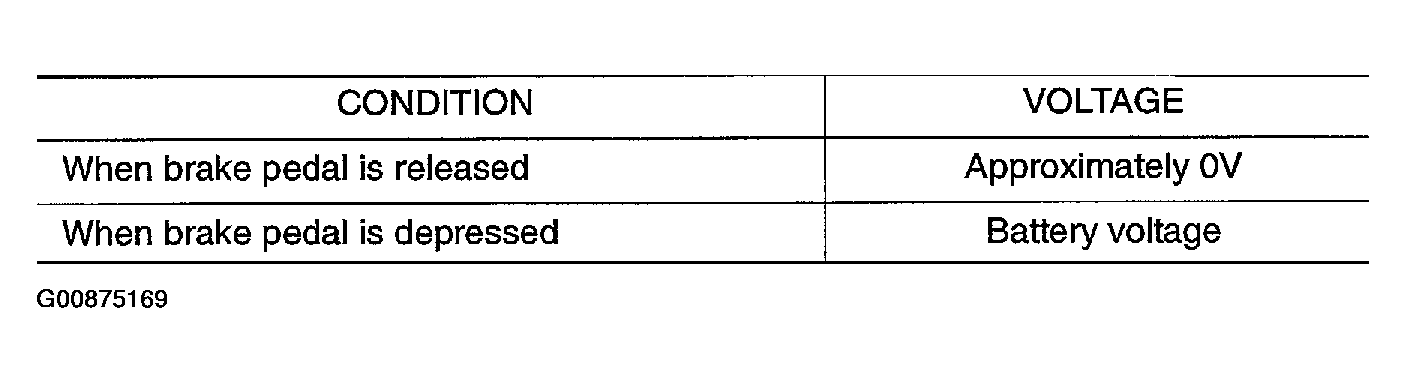

Fig 1: Check Overall Function-II

Courtesy of NISSAN MOTOR CO., U.S.A.

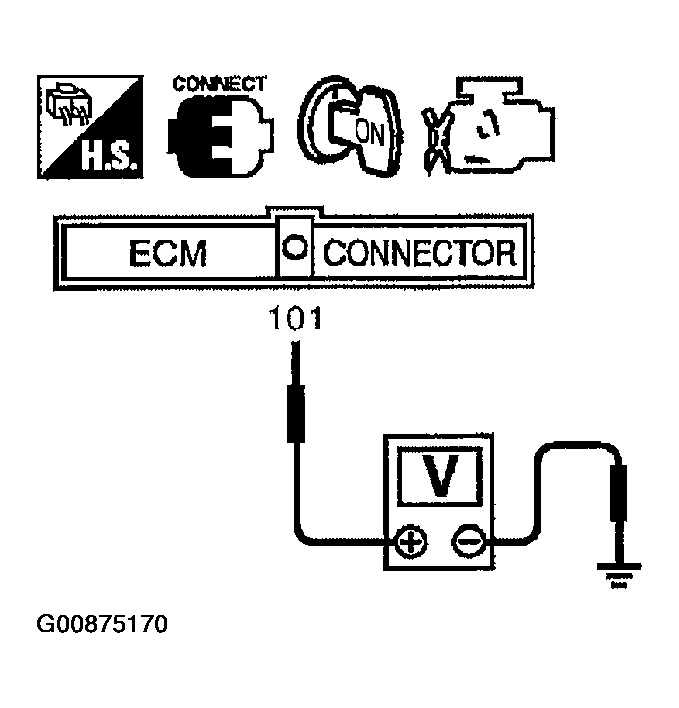

Fig 2: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : INSPECTION END .
NG : GO TO 13 .
