Component Inspection: Condenser-1
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect condenser-1 harness connector.

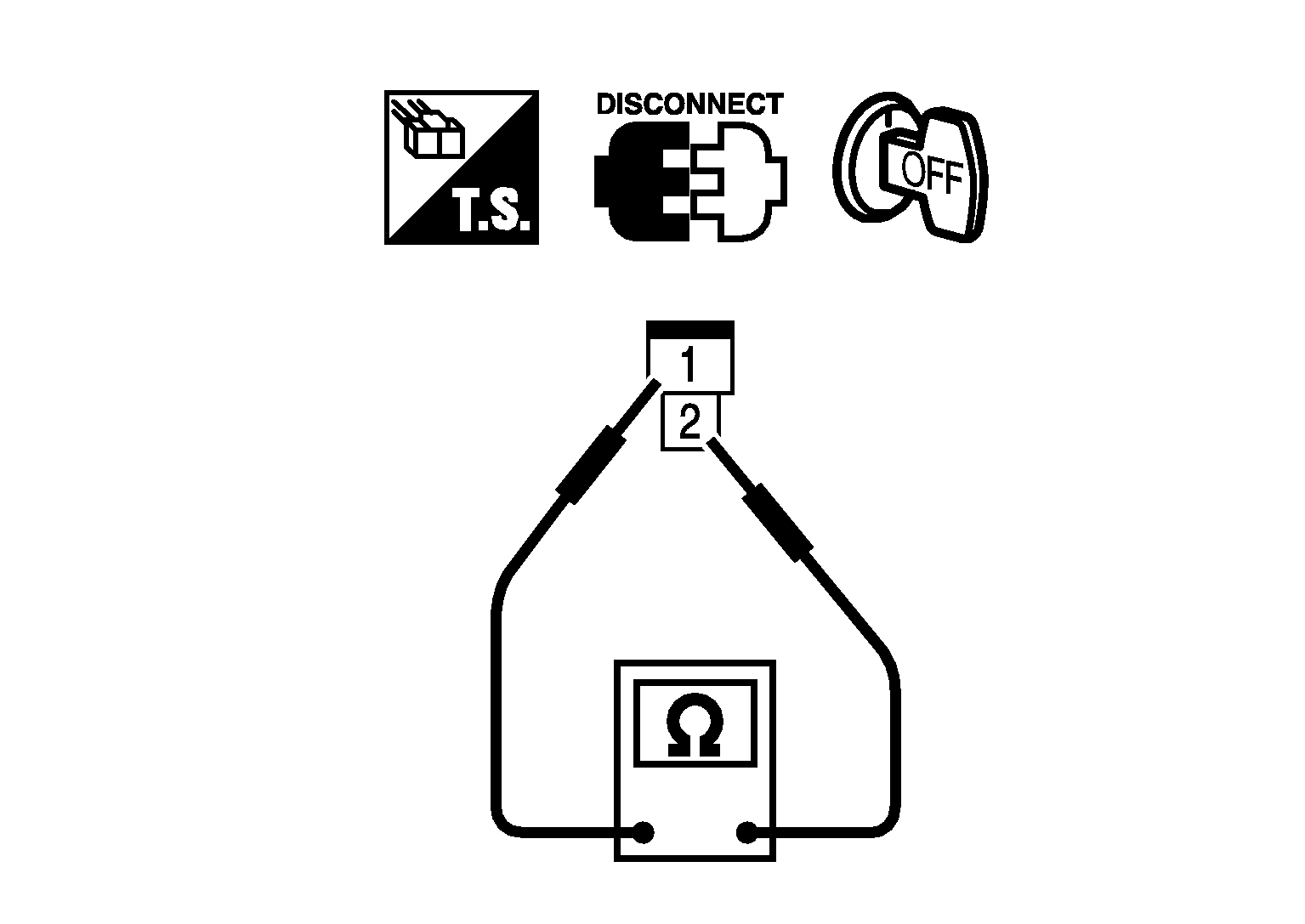

- Check resistance between condenser-1 terminals 1 and 2.
Courtesy of NISSAN MOTOR CO., U.S.A. RESISTANCE CHART
| Resistance |
Above 1 MΩ at 25°C (77°F) |
