Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

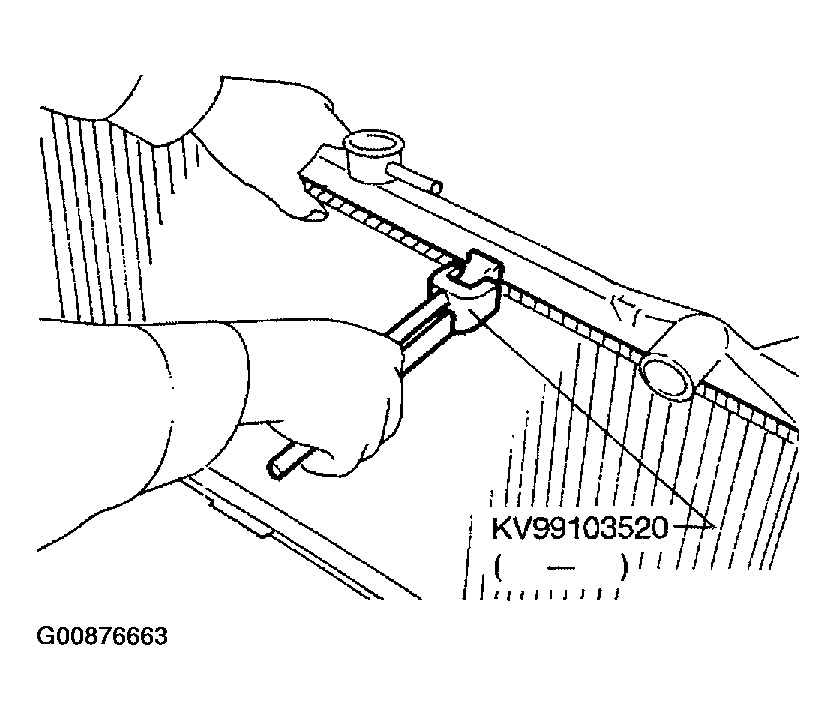

Remove the tank using Tool.

Fig 1: Disassembly (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

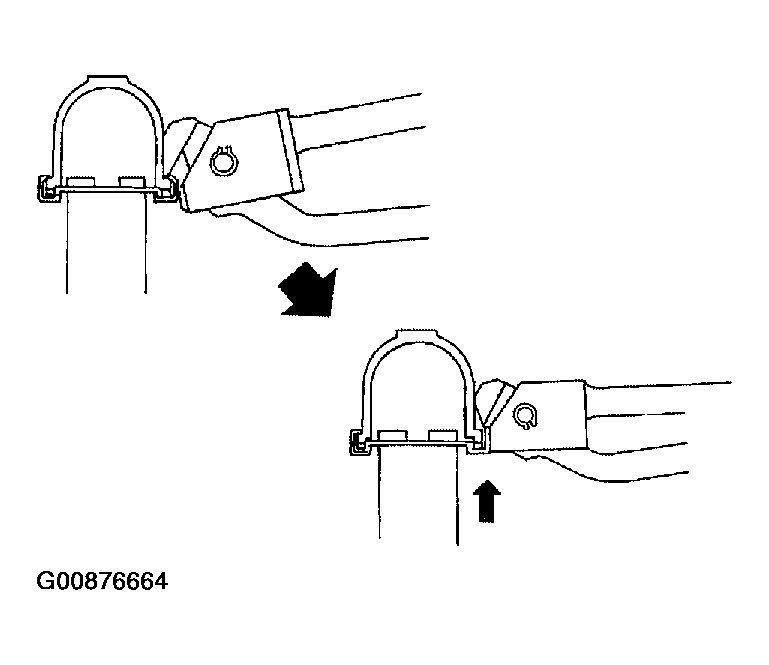

- Grip the crimped edge and bend it upwards so that Tool slips off.
  CAUTION: Do not bend excessively.

  Fig 2: Disassembly (2 Of 4)
  Courtesy of NISSAN MOTOR CO., U.S.A.

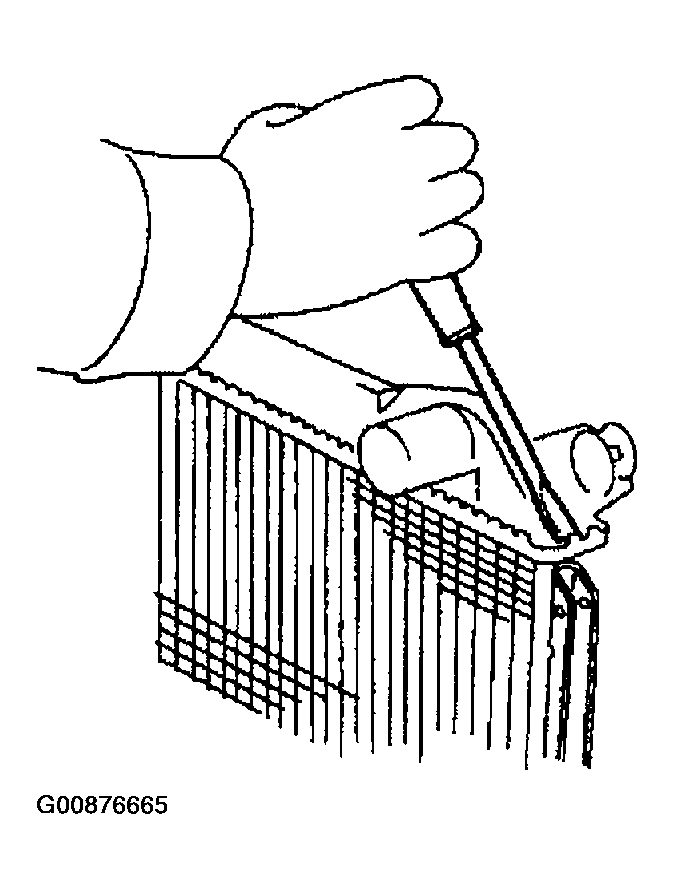

- In areas where the Tool cannot be used, use a screwdriver to bend the edge up.
  CAUTION: Be careful not to damage tank.
Remove sealing rubber.

Fig 3: Disassembly (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

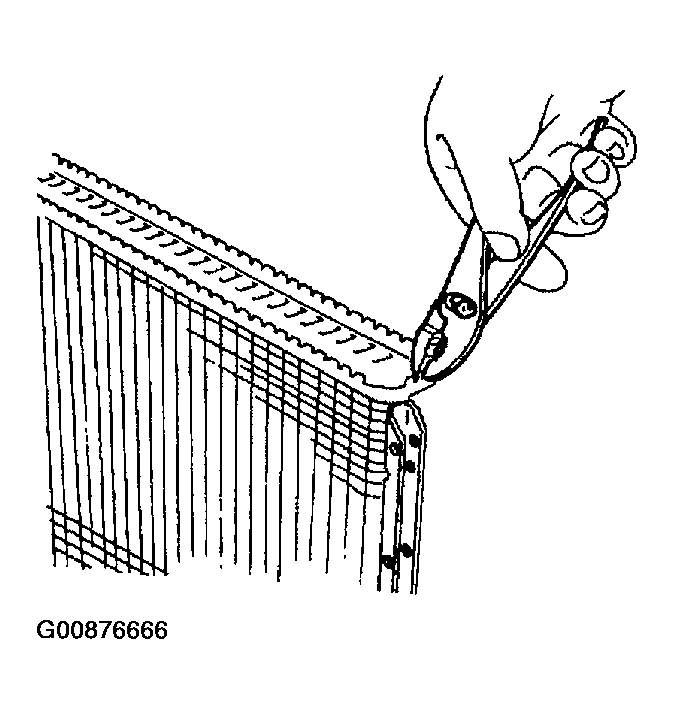

Using pliers, make sure the edge stands straight up.
Remove oil cooler from tank (if equipped).

Fig 4: Disassembly (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
