Adjustable Pedal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the accelerator and brake pedals to the frontmost position.
  2. Turn the ignition switch OFF and disconnect the negative battery terminal.
  3. Remove the heater and cooling unit assembly. Refer to "HEATER & COOLING UNIT ASSEMBLY - MTC , HEATER & COOLING UNIT ASSEMBLY - ATC ".
  4. Disconnect the adjustable brake pedal cable from the adjustable pedal electric motor.

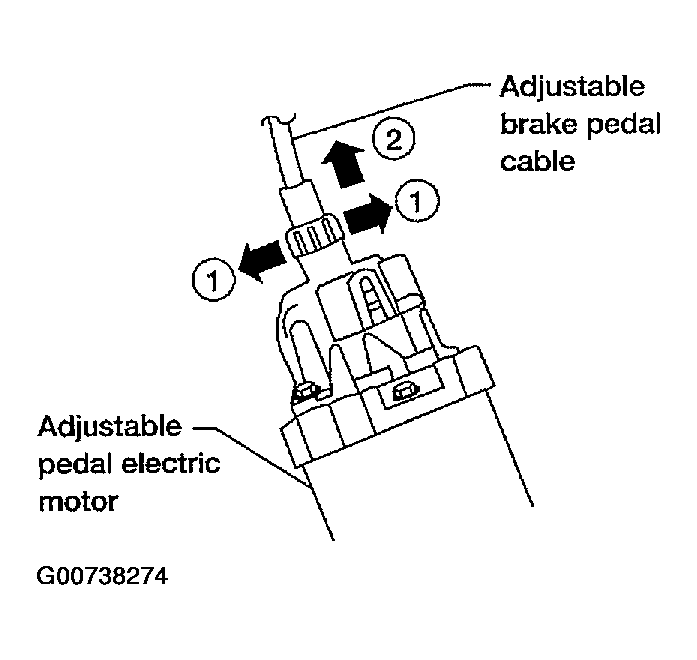

    Fig 1: View Of Adjustable Pedal Electric Motor & Components
    G00738274Courtesy of NISSAN MOTOR CO., U.S.A.
    • Unlock (1) then pull (2) the adjustable brake pedal cable to disconnect it from the adjustable pedal electric motor as shown.
  5. Disconnect the adjustable pedal electric motor electrical connector.
  6. Disconnect the accelerator position sensor electrical connector.
  7. Remove the upper and lower accelerator pedal nuts.
  8. Remove the adjustable accelerator pedal assembly.
    CAUTION:
    • Do not disassemble the pedal assembly. Do not remove the accelerator pedal position sensor from the pedal bracket.
    • Avoid damage from dropping the accelerator pedal assembly during handling.
    • Keep the accelerator pedal assembly away from water.
  9. Disconnect the adjustable accelerator pedal cable from the adjustable accelerator pedal.

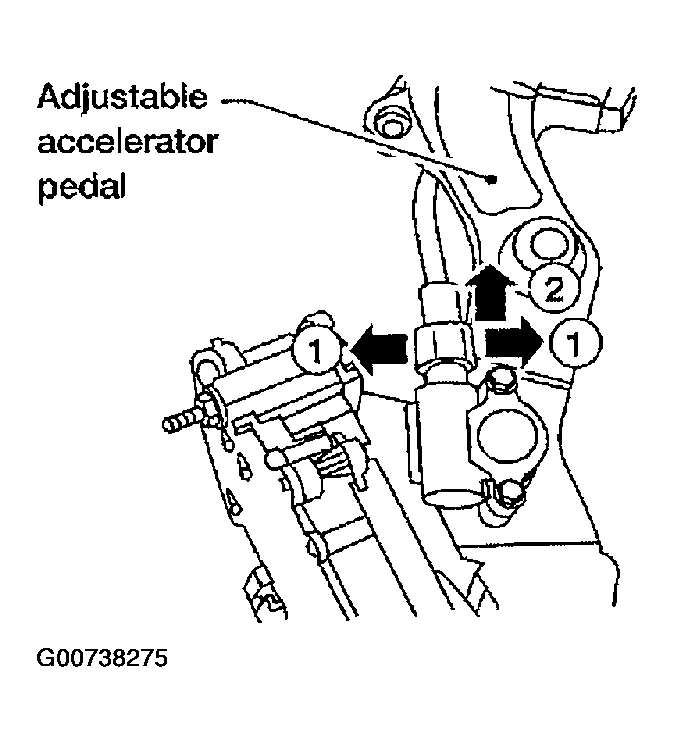

    Fig 2: Identifying Adjustable Accelerator Pedal Components
    G00738275Courtesy of NISSAN MOTOR CO., U.S.A.
    • Unlock (1) then pull(2) the adjustable accelerator pedal cable to disconnect it from the adjustable accelerator pedal as shown.
    NOTE: The rear view of the adjustable accelerator pedal is shown for clarity.
  10. Remove the adjustable pedal electric motor from the adjustable accelerator pedal bracket.
  11. Installation is in the reverse order of removal.
    • Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.
    • Check the accelerator pedal adjustable feature for smooth operation. There should be no binding or sticking when adjusting the accelerator pedal forward or backward.
CAUTION: Whenever the harness connector of the accelerator pedal position sensor has been disconnected, perform the "Accelerator Pedal Released Positioning Learning". Refer to "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
